G0803 (Mfd. Since 09/15)
-15-

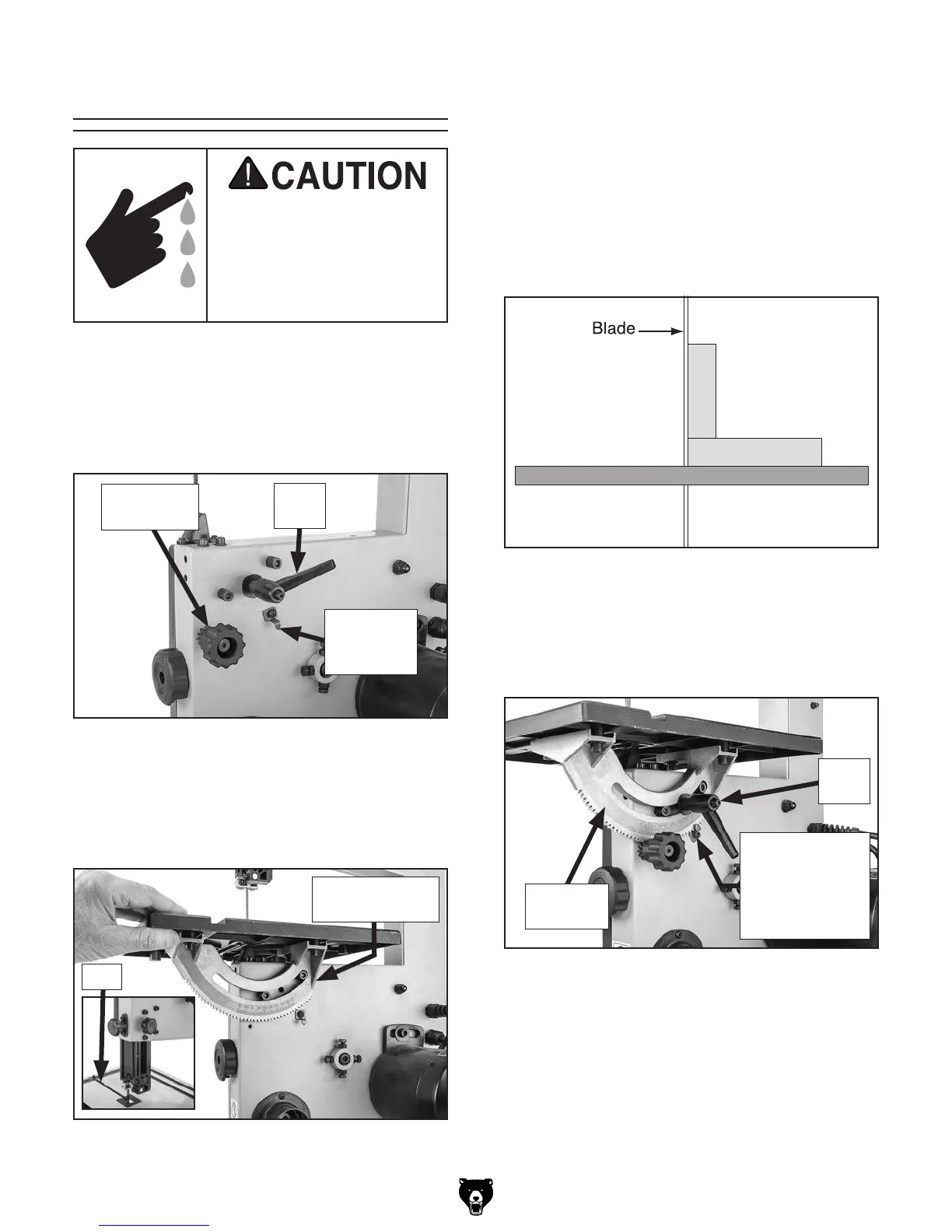

Assembly
LACERATION HAZARD!
Bandsaw blades and some
sheet metal parts are
sharp. Wear heavy leather
gloves while handling to
reduce risk of being cut.
To assemble bandsaw:
1. Remove table tilt lock lever and adjustment
knob, then loosen indicator and position it
down, out of the way (see Figure 10).
Figure 10. Location of table controls that must
be removed or adjusted.
2. Slide gap in table around blade, and mount
table/trunnion assembly to main saw body as
shown in Figure 11.
3. Re-install adjustment knob and lock lever. Do
not fully tighten yet.
4. Completely raise upper blade guide assem-
bly, then place a 90° square flat on table,
against side of blade.
5. Use adjustment knob to tilt table until square
is flat against side of blade, as illustrated in
Figure 12.
Adjustment
Knob
Lock
Lever
Table
Square
Figure 12. Using a square to adjust table
perpendicular to the side of blade.
Figure 13. Table tilt controls re-installed.
Table Tilt
Scale
Indicator
Aimed At "0"
When Table
Perpendicular
to Blade
6. Use lock lever to secure table perpendicular
to blade, then aim indicator to "0" on table tilt
scale and tighten screw (see Figure 13).
Indicator
Positioned
Down
Figure 11. Table/trunnion positioned on saw.
Table/Trunnion
Assembly
Gap
Lock
Lever
To Next Page
