Grizzly G0803 User Manual

G0803 (Mfd. Since 09/15)
-49-
LED-
Bandsaw Body
Work Lamp
120V Motor
5-15 Plug
120VAC
Ground
Ground
Ground
Hot
Neutral
Ground
LED Driver
LED-5V700
Hopestar
120V ~ 5.5W
E337681
Gorbo
XCK-017,10(4) A
250V 6A
ON/OFF Switch
KEDU HY18
250V 12A
Lamp Switch
Run Capacitor
CBB60 30uF
250VAC

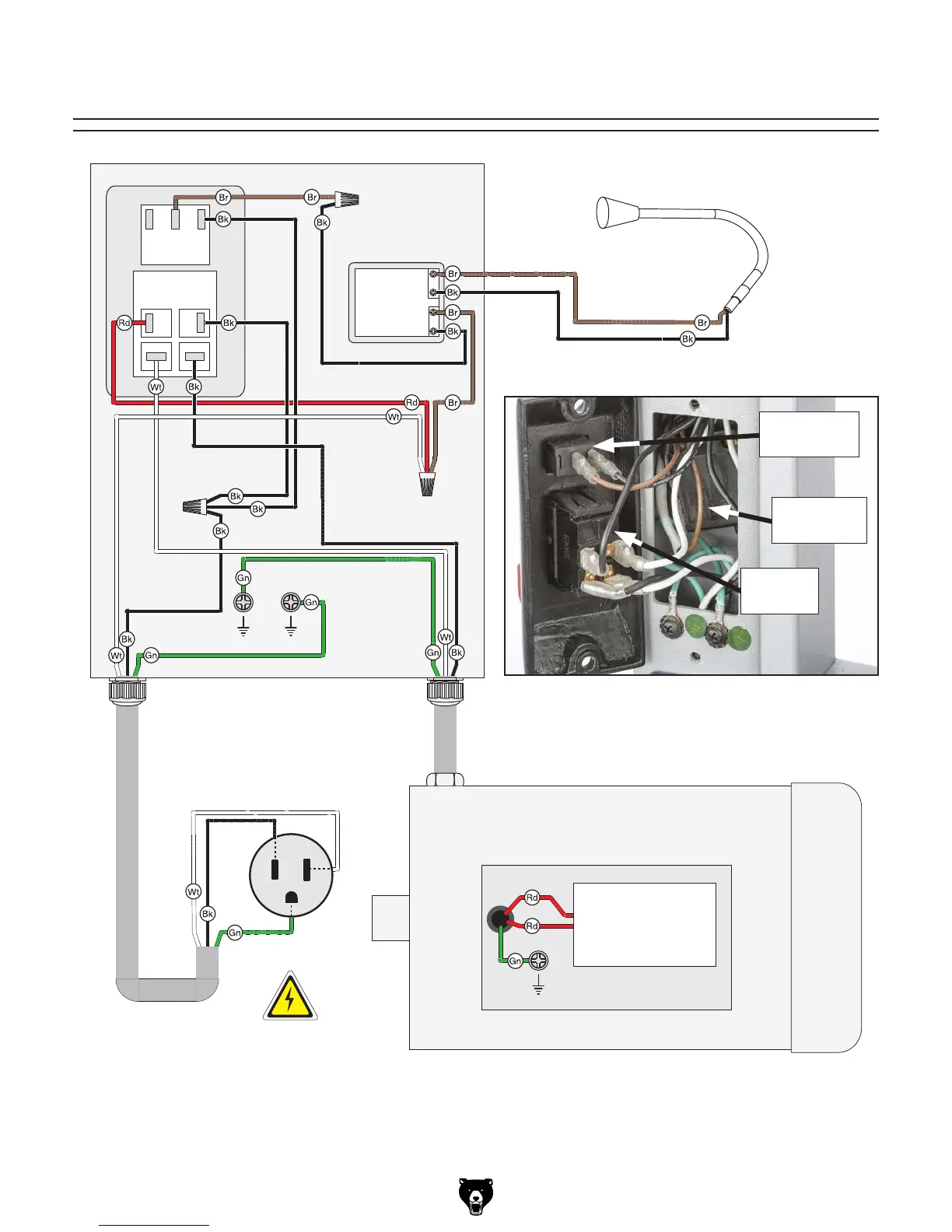

Wiring Diagram
Figure 60. Electrical component location.
Work Lamp
Driver
ON/OFF
Switch
Work Lamp
Switch
