-4-
G0803 (Mfd. Since 09/15)
Controls &
Components

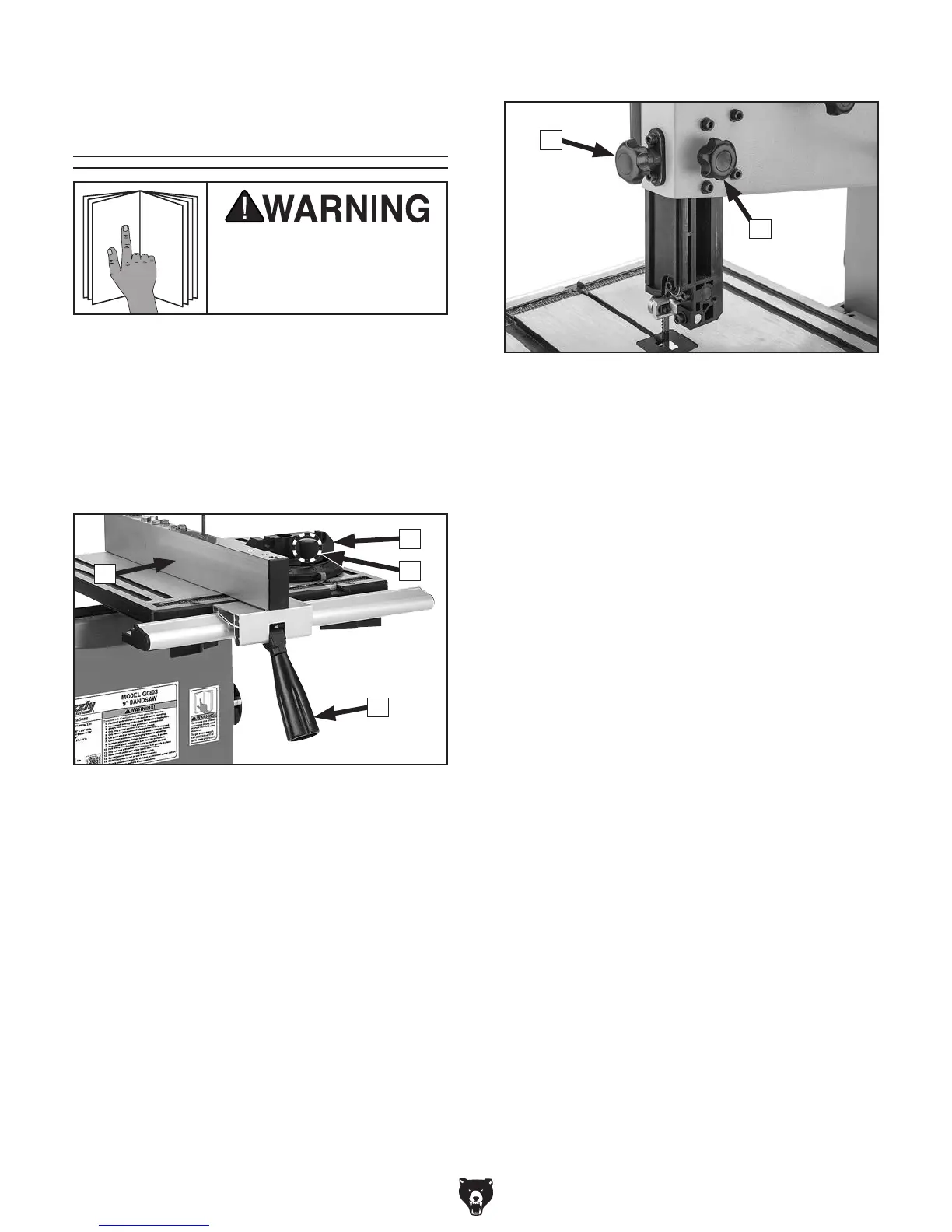

Refer to Figures 1–4 and the following descrip-
tions to become familiar with the basic controls
and components of this machine. Understanding
these items and how they work will help you
understand the rest of the manual and stay safe
when operating this machine.
To reduce your risk of
serious injury, read this
entire manual BEFORE
using machine.
Guide Post
Figure 2. Guide post controls.
E
F
Fence and Miter Gauge
E. Guide Post Adjustment Knob: Rotate
to adjust height of blade guides above
workpiece.
F. Guide Post Lock Knob: Secures height of
blade guides.
Figure 1. Fence and miter gauge controls.
A
D
A. Fence: Used for ripping, resawing, or cutting
tenons. distance from blade determines width
of cut.
B. Miter Gauge: Used for cross cuts. Can be
adjusted 60° left or right.
C. Miter Gauge Lock Knob: Secures angle
position of miter gauge.
D. Fence Lock Handle: Secures fence position.
B
C
