Checking/Adjusting
Belt Tension
To ensure optimum power transmission from the
motor to the blade, the belt must be in good condi-
tion and operate under proper tension.
Belt tension should be checked at least every
month—more often if the bandsaw is used daily. If
the belt shows signs of cracks, fraying, and exces-
sive wear, replace it as instructed in Replacing
Belt on Page 43.
Checking Belt Tension
1. DISCONNECT MACHINE FROM POWER!
2. Open lower wheel cover.
3. Check belt condition and deflection. The belt
is properly tensioned if there is approximately
1
⁄4" deflection. Deflection is checked by push-
ing belt with moderate pressure, as shown in
Figure 50, and noting how much it moves.
— If the belt is not properly tensioned, per-
form the Tensioning Belt procedure.
Pulley
Deflection
Pulley

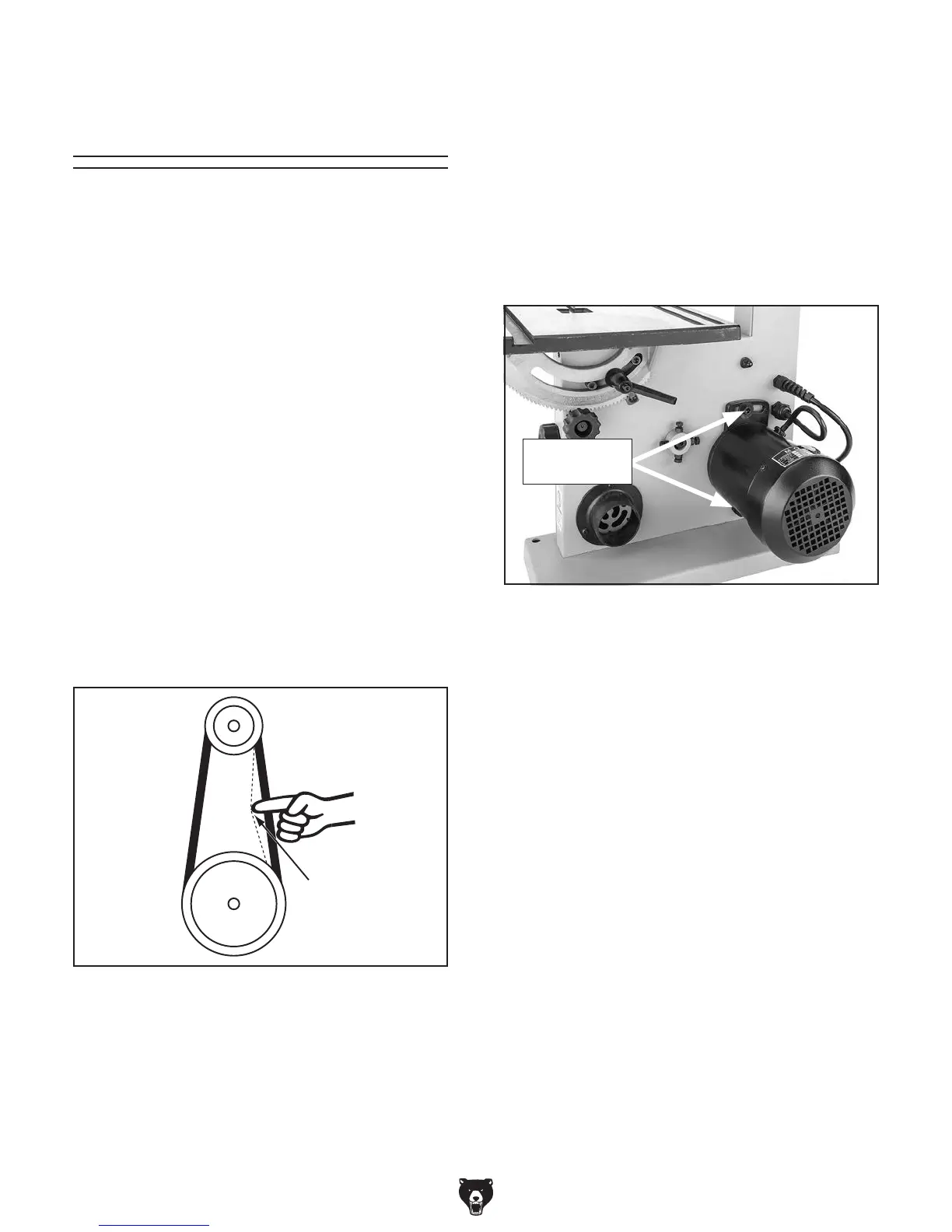

Figure 50. Checking belt tension.
Approximately
1
⁄4"
Tensioning Belt
Tool Needed Qty
Hex Wrench 6mm .............................................. 1
To properly tension the belt:
1. DISCONNECT MACHINE FROM POWER!
2. Loosen motor mount cap screws shown in
Figure 51.
3. Push motor to the right (as viewed from back
of machine) until you feel moderate tension,
then re-tighten both cap screws.
4. Check belt tension. If necessary, repeat
Steps 2–3 until there is approximately
1
⁄4"
deflection in the belt.
5. Close wheel cover.
Figure 51. Location of motor mount cap screws
used for adjusting belt tension.
