Table Tilt

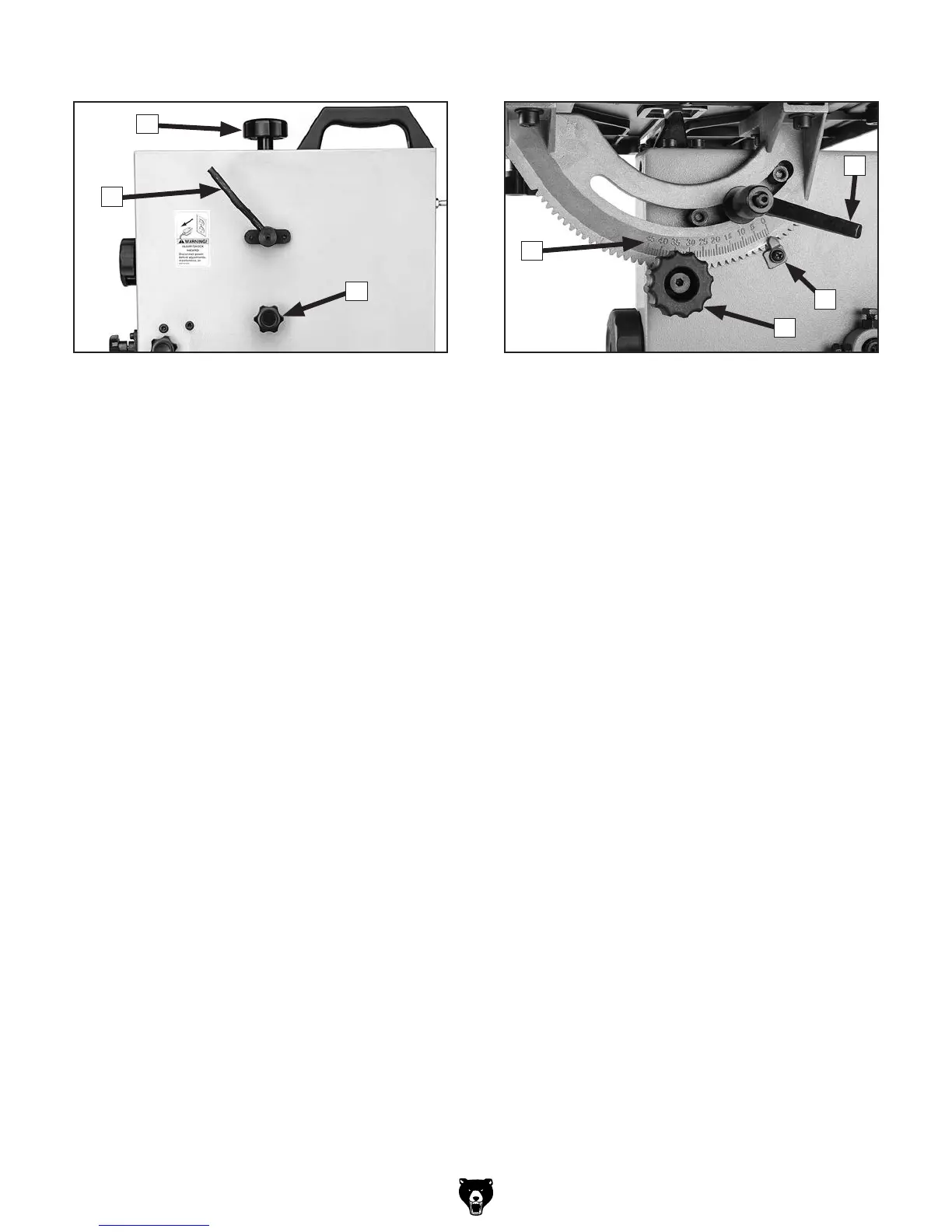

Figure 4. Table tilt controls.
K
J
M
L
Blade Tension & Tracking
Figure 3. Blade tension and tracking controls.
G
H
I
G. Blade Tension Adjustment Knob: Rotate
to adjust blade tension (refer to Page 20 for
more information).
H. Blade Tension Quick-Release Lever: Move
counterclockwise (as viewed from rear of
machine) to quickly release blade tension.
Move clockwise to re-tension blade.
I. Tracking Knob: Rotate to adjust blade track-
ing (refer to Page 17 for more information).
J. Trunnion w/Table Tilt Scale: Functions as
a tilting base for table. Graduated in degrees
from 0°–45° for setting bevel angle.
K. Table Tilt Lock Lever: Secures table tilt
angle setting.
L. Table Tilt Indicator: Shows angle of table
tilt.
M. Table Tilt Adjustment Knob: Rotate to
adjust angle of table tilt.
