-46-
G0803 (Mfd. Since 09/15)
Tools Needed Qty
Wrench or Socket 10mm ................................... 1
To adjust lower wheel laterally:
1. DISCONNECT MACHINE FROM POWER!
2. Remove fence and table from machine.
6. Rotate left and right adjustment bolts until
lower wheel is coplanar with upper wheel,
see Figure 58.
Requires lateral
adjustment
Viewed From Above
After lateral
adjustment
Straightedge

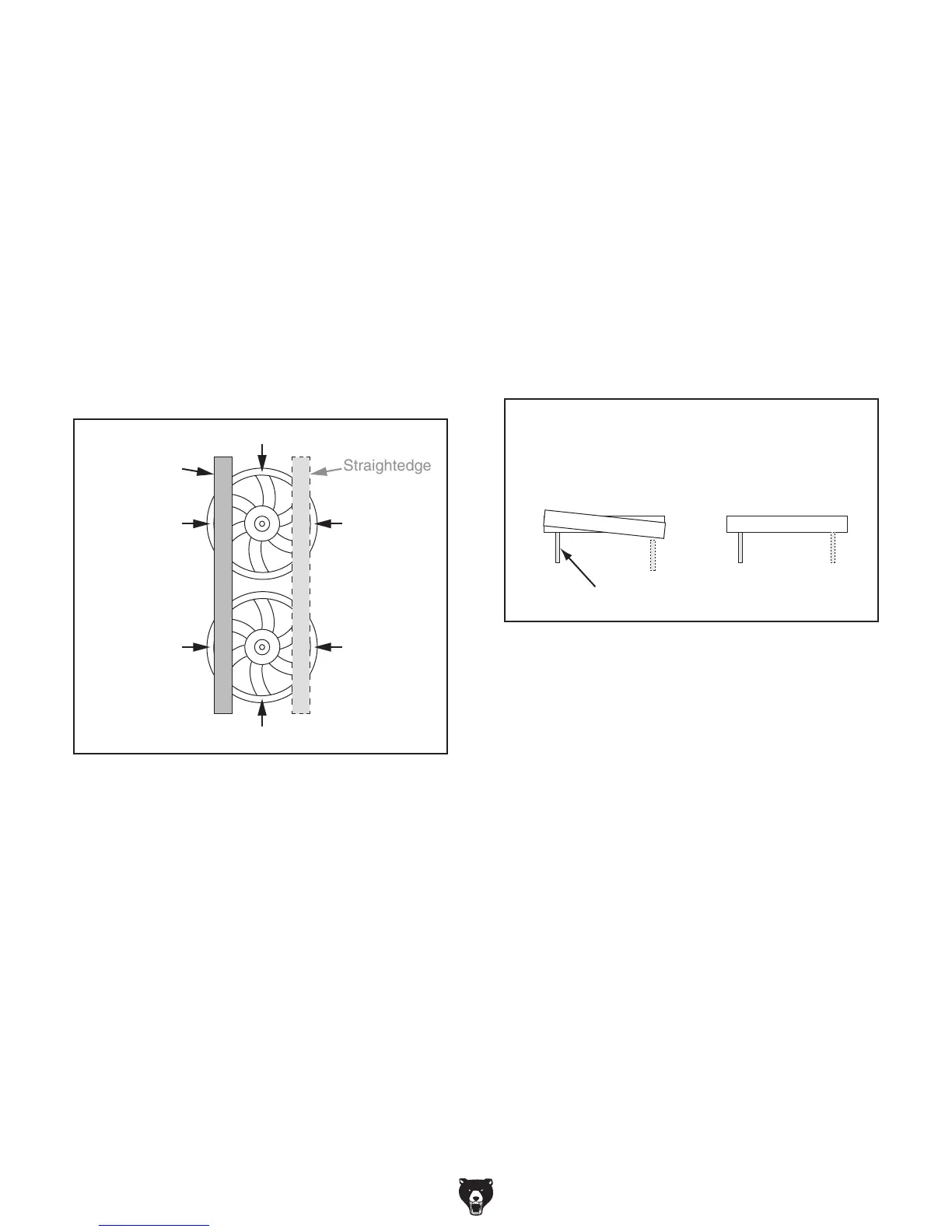

Figure 58. Before and after lateral wheel
alignment (viewed from above).
7. Re-tighten hex nuts loosened in Step 6.
3. Use a straightedge to check wheels at A
and B locations (see Figure 57). The wheels
should align
— If the wheels do not align, they require lat-
eral adjustment (see Figure 58); proceed
to Step 4.
B2 A2
A1 B1
Upper Wheel
Lower Wheel
Straightedge
Figure 57. Example of using a straightedge to
check lateral wheel alignment.
4. Mark upper and lower wheels with a pencil or
marker to indicate measuring locations (see
Figure 57).
Note: Marking the wheels ensures more
accurate results in case there are irregulari-
ties in the wheels.
5. Using 10mm wrench, loosen hex nuts on rear
left and right adjustment bolts (see Figure 56
on Page 45.
