-14-
Model G1033/X/Z (Mfd. Since 02/19)

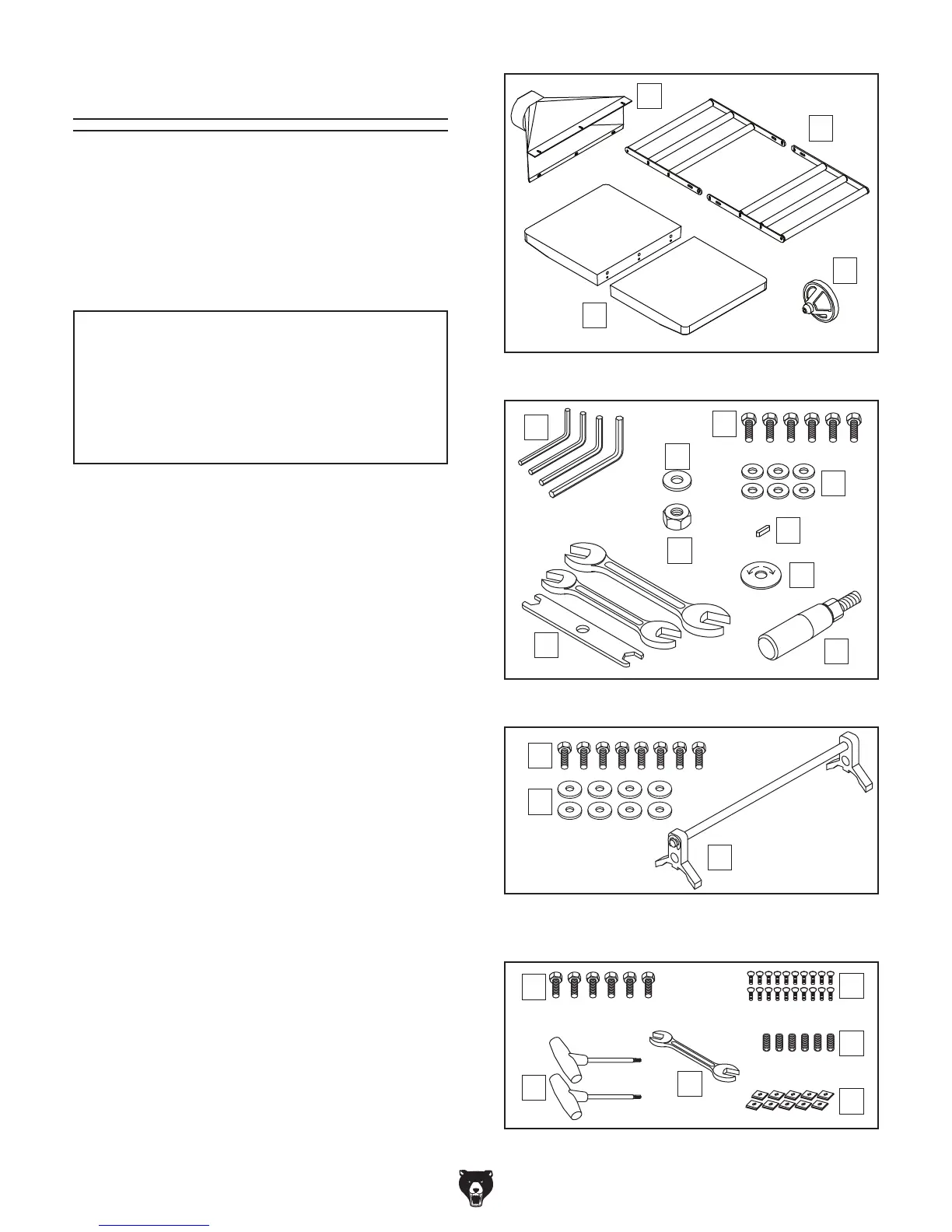

Inventory
B
D
C
E
Figure 5. Box inventory.
LOW HIGH
F
G
H
I
J
K
L
M
N
R
S
T
U
W
V
Figure 6. Tools and hardware.
Figure 8. Tools and hardware (G1033X only).
O
P
Q
Figure 7. Tools and hardware (G1033 & G1033Z
only).
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Box 1 (Figure 5) Qty
A. Planer Unit (Not Shown) ............................. 1
B. Dust Hood .................................................. 1
C. Roller Ext. Tables (G1033 & G1033Z) ........ 2
D. Cast-Iron Extension Tables (G1033X) ........ 2
E. Table Height Handwheel ............................ 1
Tools and Hardware (Figure 6)
F. Hex Wrenches 3, 4, 5, 6mm .................1 Ea.
G. Flat Washer 12mm (Handwheel) ................ 1
H. Hex Bolts M6-1 x 12 (Dust Hood) .............. 6
I. Flat Washers 6mm (Dust Hood) ................. 6
J. Key 4 x 4 x 10 (Handwheel) ....................... 1
K. LOW/HIGH Direction Label (Handwheel) ... 1
L. Handwheel Handle (Handwheel)................ 1
M. Wrenches 10/13, 12/14, 17/19mm .........1 Ea.
N. Hex Nut M12-1.75 (Handwheel) .................. 1
G1033 & G1033Z Only (Figure 7)
O. Hex Bolts M10-1.5 x 25 (Ext. Tables) ......... 8
P. Fender Washers 13mm (Ext. Tables) ......... 8
Q. Knife-Setting Jig Assembly ........................ 1
— Knife-Setting Jig Foot ............................. 2
— Knife-Setting Jig Shaft ............................ 1
— E-Clip 9mm ............................................. 4
G1033X Only (Figure 8)
R. Hex Bolts M8-1.25 x 25 (Ext. Tables) ......... 6
S. Flat Head Torx Screws #10-32 x
1
⁄2" ........ 20
T. Set Screws M8-1.25 x 12 (Ext. Tables) ...... 6
U. Indexable Carbide Inserts 15 x 15 x 2.5 ... 10
V. Wrench 8/10mm ......................................... 1
W. T-Handle Torx Wrenches T-25 ................... 2
The following items are shipped with your machine.
Lay these items out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
