-70-
Model G1033/X/Z (Mfd. Since 02/19)
BUY PARTS ONLINE AT GRIZZLY.COM!
Scan QR code to visit our Parts Store.

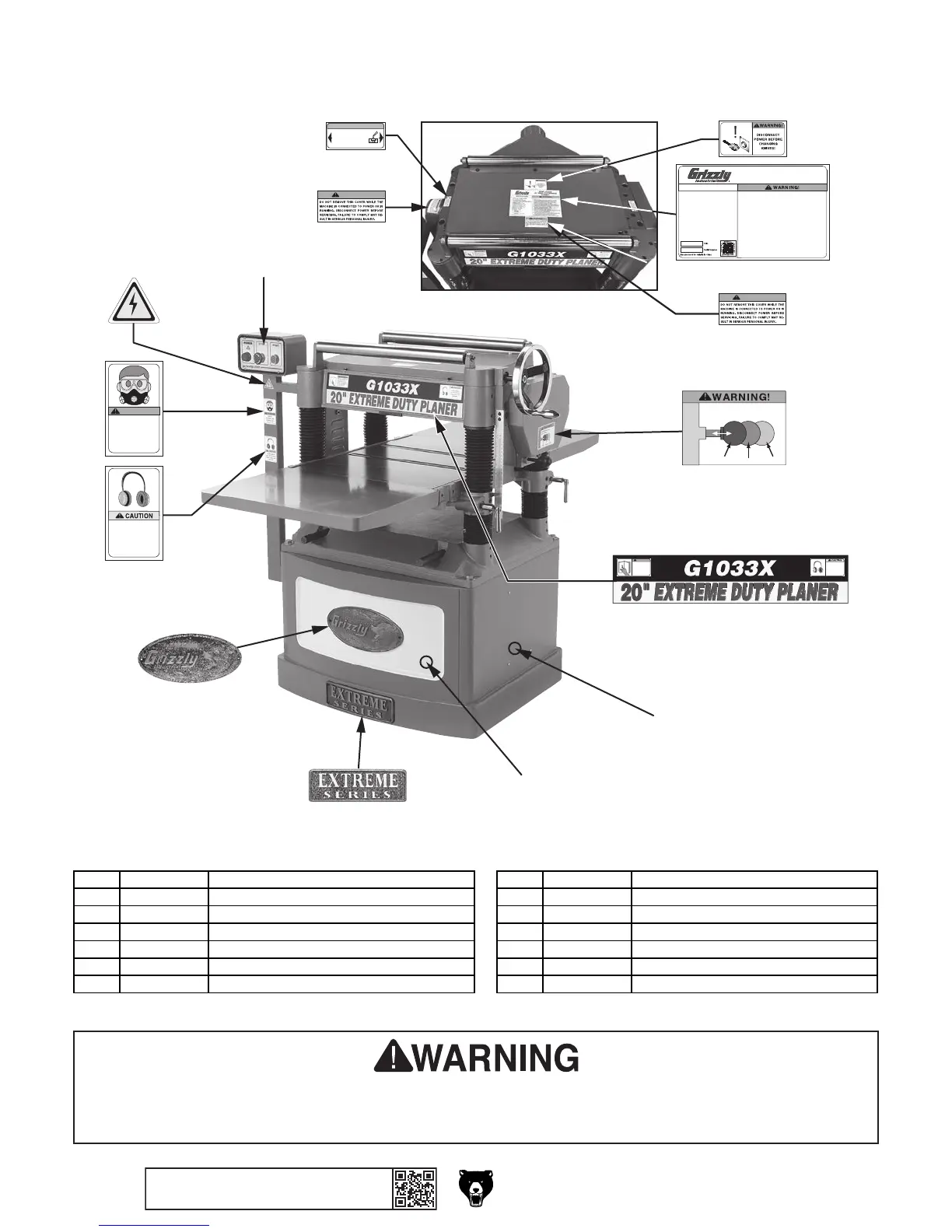

G1033X Labels & Cosmetics
Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes
off or becomes unreadable, the owner of this machine MUST replace it in the original location
before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com.
203
211
214
215
218
219
204
HEARING LOSS
HAZARD!
Always wear hearing
protection when
using this machine!
WARNING!
SAFETY
GLASSES AND
RESPIRATOR
REQUIRED!
To reduce risk of death
or serious injury, read
manual BEFORE using
machine.
To get a new manual, call
(800) 523-4777 or go to
www.grizzly.com.
WARNING!
HEARING LOSS
HAZARD!
Always wear
hearing protection
when using this
machine!
Only shift gearbox when
planer is running.
Neutral
28 FPM
16 FPM
WARNING!
NOTICE
Add oil to the
lubrication ports
every 30 hours
of operation.
WARNING!
SPECIFICATIONS
MODEL G1033X
20" SPIRAL CUTTERHEAD
PLANER
To reduce the risk of serious injury when using this machine:
1. Read and understand owner’s manual before operating.
2. Always wear approved safety glasses and respirator.
3. Disconnect power before changing blades, removing machine
components, or doing maintenance, service, or adjustments.
4. Only plug power cord into a grounded outlet.
5. Do not wear loose clothing, gloves, jewelry, or other items that
can get entangled. Tie back long hair and roll up sleeves.
6. Ensure machine is correctly setup before starting.
7. Never cut deeper than 1/8" on a single pass.
8. Never plane material smaller than 7" long, 3/4" wide, or 1/4" thick.
9. Do not allow hands or clothing to get pulled into cutting area while
feeding workpiece.
10. Stand clear of board ends during cutting operation.
11. Do not plane boards with cracks, loose knots, or other defects.
12. Knives are sharp! Use extreme caution when changing/adjusting.
13. Never reach into cutting area during machine operation.
14. Do not operate when tired or under influence of drugs or alcohol.
15. Do not expose to rain or use in wet locations.
16. Prevent unauthorized use by children or untrained users;
restrict access or disable machine when unattended.
Motor: 5 HP, 220V, 1-Phase, 60Hz, 30A
Maximum Depth of Cut per Pass: 1/8"
Minimum Stock Thickness: 1/4"
Minimum Stock Length: 7"
Maximum Cutting Height: 8-5/8"
Maximum Cutting Width: 20"
Feed Rates: 16, 20 FPM
Cutterhead Speed: 5000 RPM
Number of Cuts per Minute: 20,000
Cutterhead: 3-1/4" Dia, 4-Spiral
Number of Indexable Cutters: 96
Cutter Size: 15 x 15 x 2.5mm
Replacement Cutters: H9893 (10-Pack)
Weight: 875 Lbs.
205
206
205
212V2
208V2
209 217
207
REF PART # DESCRIPTION REF PART # DESCRIPTION
203 P1033X203 GRIZZLY NAMEPLATE 211 P1033X211 RESPIRATOR/GLASSES WARNING
204 P1033X204 MODEL NUMBER LABEL 212V2 P1033X212V2 MACHINE ID LABEL V2.02.19
205 P1033X205 WARNING LABEL-DO NOT REMOVE COVER 214 P1033X214 EAR PROTECTION WARNING
206 P1033X206 LUBRICATION NOTICE 215 P1033X215 EXTREME SERIES PLATE
207 P1033X207 DISCONNECT POWER LABEL 217 P1033X217 CONTROL PANEL LABEL
208V2 P1033X208V2 GEARBOX SHIFT WARNING V2.02.19 218 P1033X218 TOUCH-UP PAINT, GRIZZLY GREEN
209 P1033X209 ELECTRICITY LABEL 219 P1033X219 TOUCH-UP PAINT, GRIZZLY PUTTY
