Model G1033/X/Z (Mfd. Since 02/19)
-17-

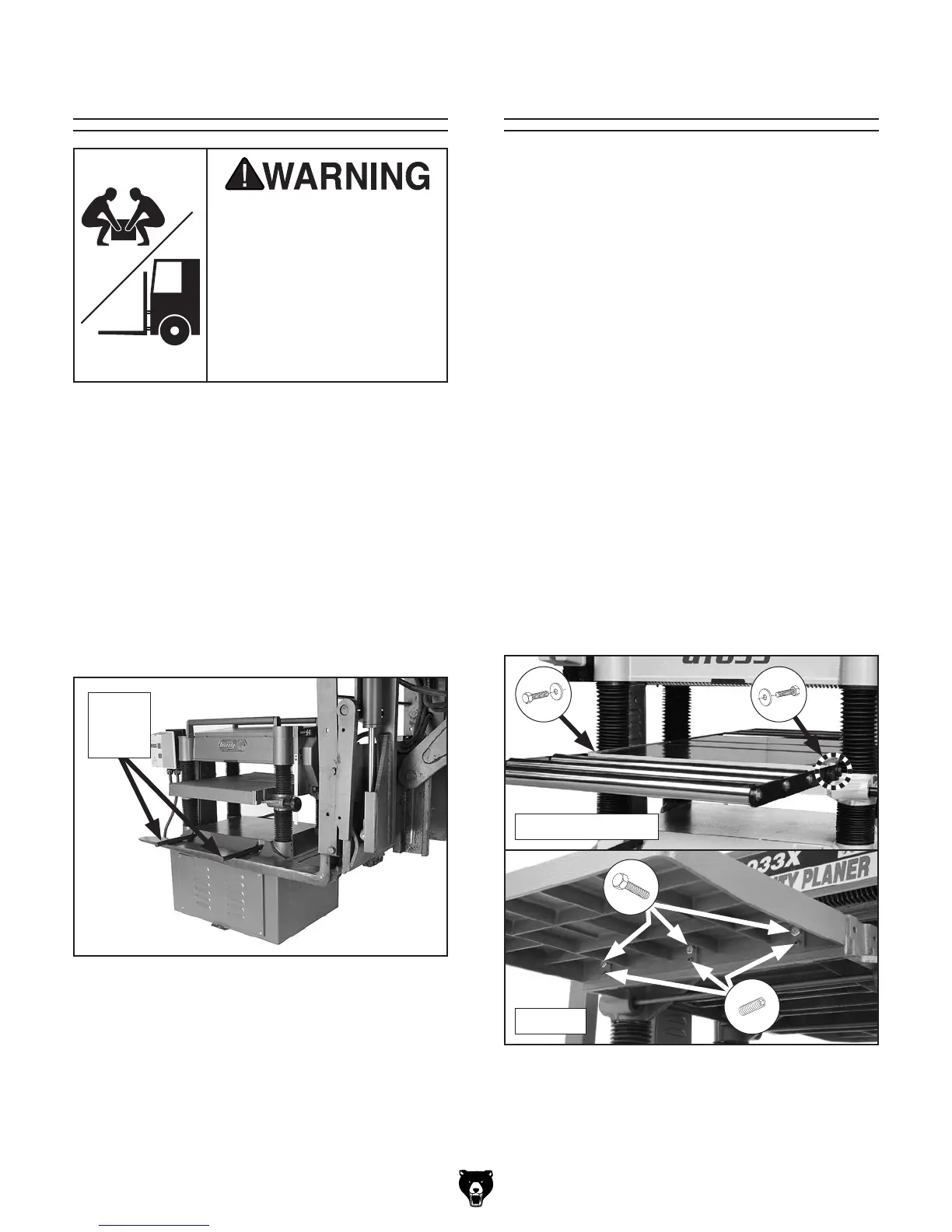

Lifting & Placing Assembly
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup
listed items. To ensure the assembly process
goes smoothly, first clean any
parts that are cov-
ered or coated in heavy-duty rust preventative (if
applicable).
To assemble planer:
1. G1033 & G1033Z: Attach each roller exten-
sion table to planer table with (4) M10-1.5 x
25 hex bolts and (4) 13mm fender washers
(see Figure 12). Do not fully tighten hex bolts
at this time.
G1033X: Attach each cast-iron extension
table to planer table with (3) M8-1.25 x 25
hex bolts (see Figure 12). Do not fully tighten
hex bolts at this time.
2. G1033X: Thread (3) M8-1.25 x 12 set screws
into each extension table at locations shown
in Figure 12.
Figure 12. Extension table mounting locations.
G1033 & G1033Z
x 3
x 3
G1033X
x 2
x 2
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting machine or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this machine.
Figure 11. Example of lifting planer with forklift.
Lifting
Bars
(2 of 4)
The planer is equipped with four lifting bars that
extend in order to lift and place the planer.
To lift and place the planer, extend the lifting bars
and use a forklift to lift the machine off the pallet,
as shown in Figure 11, then set the planer down
in a suitable location and return the lifting bars to
their original position.
Tip: When positioning lift forks, place shop rags
or cardboard between forks and cabinet stand to
avoid scratching paint.
