-18-
Model G1033/X/Z (Mfd. Since 02/19)
3. G1033 & G1033Z: Using a straightedge as a
guide, position extension tables so they are
in plane with main table, then fully tighten hex
bolts from Step 1 (see Figure 13).
G1033X: Using a straightedge as a guide,
rotate set screws from Step 2 until extension
tables are in plane with main table, then fully
tighten hex bolts from Step 1 (see Figure 13).
Note: Be aware that bed rollers will give you
a false reading if they are raised above table.
Move them down or work around them when
leveling extension wings (refer to Bed Roller
Height on Page 25 for more information).
8. G1033 & G1033Z: Assemble knife-setting jig
(see Figure 16).
a. Snap (2) 9mm E-clips into inner notches
on knife-setting jig shaft.
b. Slide (2) knife-setting jig feet onto ends of
shaft.
c. Snap (2) 9mm E-clips into outer notches
on ends of shaft to secure feet.

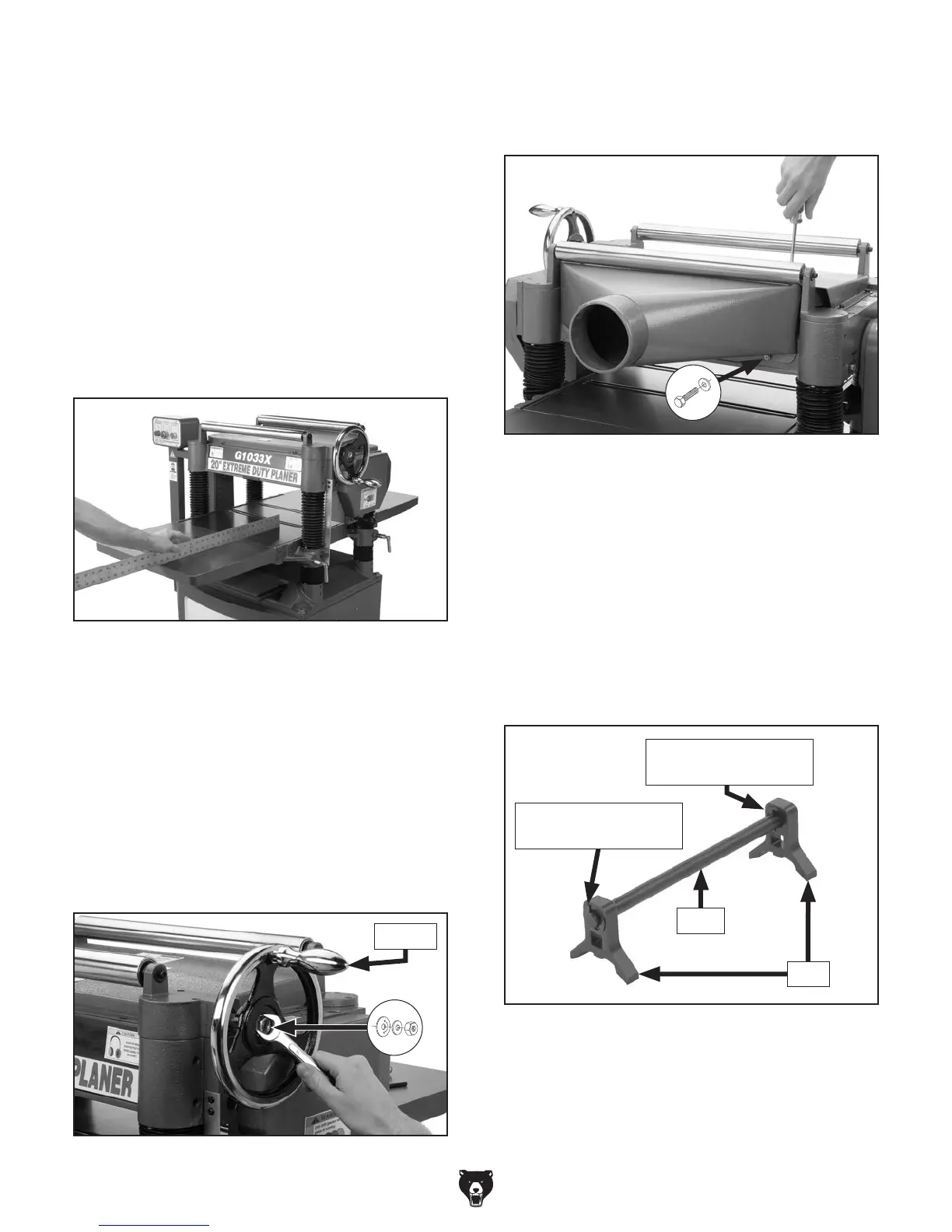

Figure 13. Leveling extension table (G1033X).
4. Insert 4 x 4 x 10 key into keyway on
handwheel shaft.
5. Thread handle into rim of handwheel and
tighten with wrench (see Figure 14).
6. Line up notch in handwheel bore with key,
slide handwheel onto shaft, then slide
handwheel direction label onto shaft, and
secure with M12-1.75 hex nut and 12mm flat
washer (see Figure 14).
Figure 14. Installing handwheel on shaft.
Handle
LOW HIGH
Figure 15. Installing dust hood.
7. Attach dust hood to planer with (6) M6-1 x
12 hex bolts and (6) 6mm flat washers (see
Figure 15).
x 6
Figure 16. Example of assembled knife-setting
jig components.
Feet
Shaft
E-Clip Snapped Into
Inner Notch (1 of 2)
E-Clip Snapped Into
Outer Notch (1 of 2)
