7. Jack Screws: Insert hex wrench into access
holes in cutterhead (see Figure 27), and
rotate jack screws to raise or lower knife until
it barely touches center pad of knife-setting
jig with all legs of jig still firmly on cutterhead,
then snug gib bolts enough to hold knife in
place without fully tightening gib bolts (see
Figure 28).
Springs: Insert hex wrench into access holes
in cutterhead (see Figure 27), and remove
jack screws. Push down on knife jig until all
legs of jig are firmly on cutterhead and knife
just touches center pad of jig, then tighten gib
bolts just enough to hold knife in place (see
Figure 28).
Note: Do not fully tighten gib bolts yet.

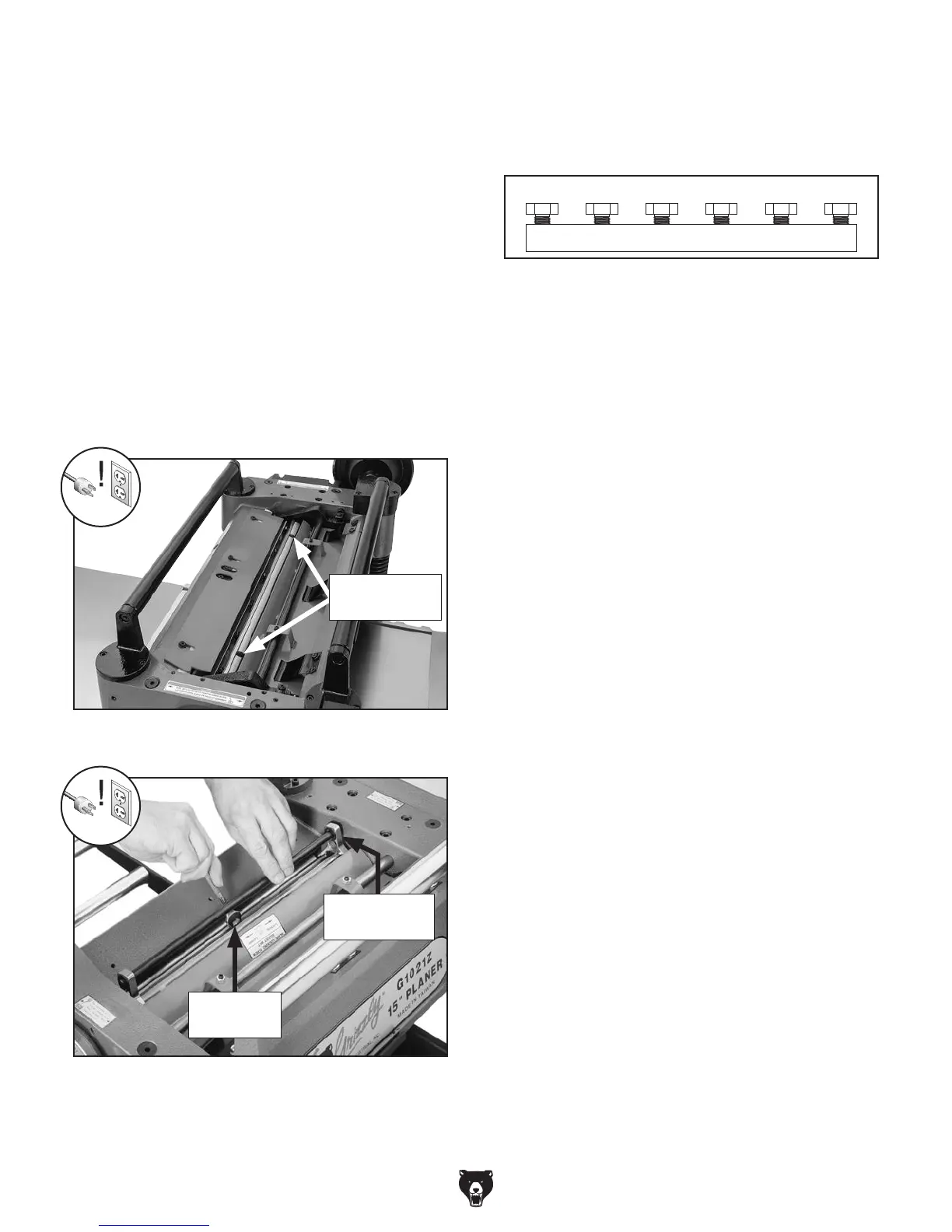

Figure 28. Example of using knife-setting jig to
set knife height.
Figure 27. Example of jack screw access holes
in cutterhead.
Jack Screw
Access Holes
Knife-Setting
Jig
Tightening
Gib Bolt
8. Incrementally snug gib bolts in an even
manner, starting at middle and working your
way to ends by alternating left and right,
as illustrated.
2135 4 6
Figure 29. Gib bolt tightening sequence.
9. Repeat Step 8, snugging gib bolts a little
more.
10.
Repeat Step 8, this time fully tightening all
gib bolts.
11. Repeat Steps 4–8 for remaining knives.
