G1037Z 13" Planer/Moulder -9-

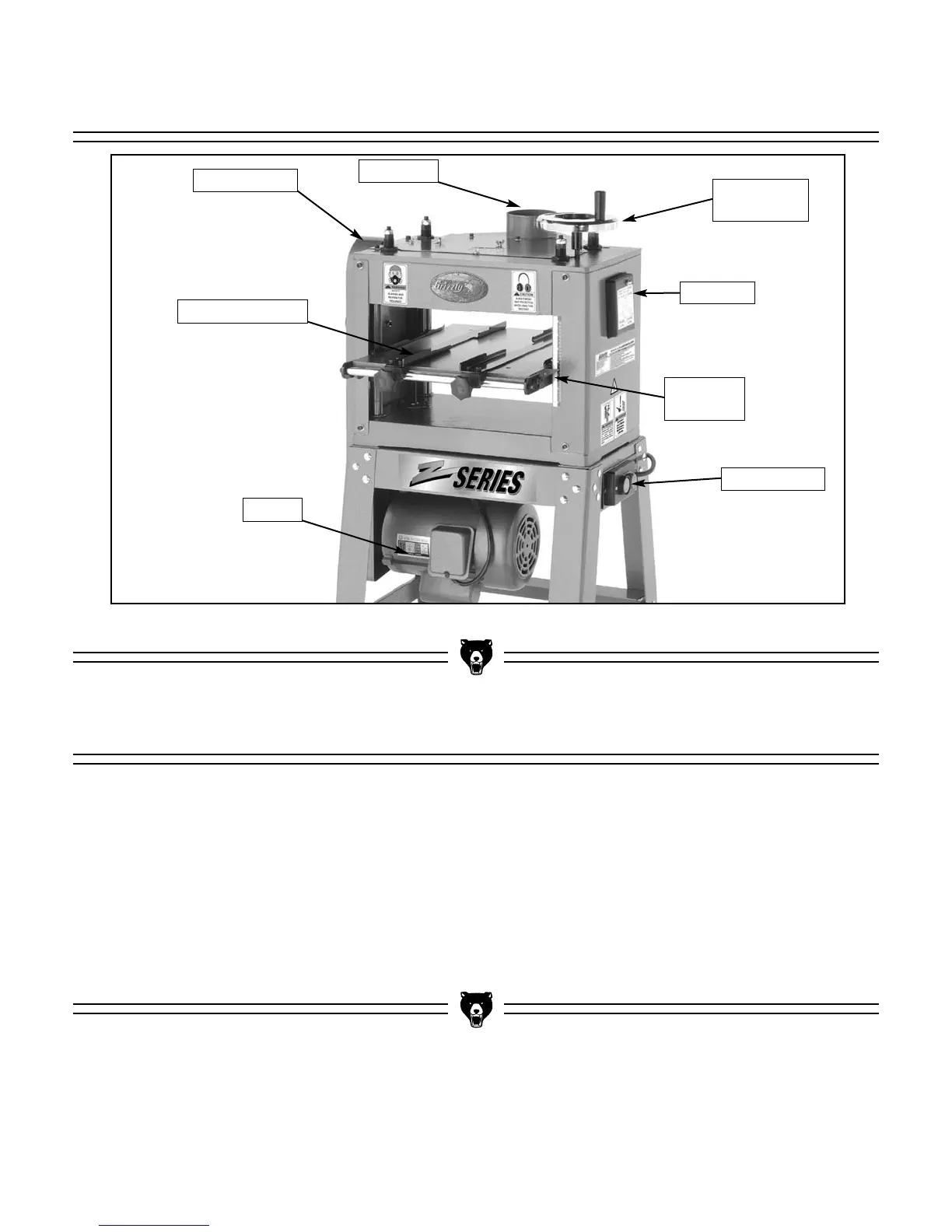

Figure 3. Machine features.
Power Switch
V-Belt Cover
Dust Hood
Motor
Moulding Fences
Height
Handwheel
Thickness
Scale
Gear Box
Work Table: The wood moves through the plan-
er/moulder on the work table.
Infeed and Outfeed Rollers: Powered rollers
that move the wood through the planer/moul-
der.
Cutterhead: The cutterhead holds the knives
and spins at 5000 rpm.
Dust Hood: Funnels wood dust and chips into an
attached dust collection system.
Gibs: Metal strips that hold the planer/moulder
knives in place.
Gib Bolts: Secures the gib to the knife to keep it
in place.
Snipe: A gouge at the end of the board.
