Grizzly G1037Z User Manual

-14-
Loose hair and clothing
could get caught in
machinery and cause
serious personal injury.
Keep loose clothing
rolled up and long hair
tied up and away from
machinery.
Sharp edges on metal
parts may cause person-
al injury. Examine the
edges of all metal parts
before handling.
This section covers the basic assembly and
adjustment instructions needed to begin opera-
tion. Complete the assembly in the order provid-
ed in this manual and then read the remaining
portion of the manual before attempting any type
of operation.
Your safety is important! Please follow the
warnings below during this entire section:
Disconnect power to
the machine during the
entire assembly
process. Failure to do
this may result in seri-
ous personal injury.

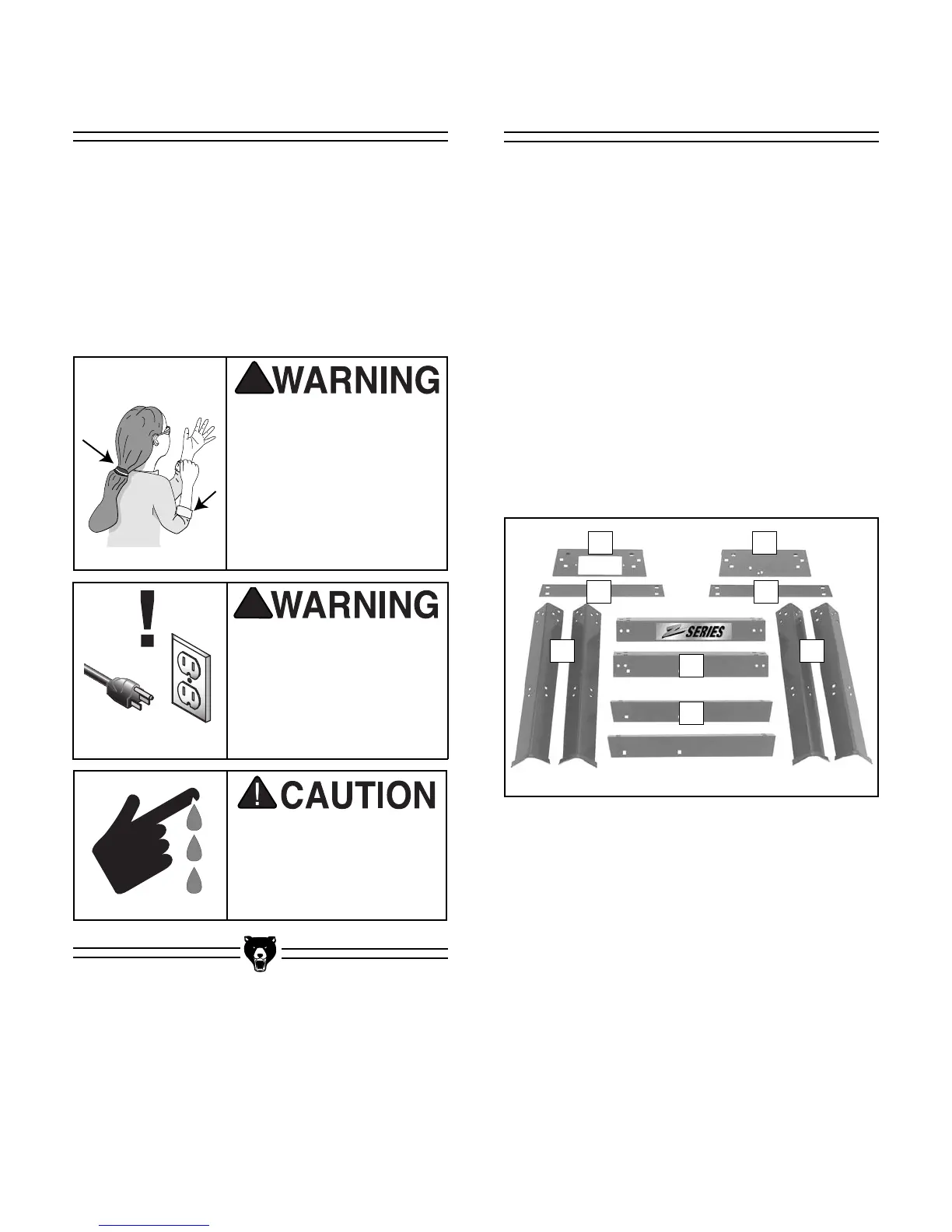

Figure 6. Stand Components.
AA
B B
C
D
FE
G1037Z 13" Planer/Moulder
Components and Hardware Needed: Qty
Leg E..................................................................2
Leg F..................................................................2
Lower End Braces..............................................2
Lower Side Braces ............................................2
Upper End Braces..............................................2
Upper Side Braces ............................................2
Motor Mount ......................................................1
Carriage Bolts
5
⁄16"-18 x
1
⁄2" ..............................44
Carriage Bolts
5
⁄16"-18 x
3
⁄4" ................................4
Hex Nuts
5
⁄16"-18 ..............................................48
Flat Washers
5
⁄16" ............................................48
Lock Washers
5
⁄16"..............................................4
Motor ..................................................................1
Tools Needed:
10/12mm Combo Wrench ..................................1
StandBeginning Assembly
