Grizzly G1037Z User Manual

G1037Z 13" Planer/Moulder -37-
Mounting Bolts
Dust Hood Bolts
Chip Guide Wing Nuts
Tools Needed:
Combo Wrench 10/12mm ..................................1
The chip deflector directs chips and dust into the
dust hood and prevents chips from falling back
into the planing area. It is an orange plastic plate
located under the top cover.
To adjust the chip deflector:
1. Disconnect the machine from the power
source!
2. Remove the three bolts called out in Figure 37
with a 12mm wrench and remove the dust
hood.
4. Position the chip deflector with a
1
⁄4" gap
between the knives and the deflector if the
planer/moulder is attached to a dust collec-
tion system. See Figure 38. (Use a
1
⁄8" gap if
you are not using a dust collector.) Make
sure the beveled edge of the deflector faces
the cutterhead.
Note—The chip deflector should be removed
when performing moulding operations.

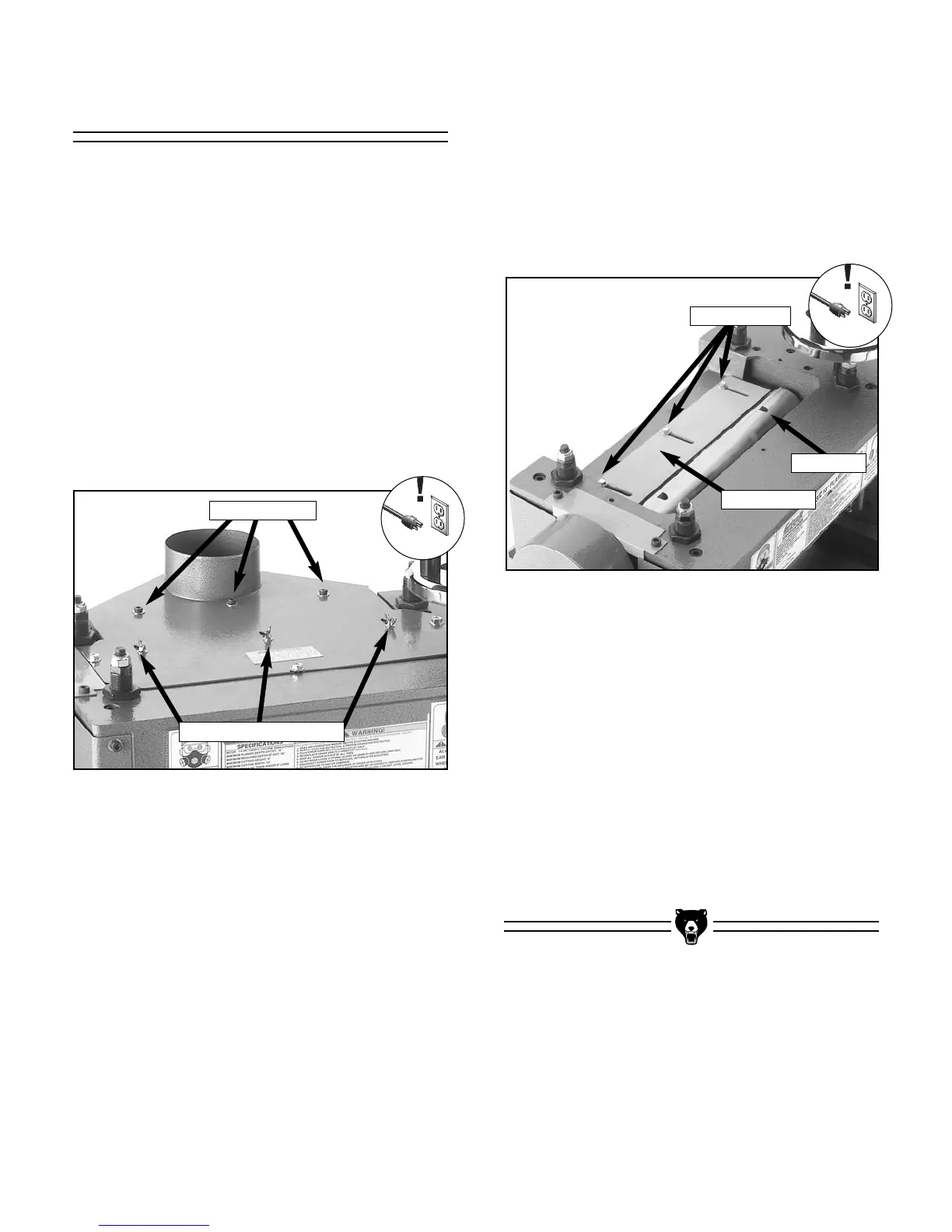

Figure 38. Chip deflector installed.
5. Tighten the screws securing the chip deflec-
tor.
6. Replace the dust hood assembly and tighten
the mounting bolts.
7. Loosen the wing nuts that hold the chip guide
called out in Figure 37. For planer knives,
slide the chip guide to the outfeed table side
of the slots. For moulding knives, slide the
chip guide to the infeed table side of the
slots.
8. Tighten the wing nuts to secure the chip
guide.
Figure 37. Removing the dust hood.
3. Loosen the bolts holding the chip deflector.
Cutterhead
Chip Deflector
Chip Deflector
