Grizzly G1037Z User Manual

-17-
Components and Hardware Needed: Qty
V-Belt ................................................................2
To check belt tension, push the V-belt at its mid-
point with moderate finger pressure. You should
be able to deflect each V-belt about
1
⁄2".
To install and tension the V-belt:
1. Loosen the motor mounting bolts.
2. Hook the belt on the lower pulley and roll the
belt onto the upper pulley. Move the belt to
the back pulley slot and install the second
belt.
3. Tension the the belt by prying on the motor
assembly with a wooden bar as shown in
Figure 12.

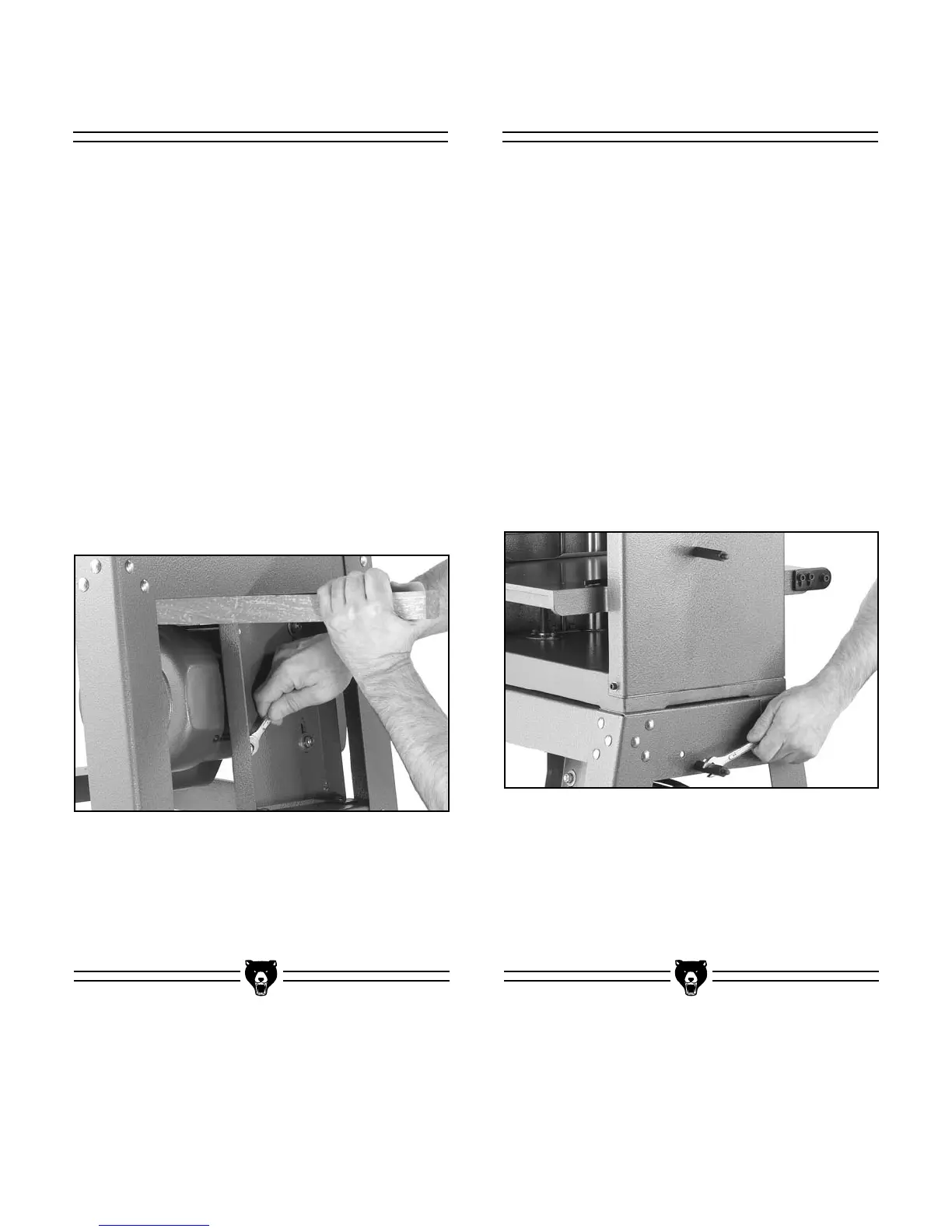

Figure 12. Tensioning belts.
4. Hold the tension with the wooden bar and
tighten the motor bolts.
5. Check the tension and repeat steps 2 & 3 if
necessary.
Components and Hardware Needed: Qty
Knob (Female) ..................................................2
Stud....................................................................2
Flat Washer
5
⁄16" ................................................2
Hex Nut
5
⁄16"-18 ..................................................2
Pulley Cover ......................................................1
Tools Needed:
10/12mm Combo Wrench ..................................2
The pulley cover is important to prevent personal
injury and to prevent damage to the V-belts
To install the pulley cover:
1. Thread the studs into the holes in the plan-
er/moulder unit and stand as shown in
Figure 13.
Figure 13. Installing studs
2. Secure the studs on the inside of the stand
with the hex nuts.
3. Place the pulley cover over the studs and
secure with the knobs.
G1037Z 13" Planer/Moulder
Pulley CoverV-Belts
