Growatt SPF 5000TL HVM User Manual

11

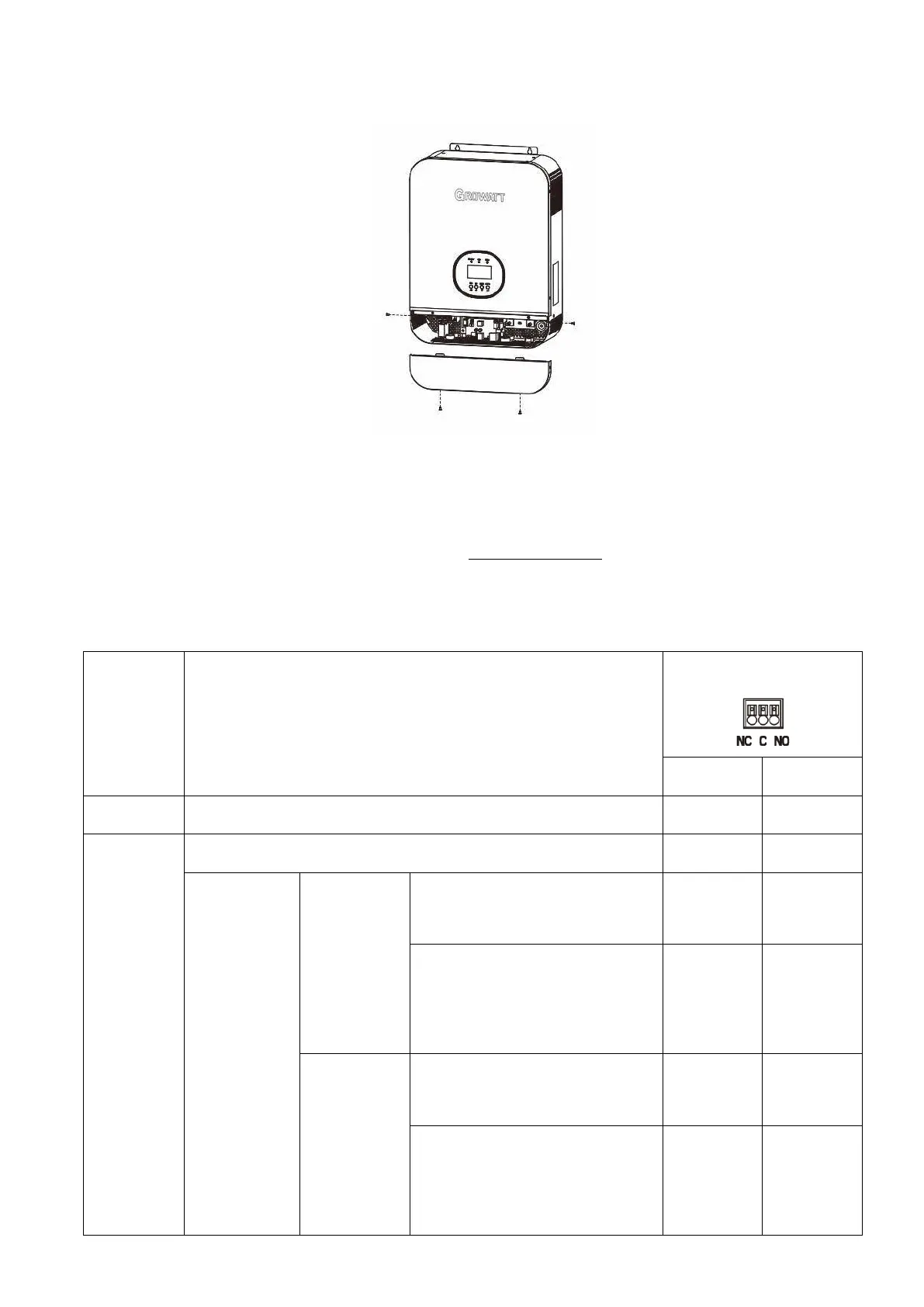

3.7 Final Assembly
After connecting all wiring, please put bottom cover back by screwing two screws as shown below.
3.8 Communication Connection
Please use supplied communication cable to connect to inverter and PC. Follow on-screen instruction to install
the monitoring software. For the detailed software operation, please check user manual of software. The
monitoring software is downloadable from our website www.ginverter.com.
3.9 Dry Contact Signal
There is one dry contact(3A/250VAC) available on the rear panel. It could be used to deliver signal to external device
when battery voltage reaches warning level.
Unit Status
Condition
Dry contact port:
NC & C
NO & C
Power Off
Unit is off and no output is powered
Close
Open
Power On
Output is powered from Utility
Close
Open
Output is
powered from
Battery or Solar
Program 01 set
as Utility first
Battery voltage (SOC)< Low DC
warning voltage(SOC)
Open
Close
Battery voltage(SOC) > Setting
value in Program 13 or battery
charging reaches floating stage
Close
Open
Program 01 is
set as SBU or
Solar first
Battery voltage (SOC)< Setting
value in Program 12
Open
Close
Battery voltage (SOC)> Setting
value in Program 13 or battery
charging reaches floating stage
Close
Open

Growatt SPF 5000TL HVM Specifications

General

Rated Power	5000W
Input Voltage	230VAC
Output Voltage	230VAC
Frequency	50/60Hz
Efficiency	93%
Battery Voltage	48V
Max. PV Array Power	6000W
Max. DC Voltage	450VDC
Number of MPPT Trackers	1
Max. Input Current	18A
Max. AC Output Current	21.7A
Max. Charging Current	80A
Max. Discharging Current	80A
Operating Temperature Range	-10°C to 50°C
Protection Degree	IP20
Cooling Method	Fan
Dimensions	330 x 485 x 135 mm
Communication	RS232, USB
MPPT Range	120-430VDC
