Growatt SPF 5000TL HVM User Manual

12
3.10 Parallel Installation (Only 4KVA/5KVA available)
3.10.1 Parallel Board Installation
(Following steps just for some cusomers have installed the inverter,but later need to increase the connection
function,so need to install the parallel board by themselves)
This installation steps are only applied to 4KVA/5KVA model.

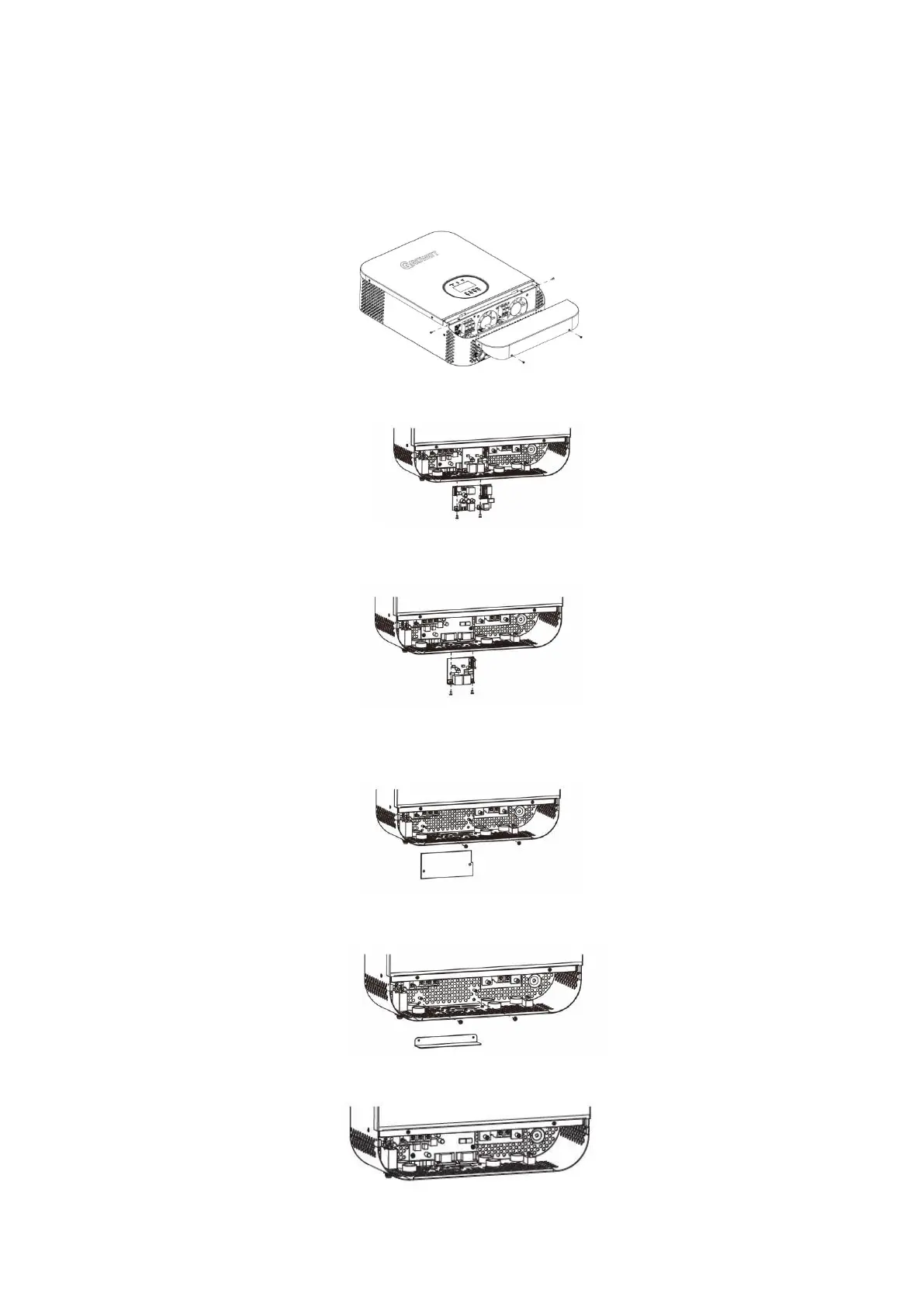

Step 1: Remove wire cover by unscrewing all screws.
Step 2: Remove communication board by unscrewing two screws as below chart.
Step 3: Remove Rs485 communication board by unscrewing two screws as below chart.
Step 4: Remove two screws as below chart and remove 2-pin and 14-pin cables. Take out the board under the
communication board.
Step 5: Remove two screws as below chart to take out cover of parallel communication.
Step 6: Install new parallel board with 2 screws tightly.

Growatt SPF 5000TL HVM Specifications

General

Rated Power	5000W
Input Voltage	230VAC
Output Voltage	230VAC
Frequency	50/60Hz
Efficiency	93%
Battery Voltage	48V
Max. PV Array Power	6000W
Max. DC Voltage	450VDC
Number of MPPT Trackers	1
Max. Input Current	18A
Max. AC Output Current	21.7A
Max. Charging Current	80A
Max. Discharging Current	80A
Operating Temperature Range	-10°C to 50°C
Protection Degree	IP20
Cooling Method	Fan
Dimensions	330 x 485 x 135 mm
Communication	RS232, USB
MPPT Range	120-430VDC
