Growatt SPF 5000TL HVM User Manual

35
6.0 Specifications

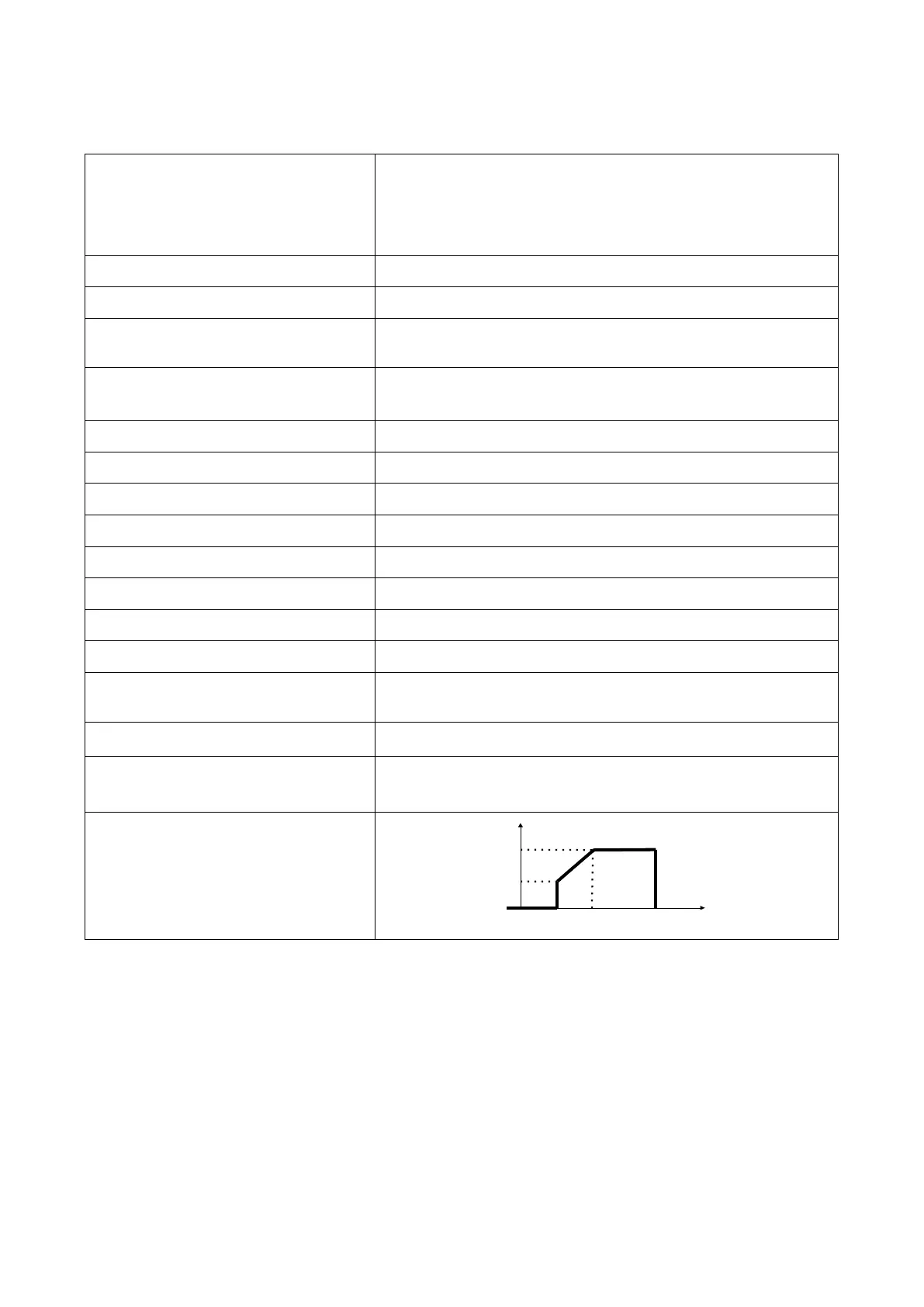

Table 1: Line Mode Specifications
INVERTER MODEL SERIES
SPF 2000TL SPF 4000TL
SPF 3000TL SPF 5000TL
Input Voltage Waveform
Sinusoidal (utility or generator)
Nominal Input Voltage
230Vac
Low Loss Voltage
170Vac±7V (UPS)
90Vac±7V (Appliances)
Low Loss Return Voltage
180Vac±7V (UPS)
100Vac±7V (Appliances)
High Loss Voltage
280Vac±7V
High Loss Return Voltage
270Vac±7V
Max AC Input Voltage
300Vac
Nominal Input Frequency
50Hz / 60Hz (Auto detection)
Low Loss Frequency
40±1Hz
Low Loss Return Frequency
42±1Hz
High Loss Frequency
65±1Hz
High Loss Return Frequency
63±1Hz
Output Short Circuit Protection
Line mode: Circuit Breaker
Battery mode: Electronic Circuits
Efficiency (Line Mode)
>95% ( Rated R load, battery full charged )
Transfer Time
10ms typical, 20ms Max@ Single
<30ms @ Parallel
Output power derating:
When AC input voltage drops to
170V, the output power will be
derated.
Output Power
Rated Power
20% Power
90V
170V
280V
Input Voltage

Growatt SPF 5000TL HVM Specifications

General

Rated Power	5000W
Input Voltage	230VAC
Output Voltage	230VAC
Frequency	50/60Hz
Efficiency	93%
Battery Voltage	48V
Max. PV Array Power	6000W
Max. DC Voltage	450VDC
Number of MPPT Trackers	1
Max. Input Current	18A
Max. AC Output Current	21.7A
Max. Charging Current	80A
Max. Discharging Current	80A
Operating Temperature Range	-10°C to 50°C
Protection Degree	IP20
Cooling Method	Fan
Dimensions	330 x 485 x 135 mm
Communication	RS232, USB
MPPT Range	120-430VDC
