13

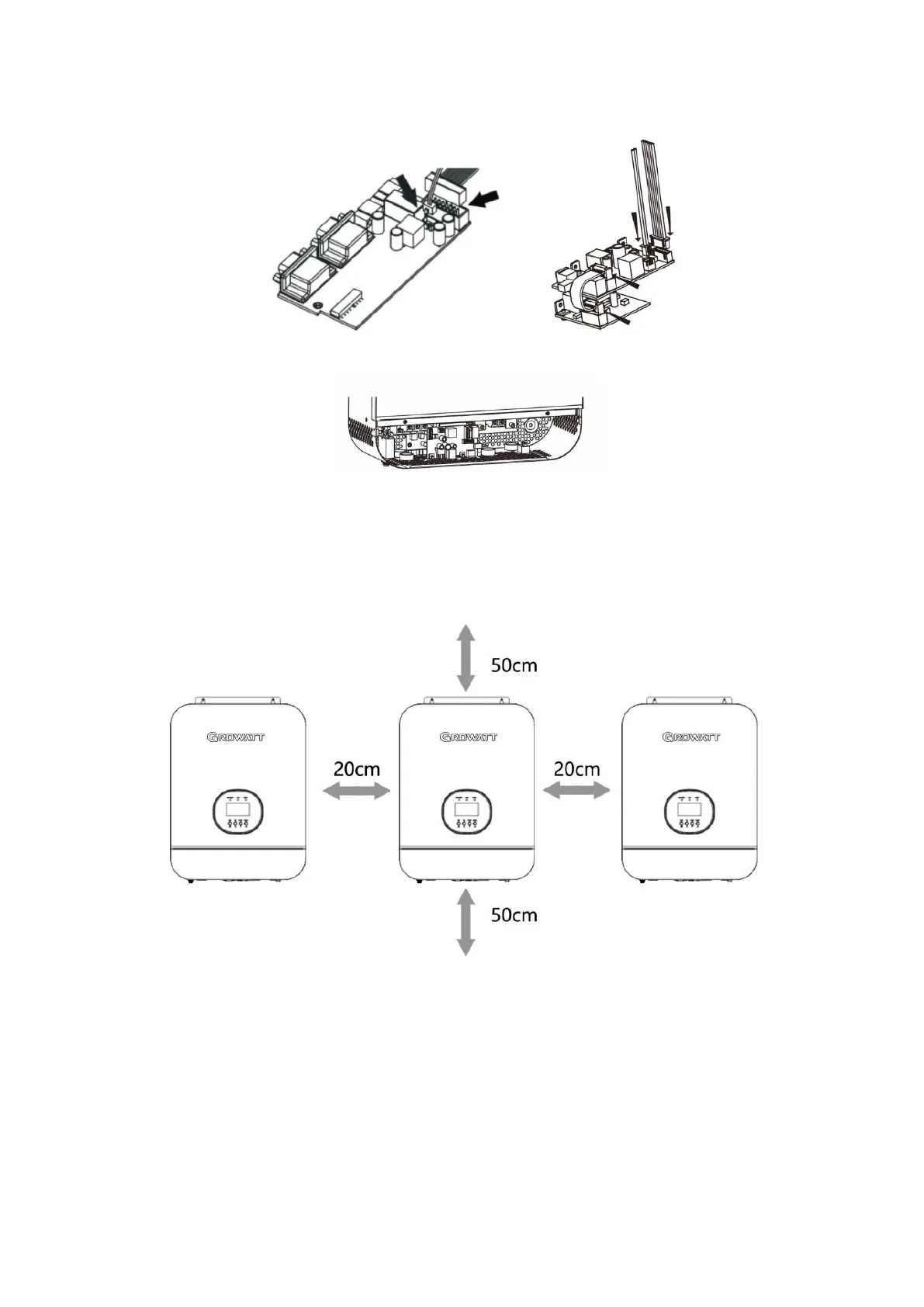

Step 7: Re-connect 2-pin and 14-pin to original position.
Parallel board Communication board
Step 8: Put communication board back to the unit.
Step 9: Put wire cover back to the unit. Now the inverter is providing parallel operation function.
3.10.2 Mounting the Unit
When installing multiple units, please follow below chart.
Note: For proper air circulation to dissipate heat, allow a clearance of approx. 20cm to the side and approx. 50 cm
above and below the unit. Be sure to install each unit in the same level.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Growatt SPF 5000TL HVM and is the answer not in the manual?

Growatt SPF 5000TL HVM Specifications

General IconGeneral
Rated Power5000W
Input Voltage230VAC
Output Voltage230VAC
Frequency50/60Hz
Efficiency93%
Battery Voltage48V
Max. PV Array Power6000W
Max. DC Voltage450VDC
Number of MPPT Trackers1
Max. Input Current18A
Max. AC Output Current21.7A
Max. Charging Current80A
Max. Discharging Current80A
Operating Temperature Range-10°C to 50°C
Protection DegreeIP20
Cooling MethodFan
Dimensions330 x 485 x 135 mm
CommunicationRS232, USB
MPPT Range120-430VDC
