3.10.3 Parallel Operation in Single phase(Only 4KVA/5KVA available)
WARNING:
All inverters must be connected to the same batteries and ensure each group of cables from the
inverters to the batteries in the same length.

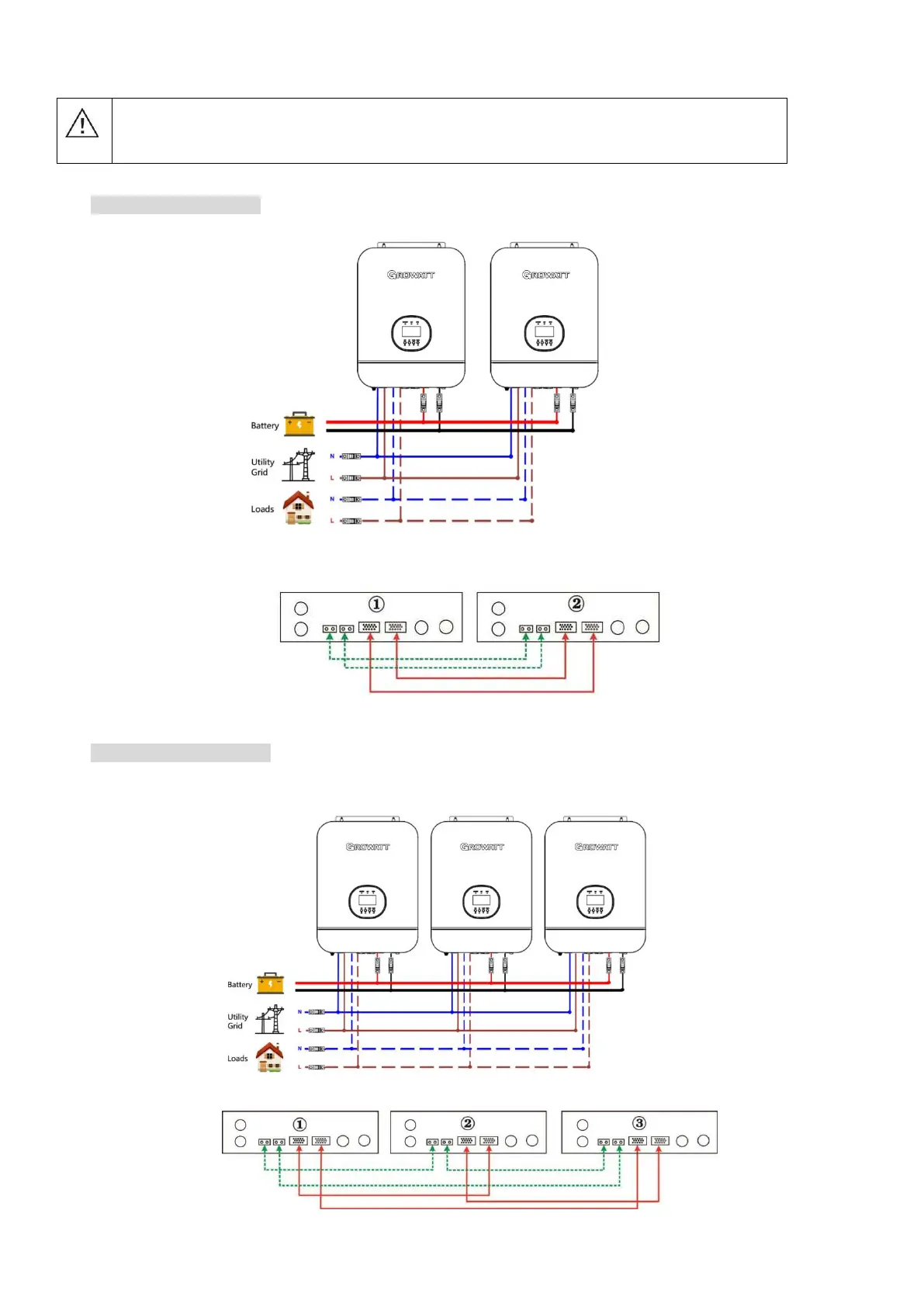

Two inverters in parallel:
Power Connection
Communication Connection
Three inverters in parallel:
Power Connection
Communication Connection
