Growatt SPF 5000TL HVM User Manual

33

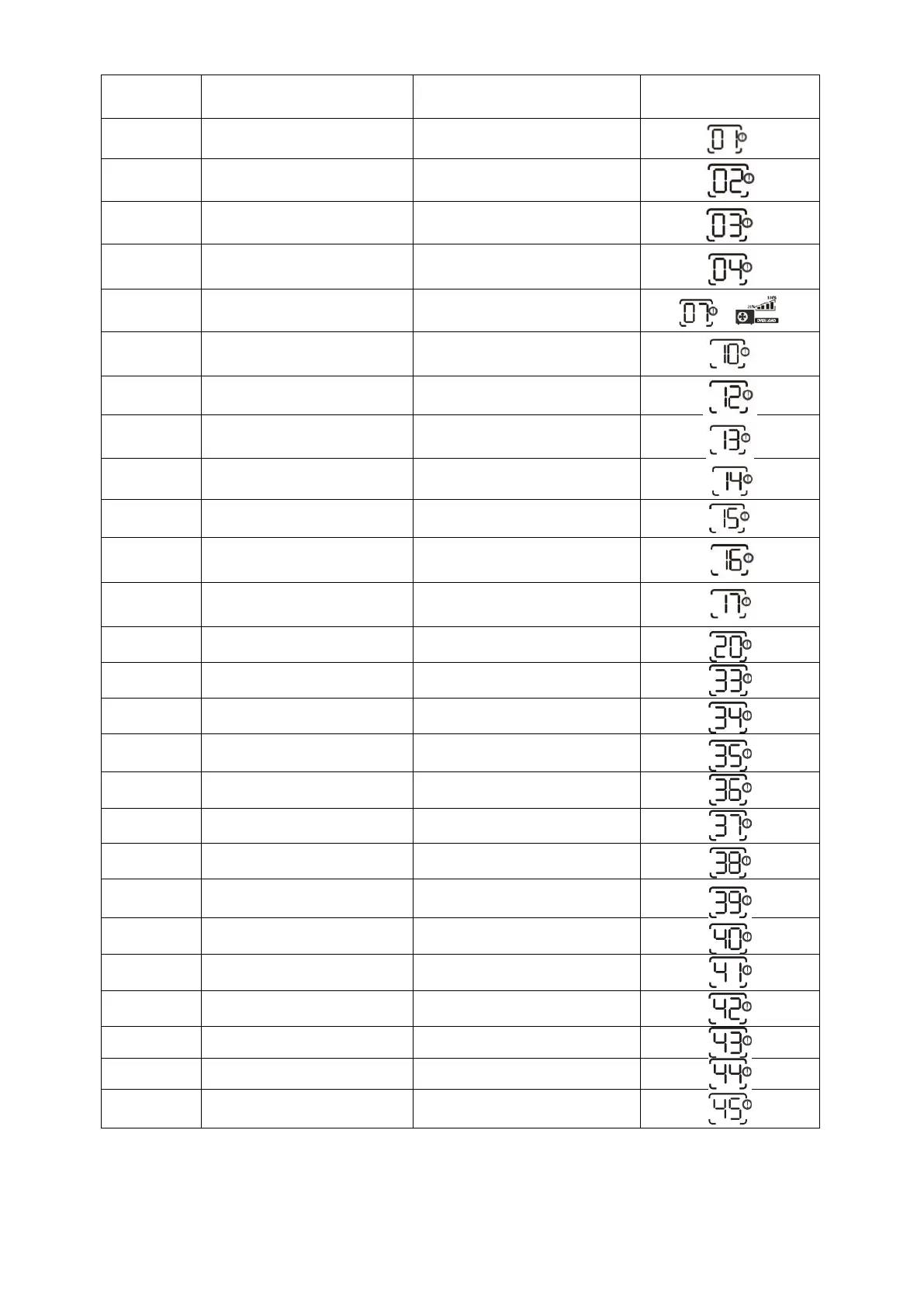

4.6 Warning Indicator
Warning
Code
Warning Event
Audible Alarm
Icon flashing
01
Fan is locked when inverter
is on.
Beep three times every second
02
Over temperature
Beep once every second
03
Battery is over-charged
Beep once every second
04
Low battery
Beep once every second
07
Overload
Beep once every 0.5 second
10
Output power derating
Beep twice every 3 seconds
12
Solar charger stops due
to low battery
Beep once every second
13
Solar charger stops due to
high PV voltage
Beep once every second
14
Solar charger stops due to
overload
Beep once every second
15
Parallel input utility grid
different
Beep once every second
16
Parallel input phase error
Beep once every second
17
Parallel output phase loss
Beep once every second
20
BMS communication error
Beep once every second
33
BMS communication loss
Beep once every second
34
Cell over voltage
Beep once every second
35
Cell under voltage
Beep once every second
36
Total over voltage
Beep once every second
37
Total under voltage
Beep once every second
38
Discharge over current
Beep once every second
39
Charge over current
Beep once every second
40
Discharge over temperature
Beep once every second
41
Charge over temperature
Beep once every second
42
Mosfet over temperature
Beep once every second
43
Battery over temperature
Beep once every second
44
Battery under temperature
Beep once every second
45
System shut down
Beep once every second

Growatt SPF 5000TL HVM Specifications

General

Rated Power	5000W
Input Voltage	230VAC
Output Voltage	230VAC
Frequency	50/60Hz
Efficiency	93%
Battery Voltage	48V
Max. PV Array Power	6000W
Max. DC Voltage	450VDC
Number of MPPT Trackers	1
Max. Input Current	18A
Max. AC Output Current	21.7A
Max. Charging Current	80A
Max. Discharging Current	80A
Operating Temperature Range	-10°C to 50°C
Protection Degree	IP20
Cooling Method	Fan
Dimensions	330 x 485 x 135 mm
Communication	RS232, USB
MPPT Range	120-430VDC
