Growatt SPF 5000TL HVM User Manual

31

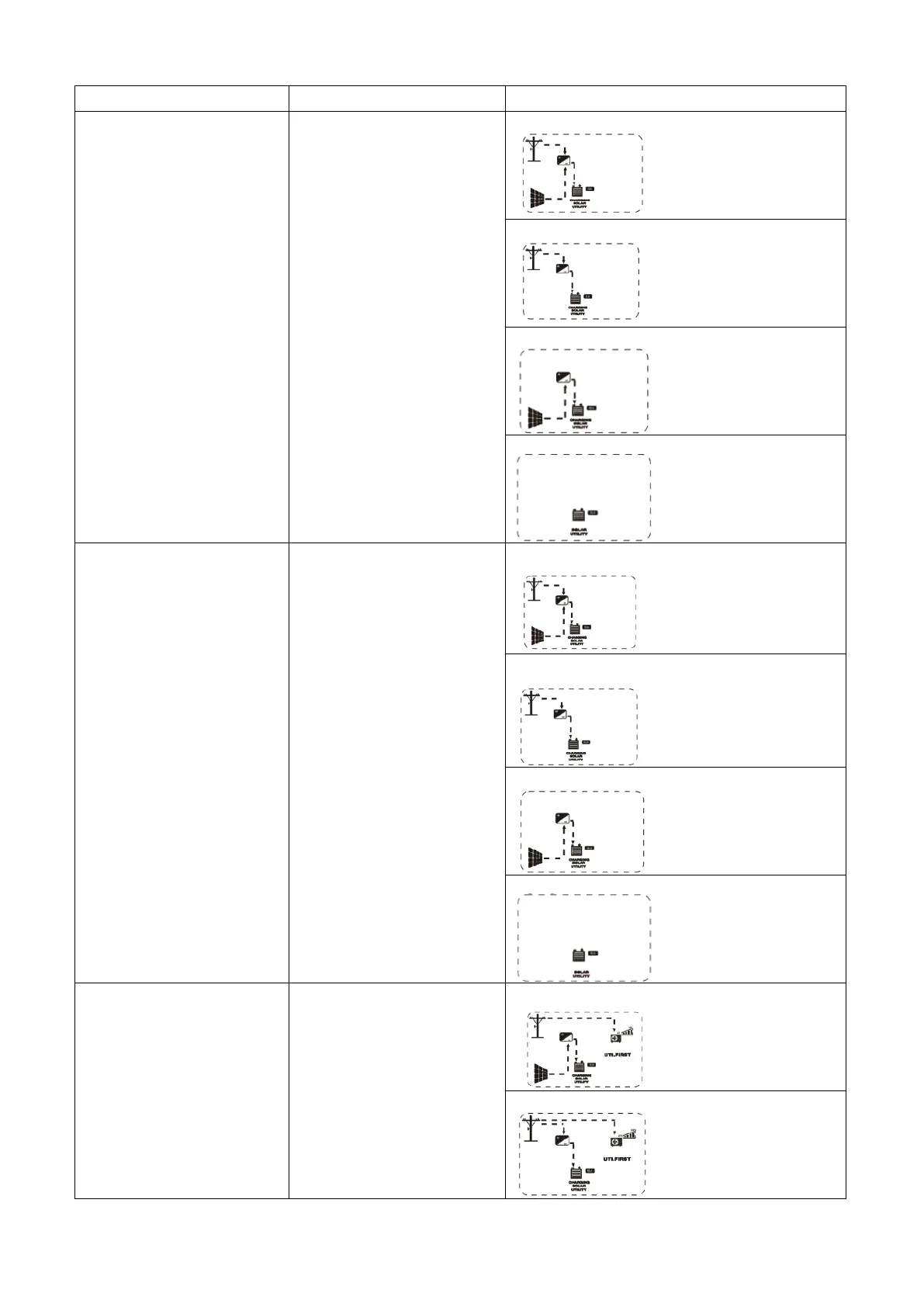

4.4 Operating Mode Description
Operation mode
Description
LCD display
Standby mode / Power
saving mode
Note:
*Standby mode: The inverter is
not turned on yet but at this
time, the inverter can charge
battery without AC output.
*Power saving mode: If enabled,
the output of inverter will be off
when connected load is pretty
low or not detected.
No output is supplied by the
unit but it still can charge
batteries.
Charging by utility and PV energy.
Charging by utility.
Charging by PV energy.
No charging.
Fault mode
Note:
*Fault mode: Errors are caused
by inside circuit error or external
reasons such as over
temperature, output short
circuited and so on.
PV energy and utility can
charge batteries.
Charging by utility and PV energy.
Charging by utility.
Charging by PV energy.
No charging.
Line Mode
The unit will provide output
power from the mains. It will
also charge the battery at
line mode.
Charging by PV energy.
Charging by utility.

Growatt SPF 5000TL HVM Specifications

General

Rated Power	5000W
Input Voltage	230VAC
Output Voltage	230VAC
Frequency	50/60Hz
Efficiency	93%
Battery Voltage	48V
Max. PV Array Power	6000W
Max. DC Voltage	450VDC
Number of MPPT Trackers	1
Max. Input Current	18A
Max. AC Output Current	21.7A
Max. Charging Current	80A
Max. Discharging Current	80A
Operating Temperature Range	-10°C to 50°C
Protection Degree	IP20
Cooling Method	Fan
Dimensions	330 x 485 x 135 mm
Communication	RS232, USB
MPPT Range	120-430VDC
