Growatt SPF 5000TL HVM User Manual

23

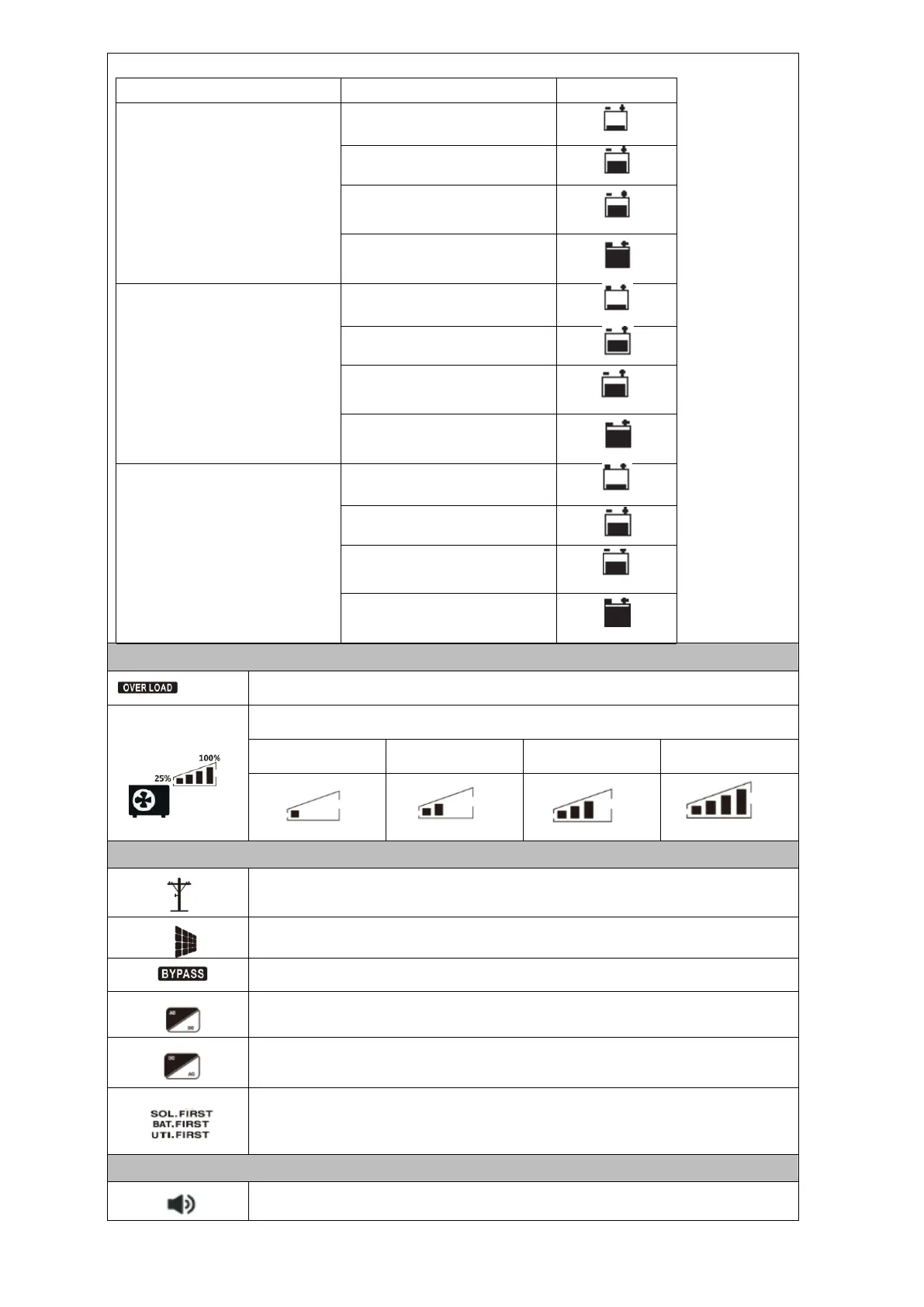

In battery mode, it will present battery capacity.
Load Percentage
Battery Voltage
LCD Display
Load >50%
< 1.717V/cell
1.717V/cell ~ 1.8V/cell
1.8 ~ 1.883V/cell
> 1.883 V/cell
50%> Load > 20%
< 1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
> 1.983
Load < 20%
< 1.867V/cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
> 2.033
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-49%, 50-74% and 75-100%.
0%~24%
25%~49%
50%~74%
75%~100%
Mode Operation Information
Indicates unit connects to the mains.
Indicates unit connects to the PV panel.
Indicates load is supplied by utility power.
Indicates the utility charger circuit is working.
Indicates the DC/AC inverter circuit is working.
These three signs indicate the output priority. “SOL.FIRST” indicates solar
first. “BAT.FIRST” indicates battery first. “UTI.FIRST” indicates utility first.
Mute Operation
Indicates unit alarm is Enabled.

Growatt SPF 5000TL HVM Specifications

General

Rated Power	5000W
Input Voltage	230VAC
Output Voltage	230VAC
Frequency	50/60Hz
Efficiency	93%
Battery Voltage	48V
Max. PV Array Power	6000W
Max. DC Voltage	450VDC
Number of MPPT Trackers	1
Max. Input Current	18A
Max. AC Output Current	21.7A
Max. Charging Current	80A
Max. Discharging Current	80A
Operating Temperature Range	-10°C to 50°C
Protection Degree	IP20
Cooling Method	Fan
Dimensions	330 x 485 x 135 mm
Communication	RS232, USB
MPPT Range	120-430VDC
