Growatt SPH-UP Series User Manual

6.3 Display and button
6.3.1 LCD display area

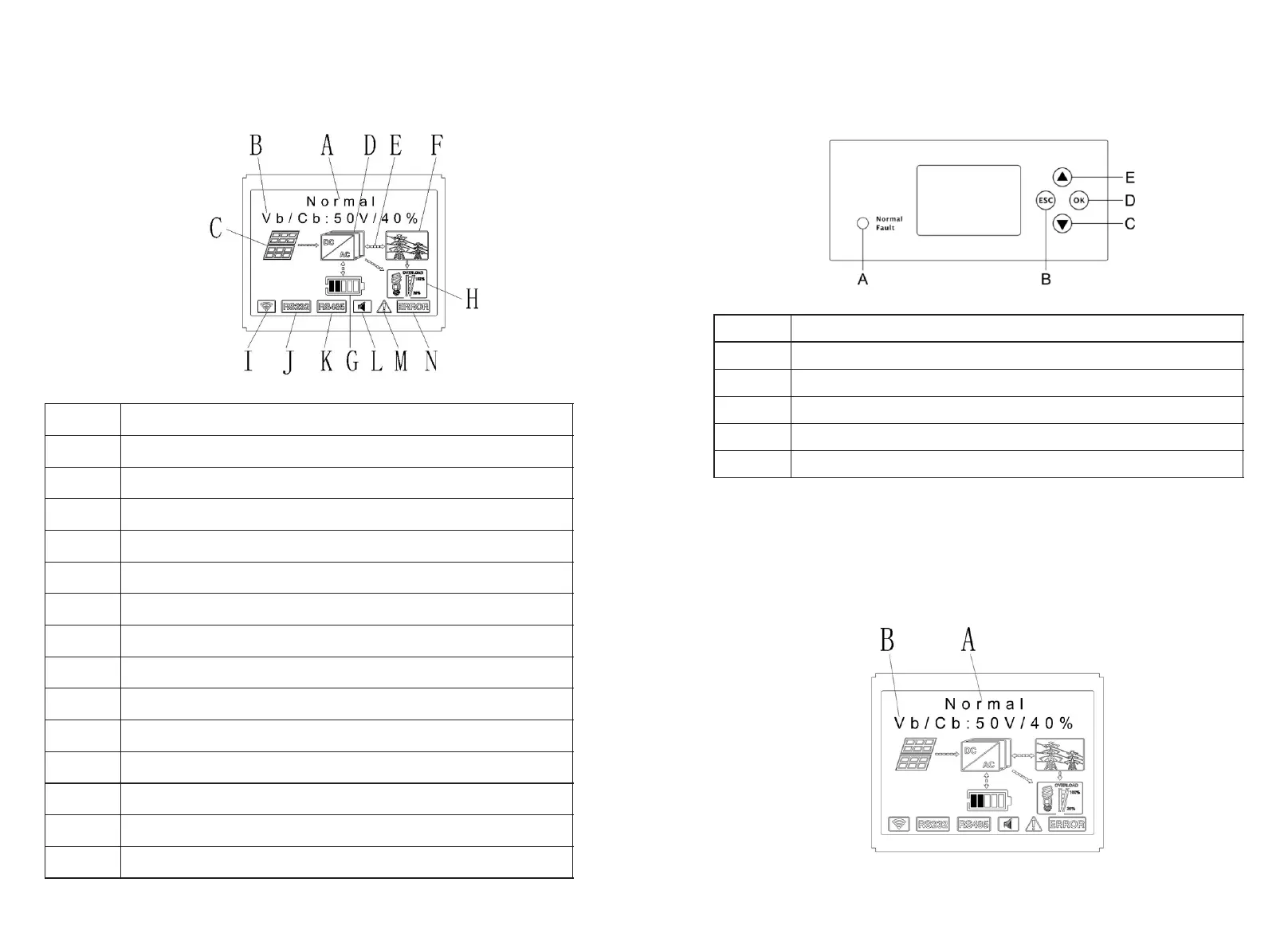

Chart 6.1
Location
Description
A
State
B
Information
C
PV input (If you connect two tracks, it will show two. Otherwise show one)
D
SPH inverter
E
Power flow line
F
Grid
G
Battery (Show the SOC in five grid, Every grid represents 20%)
H
Local load
I
Wireless communication
J
RS232
K
RS485
L
Buzzer(Reserved)
M
Warning
N
Fault
6.3.2 LED and button instruction
Location
Description
A
Status
B
ESC- button(cancel control)
C
Down-button
D
Enter-button
E
UP-button
Chart 6.2
Notice：
LED showing status of SPH, it has two colors, one is green and another is red. Please turn
to 3.1 and read the detail of LED
6.3.3 LCD display column
Grovett can provide a variety of rules and regulations of the machine, the customer
received the machine, according to their country, through the LCD selection to set the
corresponding rules and regulations.
Chart 6.3
39
40

Growatt SPH-UP Series Specifications

General

Type	Hybrid Inverter
Protection Rating	IP65
Number of MPPTs	2
AC Voltage Range	180-280V
THDi	<3%
AC Grid Frequency	50/60Hz
Communication Interfaces	Wi-Fi, RS485, USB
Nominal AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Cooling
