Growatt SPH-UP Series User Manual

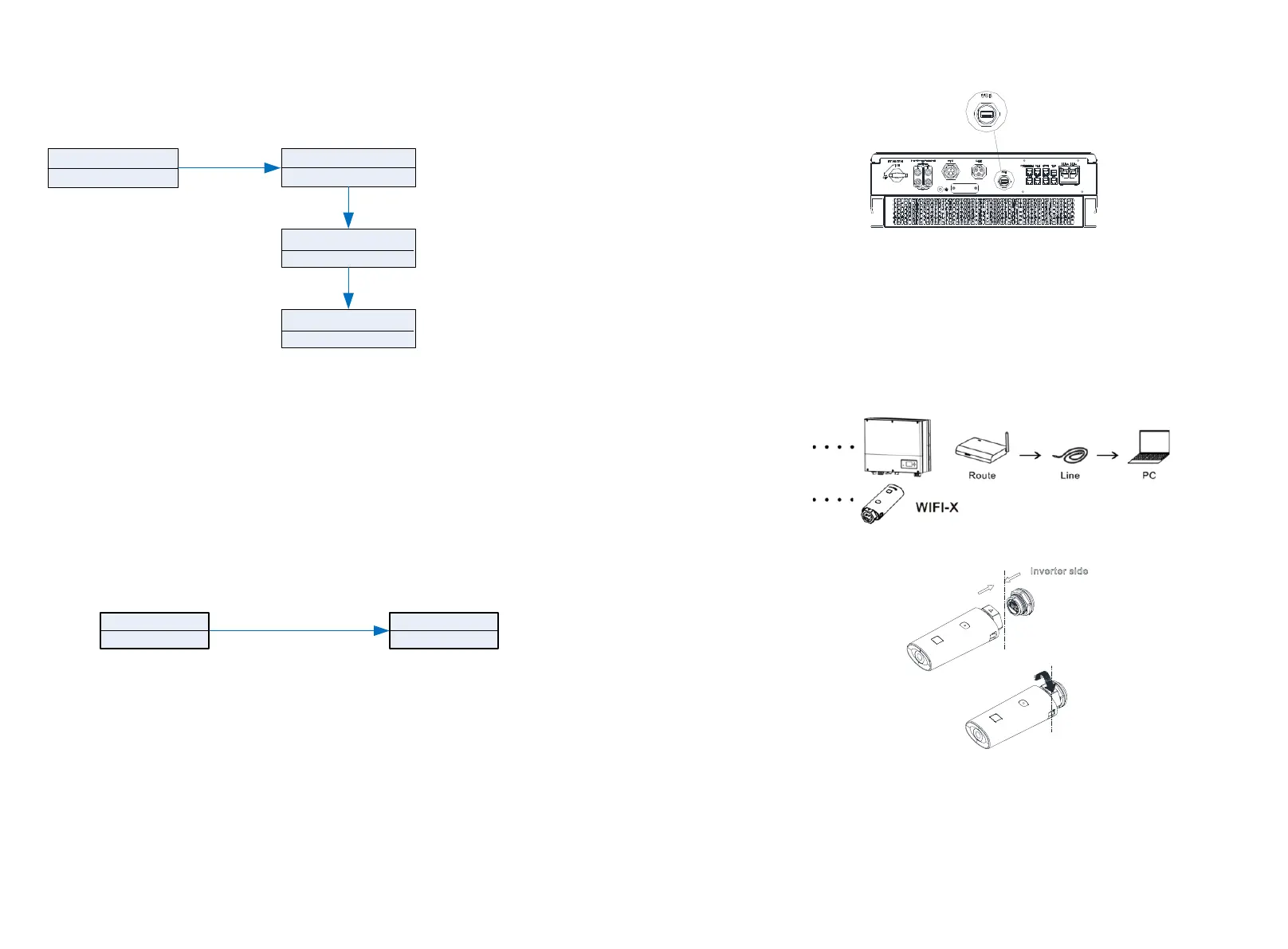

4.Under the Export Limit, you can see the setup options below after pressing Enter:
Chart 6.10
Export limit is used for users to control the energy flowing to the grid. If this function is
enabled, the feeding power to grid will be equal or less than the setup value.
The purpose of the Fail Safe function is to ensure that should any part of the ELS fail, the
Active Power exported across the Connection Point will drop to the Agreed Export
Capacity or less within the specified time.
Note: 1.Default value is 00.0%
Fail safe works only in meter mode
5.Under the default set, you can see the setup options below after pressing Enter:
Chart 6.11
Default set is “resume to default setting ”, please don't use it unless it's necessary.
6.4 Communication
6.4.1 Use of USB port
USB port is mainly for firmware update & system monitoring. Through USB connection,
we can quickly update the software of machine. You can see USB as below:
Chart 6.12
Note:
USB is only used for firmware update & system monitoring. Customer can't use it for
charging.
6.4.2 The SPH's monitoring
Users can through the following communication solution to monitor the SPH.
Note:
This monitoring can only be used by Growatt's Shine server/Shine phone's monitor
provided by the company. Wi-fi -X/ Shine Link-X through USB interface, using computer
terminal/mobile phone for data monitoring.
The USB collector is connected：
Chart 6.14
Whether it is a Wi-Fi-X/ Shine link-x collector; Connect to the remote monitoring system,
scan the QR code on the collector to download the APP. After the download is complete,
please prompt for operation. Please see the collector manual for details.
Press
“Enter”
Key to make
sure
Work Mode
Defult Set
Work Mode
Yes
Press Key more than
3
seconds to make sure
“Enter”
WorkMode
ExportLimit
WorkMode
WorkMode
ExportLimit: OFF
ON
Power Rate : 00.0%
Press “enter” key more
than 1 seconds to make sure
Press “down” key
to the next item
Press key
to make sure
Range from 00.0% to 100.0% ,
and the accuracy is 0.1%
WorkMode
Fail Safe: ON
OFF
“enter”
45
46
WIF I
Note:
When connected to the datalogger, when SPH is powered on for the first time with ARK
battery, there will be no monitoring data for about 20 minutes. This is because SPH is
communicating with the battery and uploading the battery SN number, which is a normal
phenomenon.
Chart 6.13

Growatt SPH-UP Series Specifications

General

Type	Hybrid Inverter
Protection Rating	IP65
Number of MPPTs	2
AC Voltage Range	180-280V
THDi	<3%
AC Grid Frequency	50/60Hz
Communication Interfaces	Wi-Fi, RS485, USB
Nominal AC Voltage	230 V
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Cooling
