Growatt SPH3600 Installation Manual

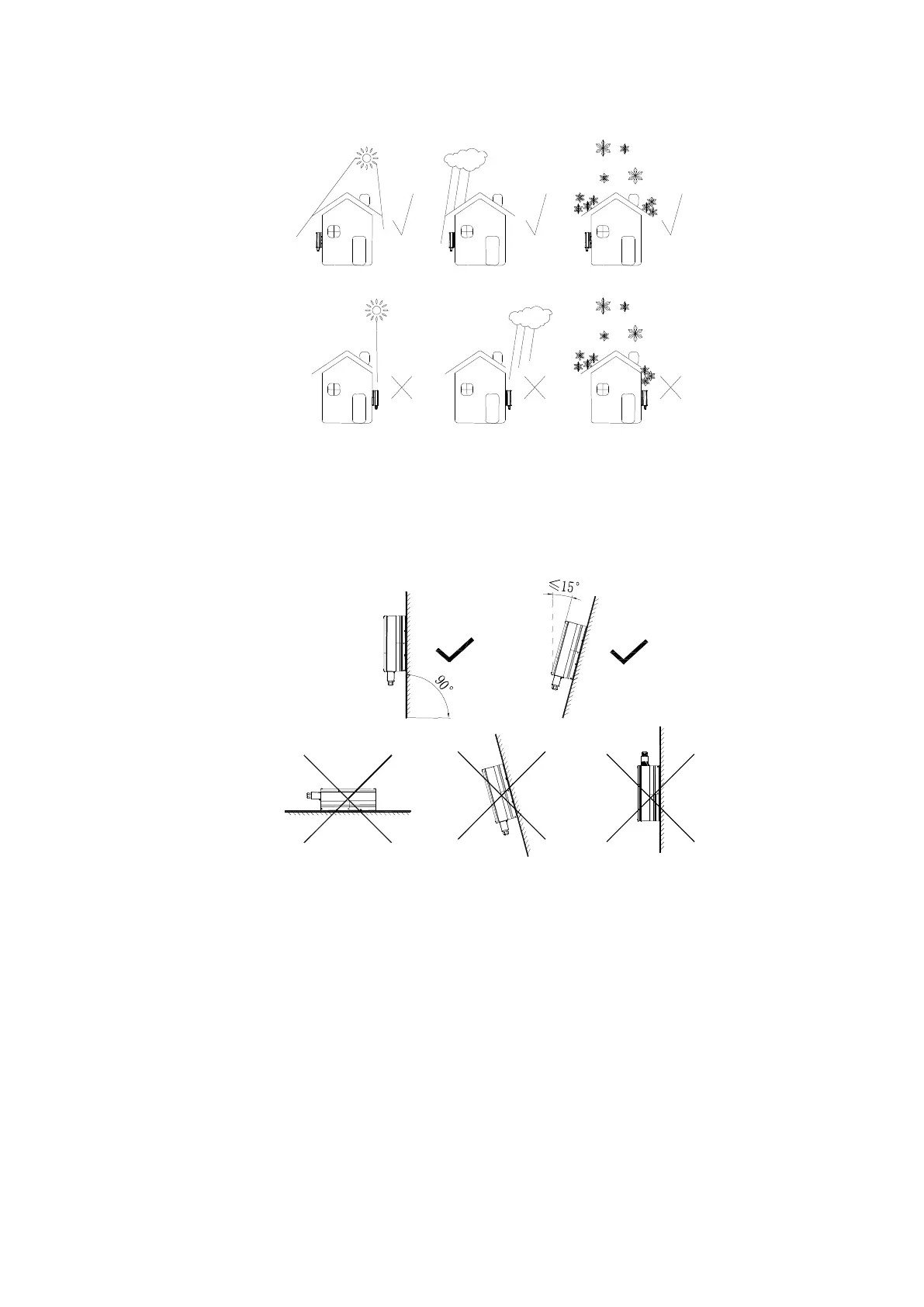

Chart 5.1
E. Battery installation option is not far away from the position of SPH, the length between SPH and battery
should not be more than 1.5m.
F. The ambient temperature should be -25℃~60℃.
G. SPH can be installed in vertical or lean back on plane, please refer to the below:
Chart 5.2
H. Installation position shall not prevent access to the disconnection means.
I. In order to ensure machine can run normally and easy to operate, please pay attention to
provide adequate space for SPH, please refer to below:

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
