Growatt SPH3600 Installation Manual

and set again.
The DIP switch is composed of six-digit binary number PINS. The different combination of the six PINS can
represent different inverter’s model, which is corresponding to the local grid standard. Each small white PIN
has two statuses, when set upward to “ON”, its value turns to “1”, when set downward, its value turns to “0”.
Concerning the matching of the PIN status and the country safety standard, please refer to the table below:

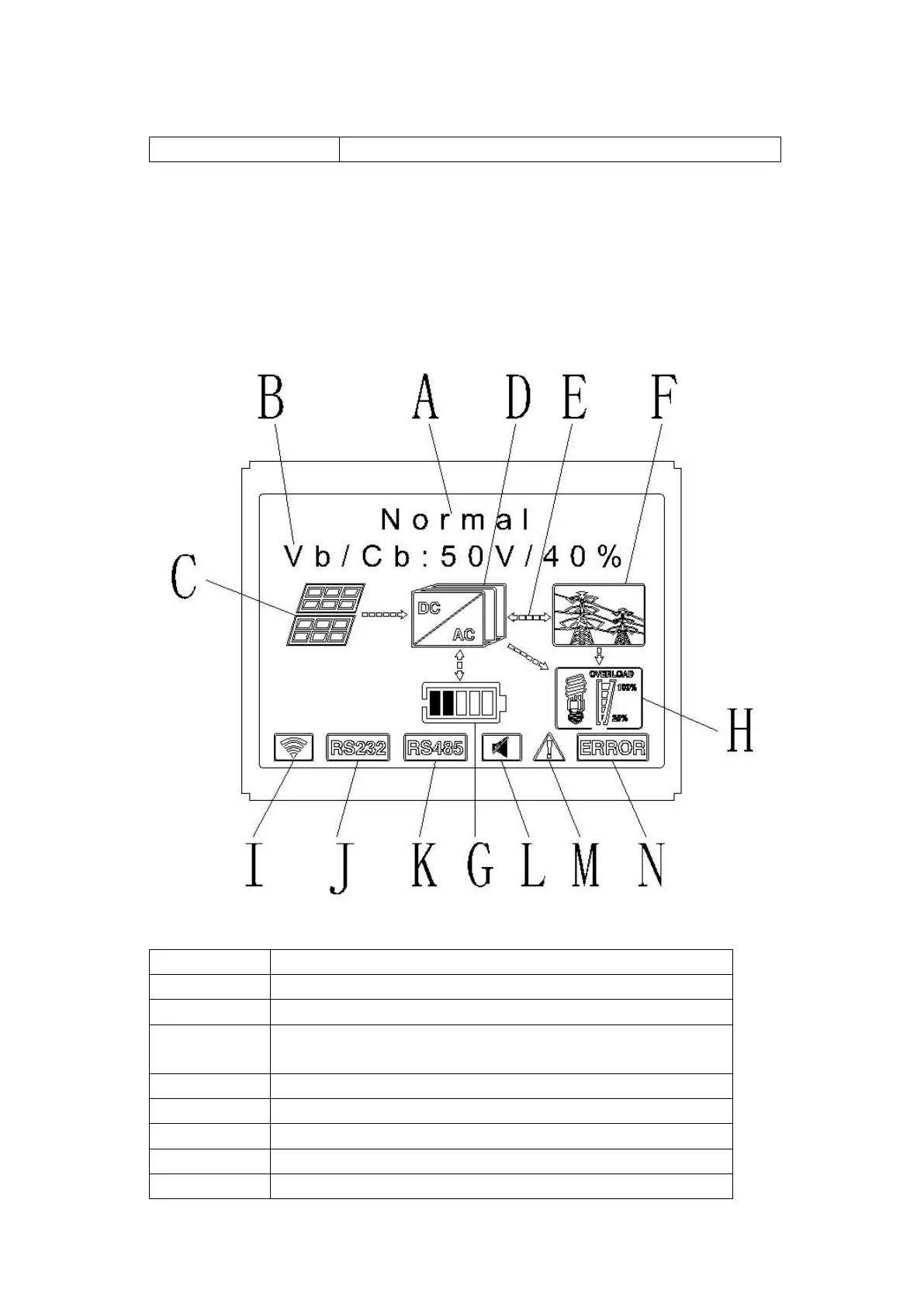

6.4 Display and button
6.4.1 LCD display area
Chart 6.2
Location Description
A State
B Information
C
PV input (If you connect two tracks, it will show two. Otherwise
show one)
D SPH inverter
E Power flow line
F Grid
G Battery (Show the SOC in five grid, Every grid represents 20%)
H Local load

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
