Growatt SPH3600 Installation Manual

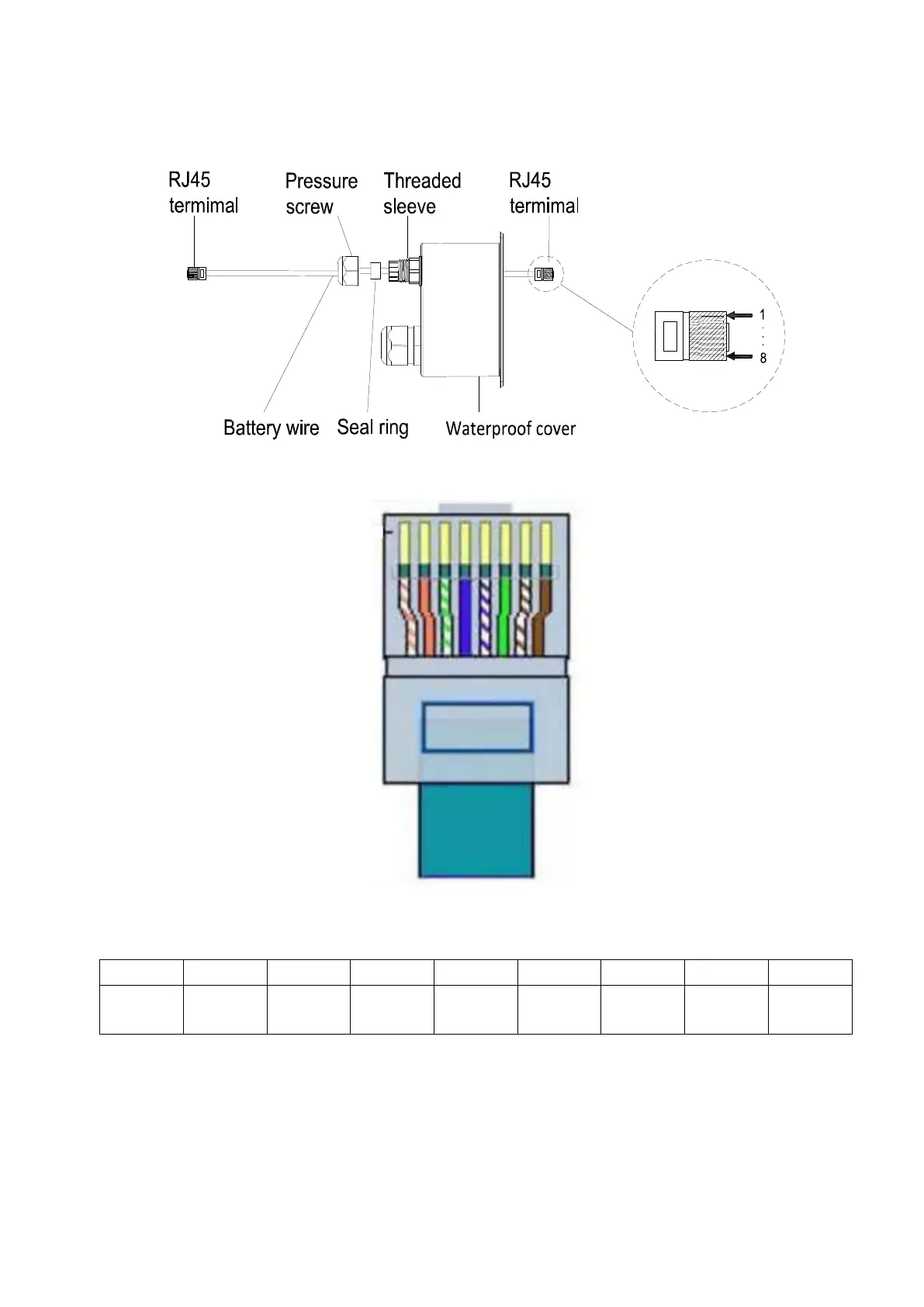

LAN line RJ45 sequence as follow:
Chart 5.5
Chart 5.6
LAN line 1-8 colors as below:
PIN 1 2 3 4 5 6 7 8
Color
White
orange
Orange
White
green
Blue
White
blue
Green
White
brown
Brown
5.3 Installation Instructions
5.3.1 Attention Layout（length of sensors consider）
There’re three types of sensors for use with SPH. One is wired current sensor, one is meter sensor, or SP-CT,
if you choose wired sensor or meter. Before installing you should know something that as below:

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
