Growatt SPH3600 Installation Manual

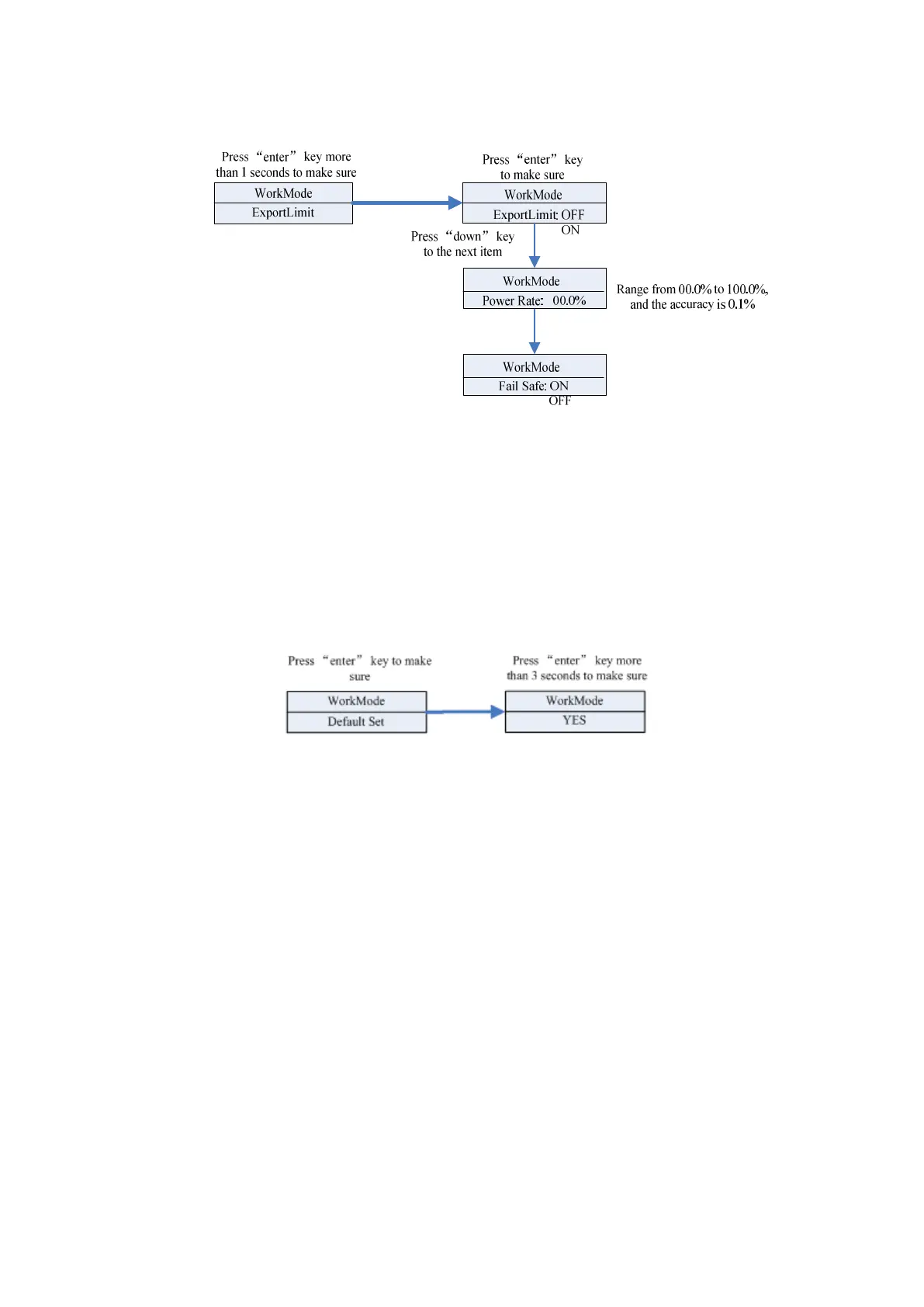

Chart 6.11
Exportlimit is used for users to control the energy flowing to the grid. If this function is enabled, the feeding
power to grid will be equal or less than the setup value.
The purpose of the Fail Safe function is to ensure that should any part of the ELS fail, the Active Power
exported across the Connection Point will drop to the Agreed Export Capacity or less within the specified time.
Note: 1.Default value is 00.0%
2.Fail safe works only in meter mode
6. Under the default set, you can see the setup options below after pressing Enter:
Chart 6.12
Default set is “resume to default setting ”, please don't use it unless it's necessary.
6.5 Communication
6.5.1 Use of USB-A port
USB-A port is mainly for firmware update. Through USB connection, we can quickly update the software of
machine. You can see USB-A as below:

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
