Growatt SPH3600 Installation Manual

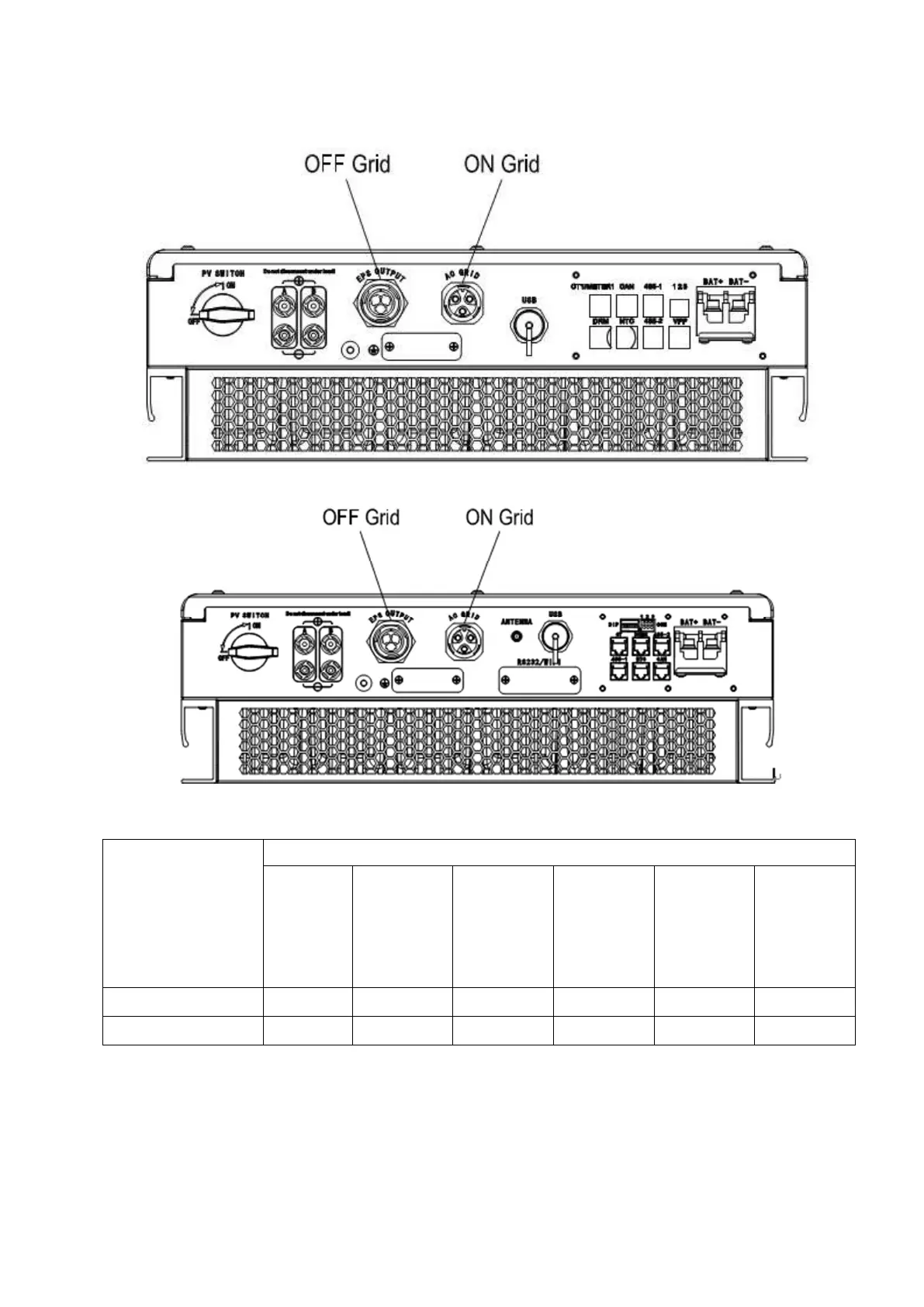

Chart 5.10.1 SPH3000-6000TL BL-UP
Chart 5.10.1 Growatt SPH3000-6000
Wire suggest length
Conductor cross
section
Max cable length
Growatt
SPH3000
& SPH
3000TL
UP
Growatt
SPH3600&S
PH 3600 TL
UP
Growatt
SPH4000&S
PH 4000 TL
UP
Growatt
SPH4600&S
PH 4600 TL
UP
Growatt
SPH5000&S
PH 5000 TL
UP
Growatt
SPH6000&S
PH 6000 TL
UP
5.2mm
2
10AWG 40m 33m 28m 26m 25m 23m
6.6mm
2
9AWG 50m 42m 36m 33m 32m 29m
AC output terminal connection steps as follow:

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
