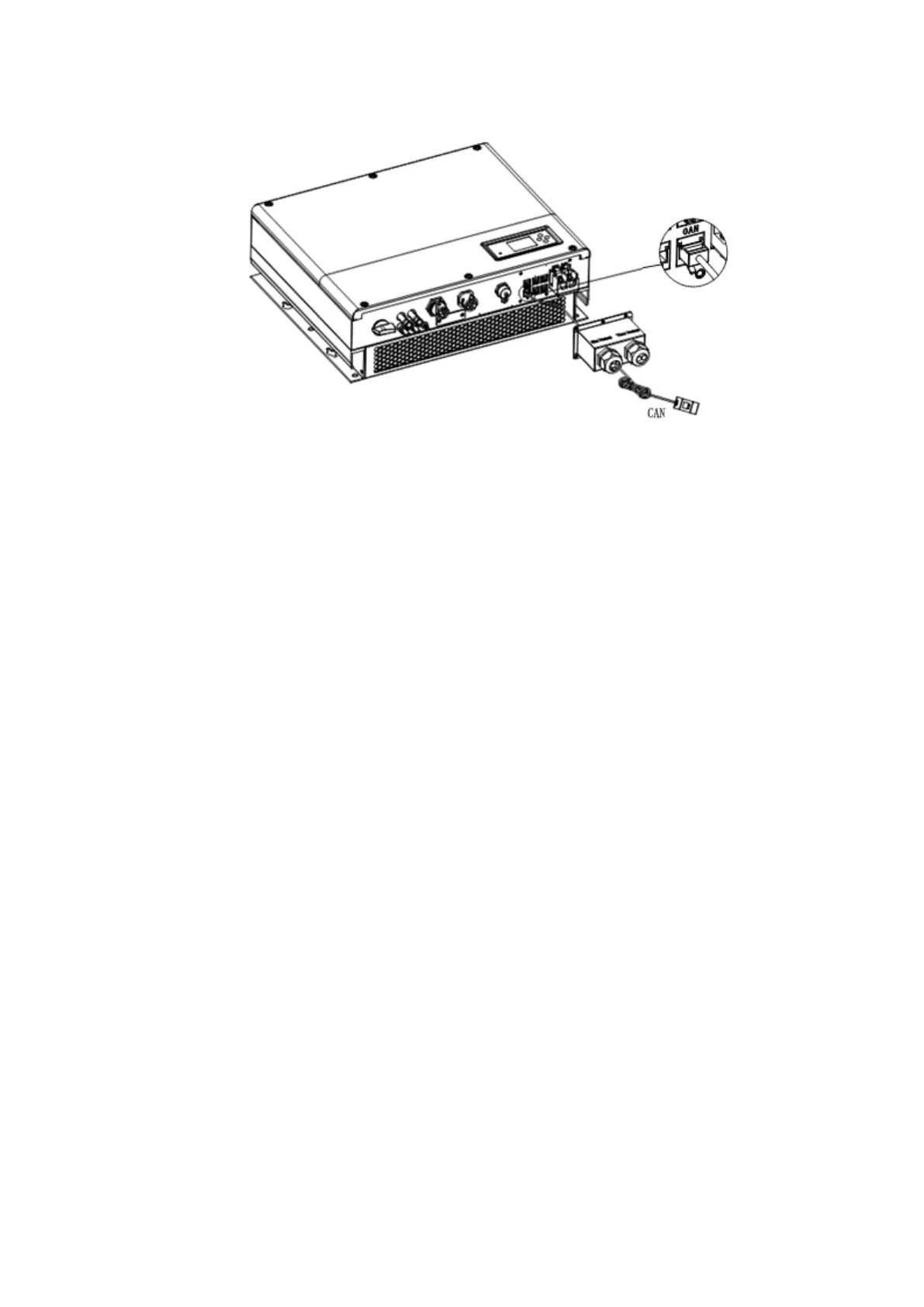

Chart 5.29
Note:
1. If you are using a lead-acid battery, you do not need to install this communication cable.
2. The CAN battery communication and 485-2 battery communication can’t be installed at same time,
please select the correct communication method according to the battery manual.
3. If the cable such as “485-2” cable or “CAN” cable is not used, please do not remove the filler plug from
the cable support sleeve.
5.4.7 Connection of communication terminal for lithium battery (RS485)
When using lithium batteries which need to connect BMS system of the battery, connect lithium battery
terminal (RJ45) steps as follows:
1. Unscrew the swivel nut from the cable gland.
2. Thread the swivel nut over the “RS485” cable.
3. Press the cable support sleeve out of the cable gland.
4. Remove the filler plug from the cable support sleeve.
5. Route the “RS485” cable through an opening in the cable support sleeve.
6. Thread the “RS485” cable through the cable gland.
7. Insert the RJ45 plug of the network cable into the “RS485-2pin connector on the inverter until it snaps
into place.
8. If no other cables need to be installed, lock the waterproof cover to the inverter with screws.
9. Screw the swivel nut onto the waterproof cover.
