Growatt SPH3600 Installation Manual

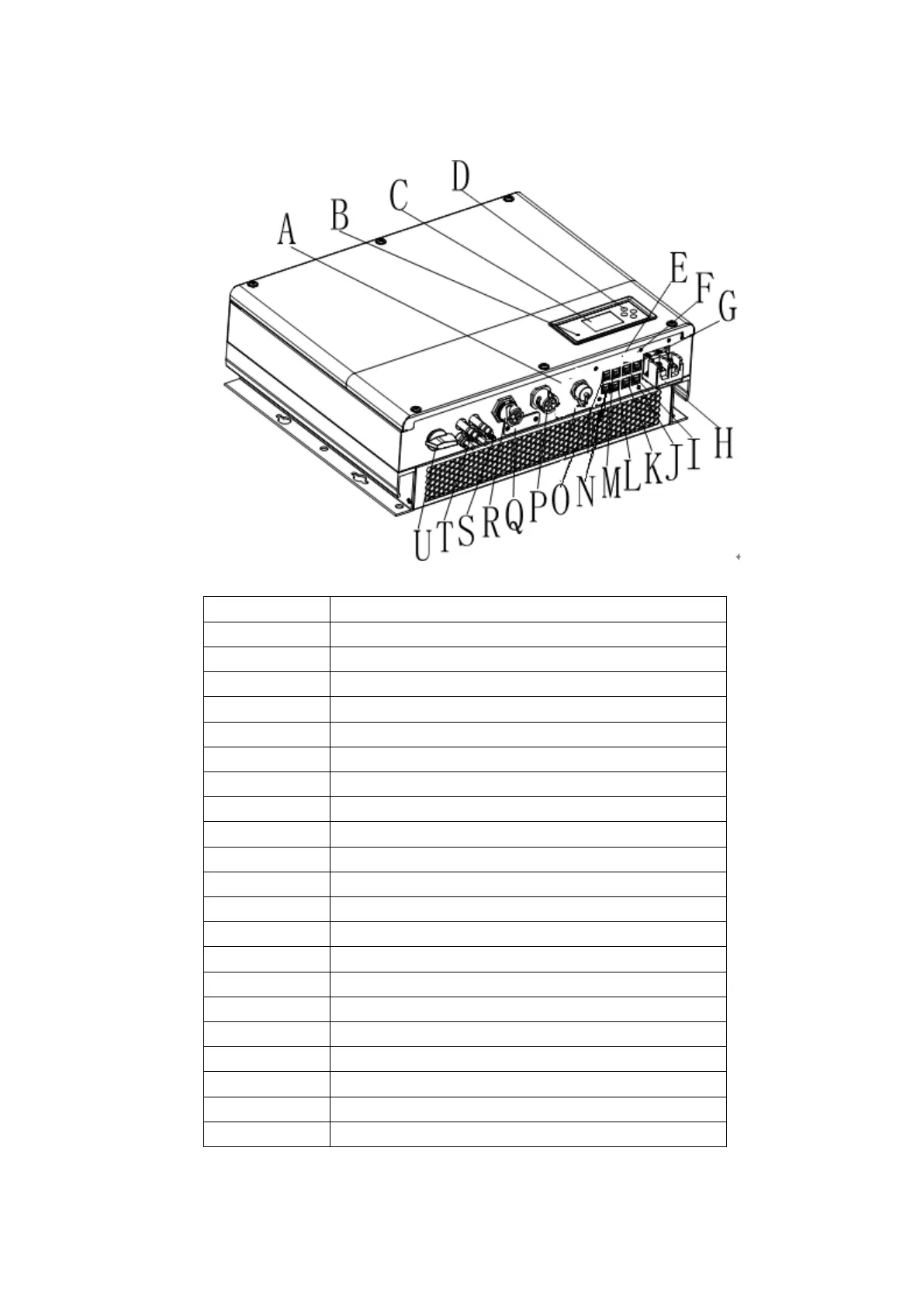

Chart 1.1
Position Description
A
USB interface
B LED of status display
C LCD screen
D Function button
E
DIP switch（set safety standard）
F Dry contact
G RS485 communication interface of Lithium battery
H Battery terminal
I CAN communication interface of Lithium battery
J RJ45 interface of DRMs(used only in Australia)
K NTC: Lead-acid temperature sensor terminal
L RS485 communication interface of meter
M CT input terminal
N RS485-1 communication
O VPP communication
P AC Grid (on grid connection)
Q RSD(do not open except by Professional staff)
R EPS output(off grid connection)
S Ground point
T PV input
U PV switch

Growatt SPH3600 Specifications

General

Model	SPH3600
Type	Hybrid Inverter
Rated Power	3600 W
Max PV Input Voltage	550 V
Number of MPPTs	2
Max Input Current per MPPT	11 A
Nominal DC Voltage	360 V
Nominal AC Power	3600 W
Max AC Current	16 A
Nominal AC Voltage	230 V
AC Voltage Range	180-280V
Nominal Grid Frequency	50/60 Hz
THDi	<3%
Max Efficiency	97.5%
DC Switch	Yes
Protection Degree	IP65
Battery Voltage Range	42 V - 59 V
Communication Interfaces	RS485, WiFi
Max AC Power	3600W
Euro Efficiency	97.0%
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
