English (GB)
13

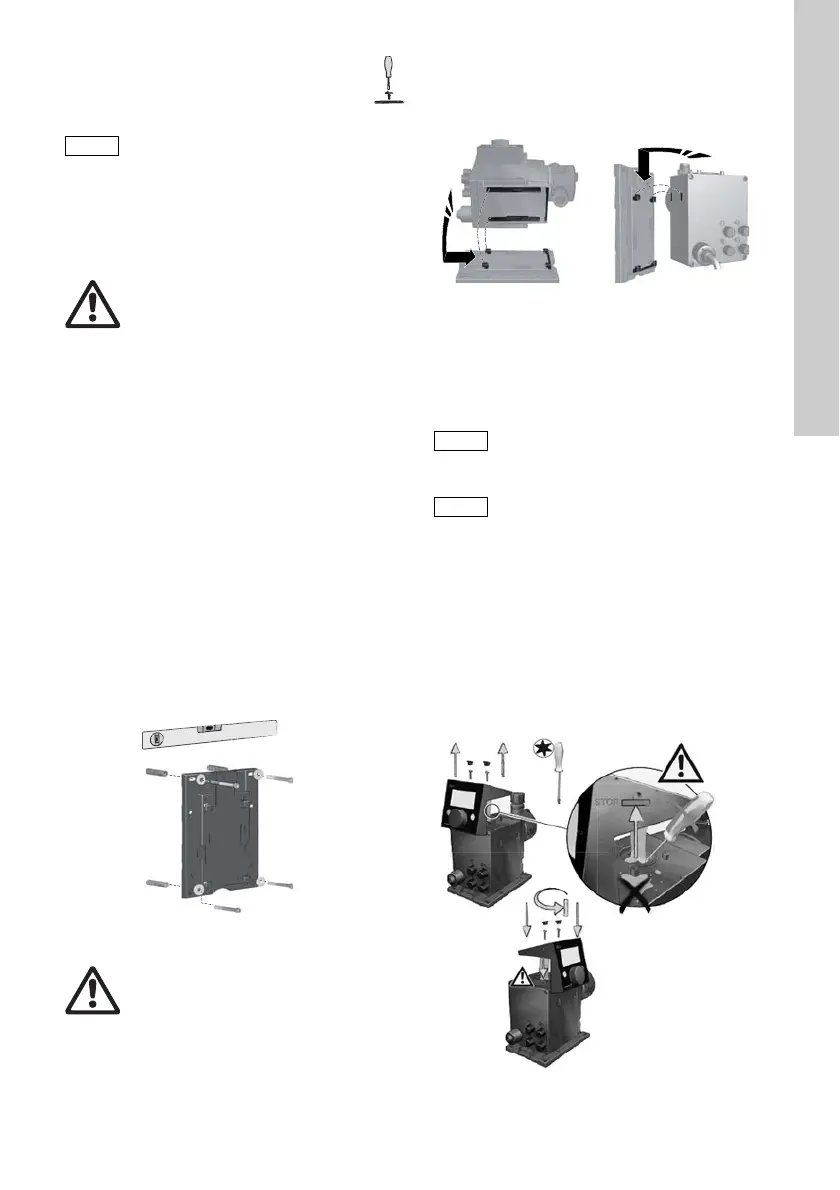

4. Assembly and installation
4.1 Pump assembly
The pump is delivered with a mounting plate.
The mounting plate can be mounted vertically e.g.
on a wall or horizontally e.g. on a tank. It takes just a
few quick steps to firmly secure the pump to the
mounting plate by means of a slot mechanism.
The pump can easily be released from the mounting
plate for maintenance.
4.1.1 Requirements
• The mounting surface must be stable and must
not vibrate.
• Dosing must flow upwards vertically.
4.1.2 Align and install mounting plate
• Vertical installation: Mounting plate slot
mechanism must be above.
• Horizontal installation: Mounting plate slot
mechanism must be opposite the dosing head.
• The mounting plate can be used as a drill
template, please see fig. 4 for drill hole distances.
Fig. 5 Locate mounting plate
1. Indicate drill holes.
2. Drill holes.
3. Secure mounting plate using four screws,
diameter 5 mm, to the wall, on the bracket or the
tank.
4.1.3 Engage pump in mounting plate
1. Attach the pump to the mounting plate support
clamps and slide under slight pressure until it
engages.
Fig. 6 Engaging the pump
4.1.4 Adjusting control cube position
The control cube is fitted to the front of the pump on
delivery. It can be turned by 90 ° so that the user can
select to operate the pump from the right or left side.
1. Carefully remove both protective caps on the
control cube using a thin screwdriver.
2. Loosen screws.
3. Carefully lift off control cube only so far from the
pump housing that no tensile stress is produced
on the flat band cable.
4. Turn control cube by 90 ° and re-attach.
– Make sure the O-ring is secure.
5. Tighten screws slightly and attach protective
caps.
Fig. 7 Adjusting control cube
For use in Australia:
Installation of this product must
comply with AS/NZS3500!
Certificate of suitability number:
CS9431
C-tick number: N20683
Warning
Install the pump in such a way that the
plug can easily be reached by the
operator during operation! This will
enable the operator to separate the
pump from the mains quickly in case of
emergency!
TM04 1162 0110
Warning
Make sure that you do not damage any
cables and lines during installation!
TM04 1159 0110
The enclosure class (IP65/Nema 4X)
and shock protection are only
guaranteed if the control cube is
installed correctly!
Pump must be disconnected from the
power supply!
TM04 1182 0110
