English (GB)
32
6.13 Display Setup
Use the following settings in the "Setup > Display"
menu to adjust the display properties:
•Units (metric/US)
• Display contrast
• Additional display.
6.13.1 Units
Metric units (litres/millilitres/bar) or US units (US
gallons/PSI) can be selected. According to the
operation mode and menu, the following units of
measurement are displayed:
6.13.2 Additional display
The additional display provides additional
information about the current pump status. The value
is shown in the display with the corresponding
symbol.
In "Manual" mode the "Actual flow" information can
be displayed with Q = 1.28 l/h (see fig. 34).

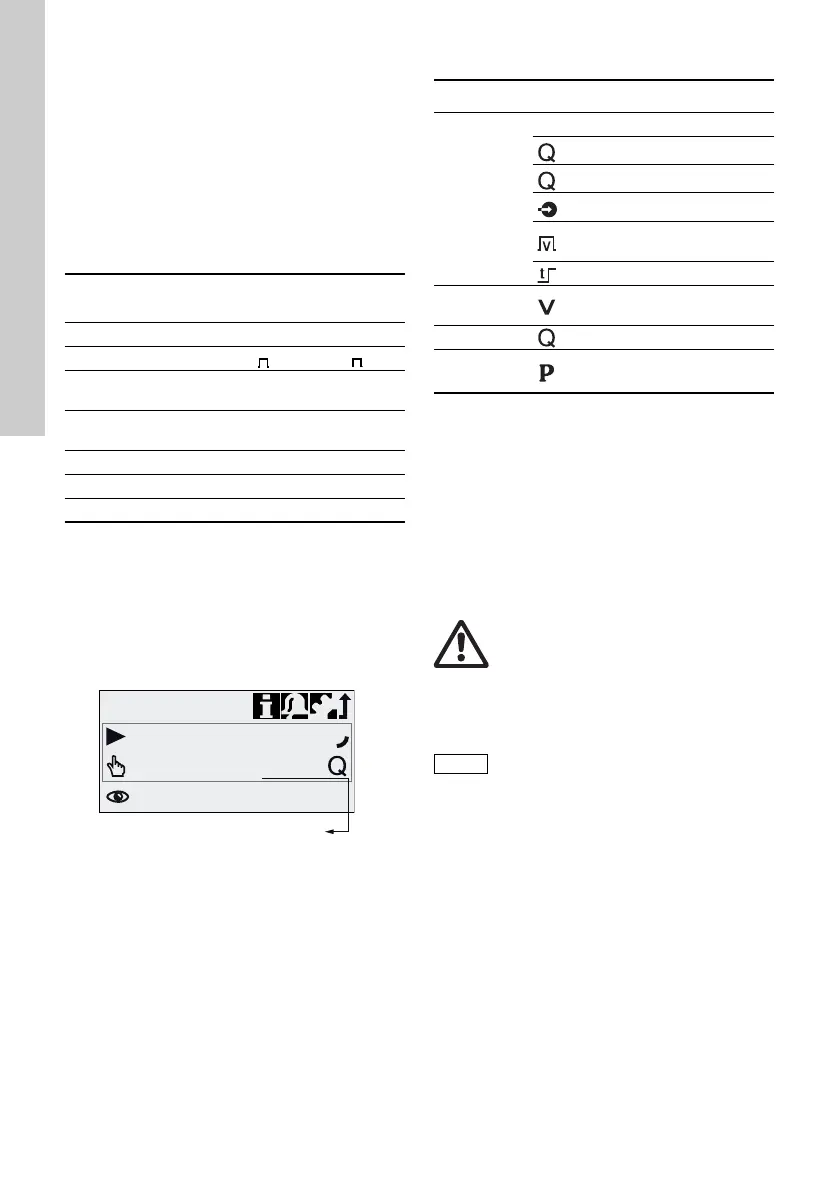

Fig. 34 Display with additional display
The additional display can be set as follows:
1)
only DDA-FCM control variant
2)
only if indicator diagram can be evaluated (see
6.7 FlowControl)
3)
only DDA-FCM/FC control variant
6.14 Time+date
The time and date can be set in the "Setup >
Time+date" menu.
Operation mode /
function
Metric units US units
Manual control ml/h or l/h gph
Pulse control ml/ ml/
0/4-20 mA Analog
control
ml/h or l/h gph
Batch (pulse- or
timer-controlled)
ml or l gal
Calibration ml ml
Volume counter l gal
Pressure monitoring bar psi
TM04 1151 2011
Operation
1.30
l/h
Manual
1.28l/h
Additional display
Setting Description
Default
display
Depending on the operation mode:
Actual flow (Manual/Pulse)
1), 2)
Target flow (Pulse)
Input current (analog)
Remaining batch volume
(Batch, Timer)
Period until next dosing (Timer)
Dosed
volume
Dosed vol. since last reset (see
Counters
on page 22)
Actual flow Current actual flow
1)
Backpressure
Current backpressure in the
dosing head
3)
Warning
When time or date is changed in
"
Time+date
" menu, timer dosing and
timer relay output functions (Relay 2)
are stopped!
Timer dosing and timer relay output
functions must be restarted manually!
Changing time or date can cause
increase or decrease in concentration!
The conversion between summer and
winter time does not take place
automatically!
