Grundfos DDA 7.5-16

English (GB)
9
2.7 Product overview

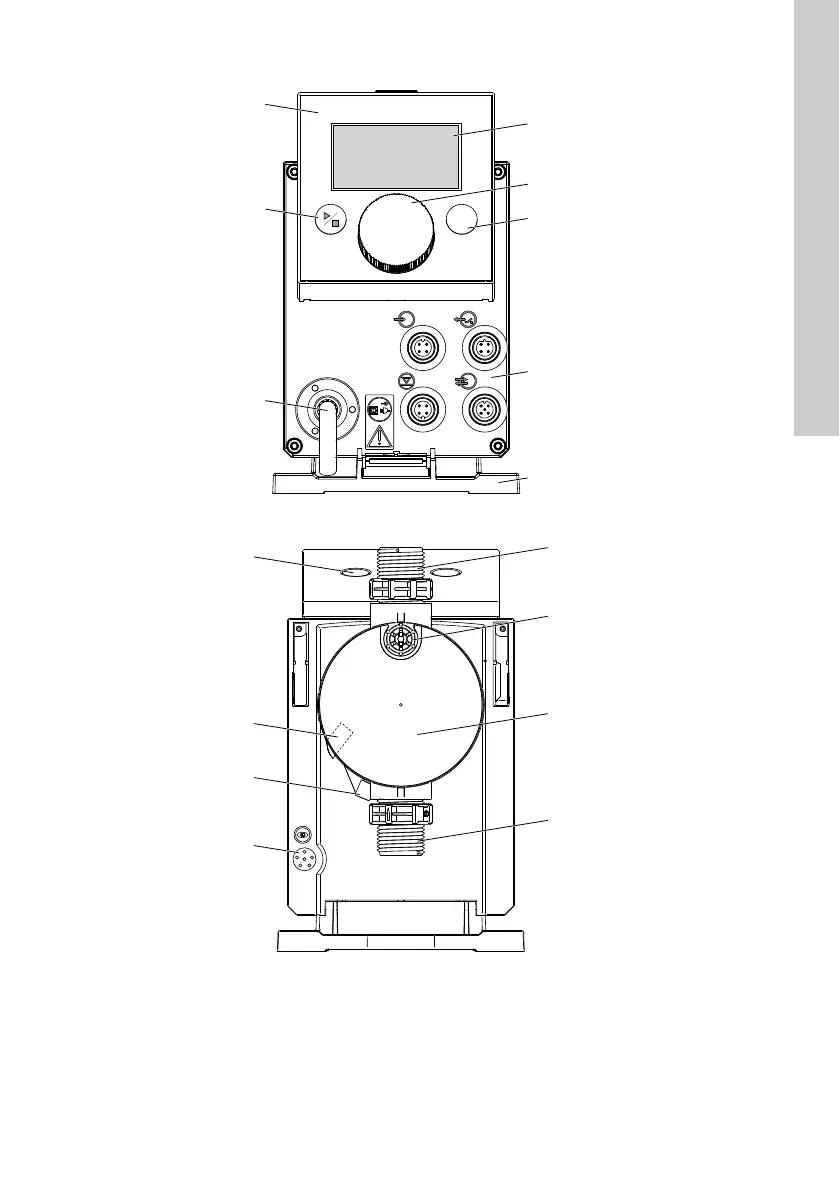

Fig. 2 Front view of the pump
Fig. 3 Rear view of the pump
TM04 1129 0110
[Start/stop] key (section 6.1)
Mains connection
Control cube
Graphic LC display
(section 6.2.2)
Click wheel (section 6.1)
[100%] key (section 6.1)
Signal inputs/outputs
(section 4.3)
Mounting plate
100%100%
TM04 1133 0110
FlowControl connection
(only DDA-FC/FCM)
Deaeration valve
Dosing head
Valve, suction side
Connection, deaeration
hose
Valve, discharge side
Control cube assembly
screws
Drain opening in case of
diaphragm breakage
