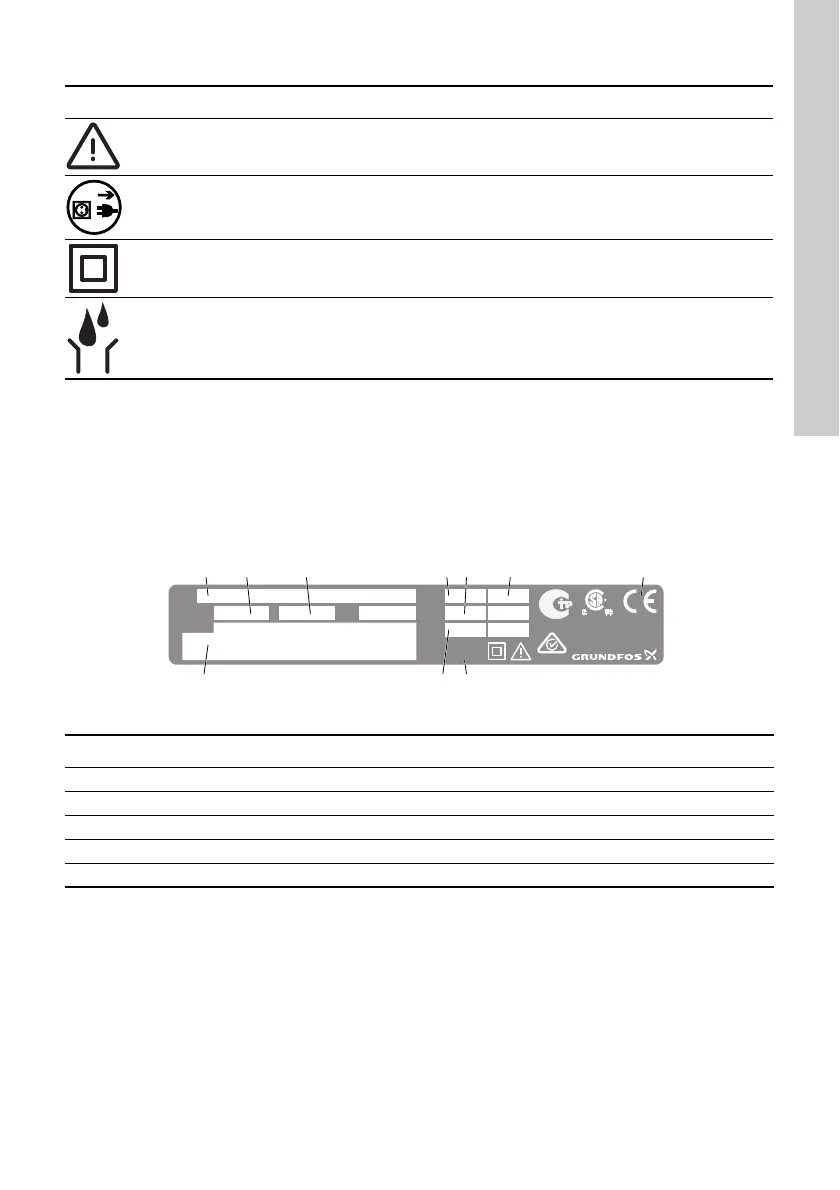

2.3 Symbols on the pump
2.4 Warranty
A guarantee claim in accordance with our general terms of sale and delivery is only valid if the following
requirements are fulfilled:
• The pump is used in accordance with the information within this manual.
• The pump is not dismantled or incorrectly handled.
• The maintenance is carried out by authorised and qualified personnel.
2.5 Nameplate
Fig. 1 Nameplate
Symbol Description
Indication of universally dangerous spot.
In case of emergency and prior to all maintenance work and repairs, take the mains plug out
of the mains supply!
The device complies with electrical safety class II.
Connection for deaeration hose at dosing head. If the deaeration hose is not correctly
connected, danger will arise due to possible leakage of dosing liquid!
TM04 8144 4313
P
QU
Type
Model
f
P
max
Imax
97694877
Made in France
N20683
NEMA 4X
psi
gphA l/h
Bar
W IP 65
Pos. Description Pos. Description
1 Type designation 6 Enclosure class
2 Voltage 7 Mark of approval, CE mark, etc.
3 Frequency 8 Country of origin
4 Power consumption 9 Max. operating pressure
5 Max. dosing flow 10 Model
