2. Product description
2.1 GRUNDFOS Hydro 2000 F
GRUNDFOS booster sets Hydro 2000 F consist of a number of
pumps with all necessary fittings and a GRUNDFOS Control 2000
F mounted on a common base frame, all ready for installation.
A diaphragm tank must be included in the installation.

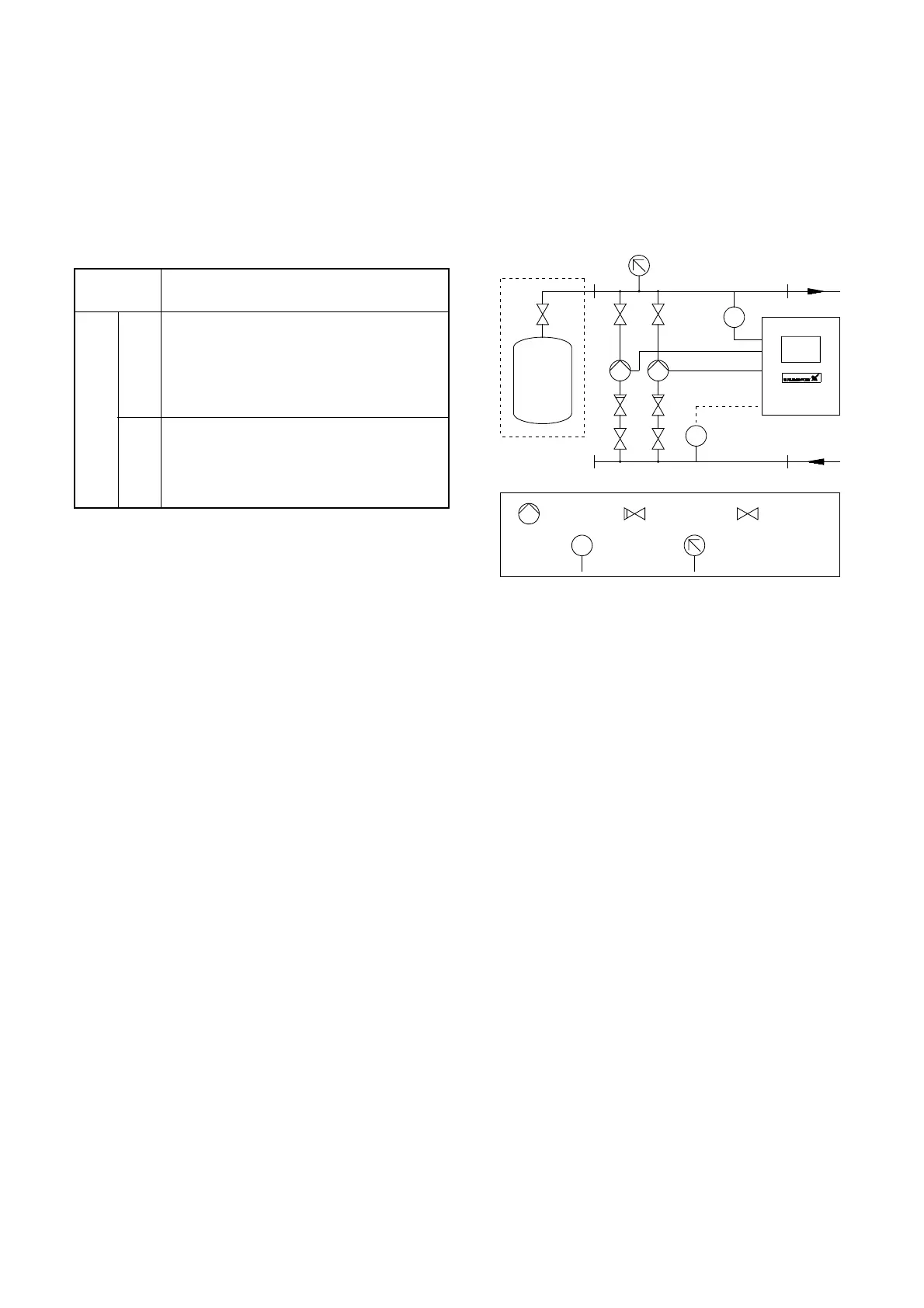

Fig. 1
TM01 1521 1799
PRESSURE
TRANSMITTER
VALVE
PFU 2000
PRESSURE GAUGE
NON-RETURN
VALVE
ISOLATING
PUMP
Control 2000
GRUNDFOS booster set Hydro 2000 F
1. General
1.1 Scope of these instructions
These installation and operating instructions apply to GRUND-
FOS booster sets Hydro 2000 F.
GRUNDFOS booster sets Hydro 2000 F are designed for the
transfer and pressure boosting of clean water in waterworks,
blocks of flats, hotels, industry, hospitals, schools, etc.
The Hydro 2000 F range includes two types of systems, i.e. MF,
and MFH.
1.2 Related documents
For some booster sets, the detailed information can be found in
the related documents.
• List of Control Parameters (factory configuration).
• Wiring diagram.
• Installation and operating instructions.
• Installation and operating instructions for the frequency con-
verter.
• Data booklet.
System
type
System function
Hydro 2000 F
MF
All pumps are full-size pumps.
One pump is operated via a frequency con-
verter. The other pumps are mains-operated
(on/off).
All pumps will be controlled by the frequency
converter in rotation.
MFH
Two pumps are half-size pumps. The other
pumps are full-size pumps.
The two half-size pumps are controlled by the
frequency converter in rotation, and the full-size
pumps are mains-operated (on/off).
