English (GB)
29
80

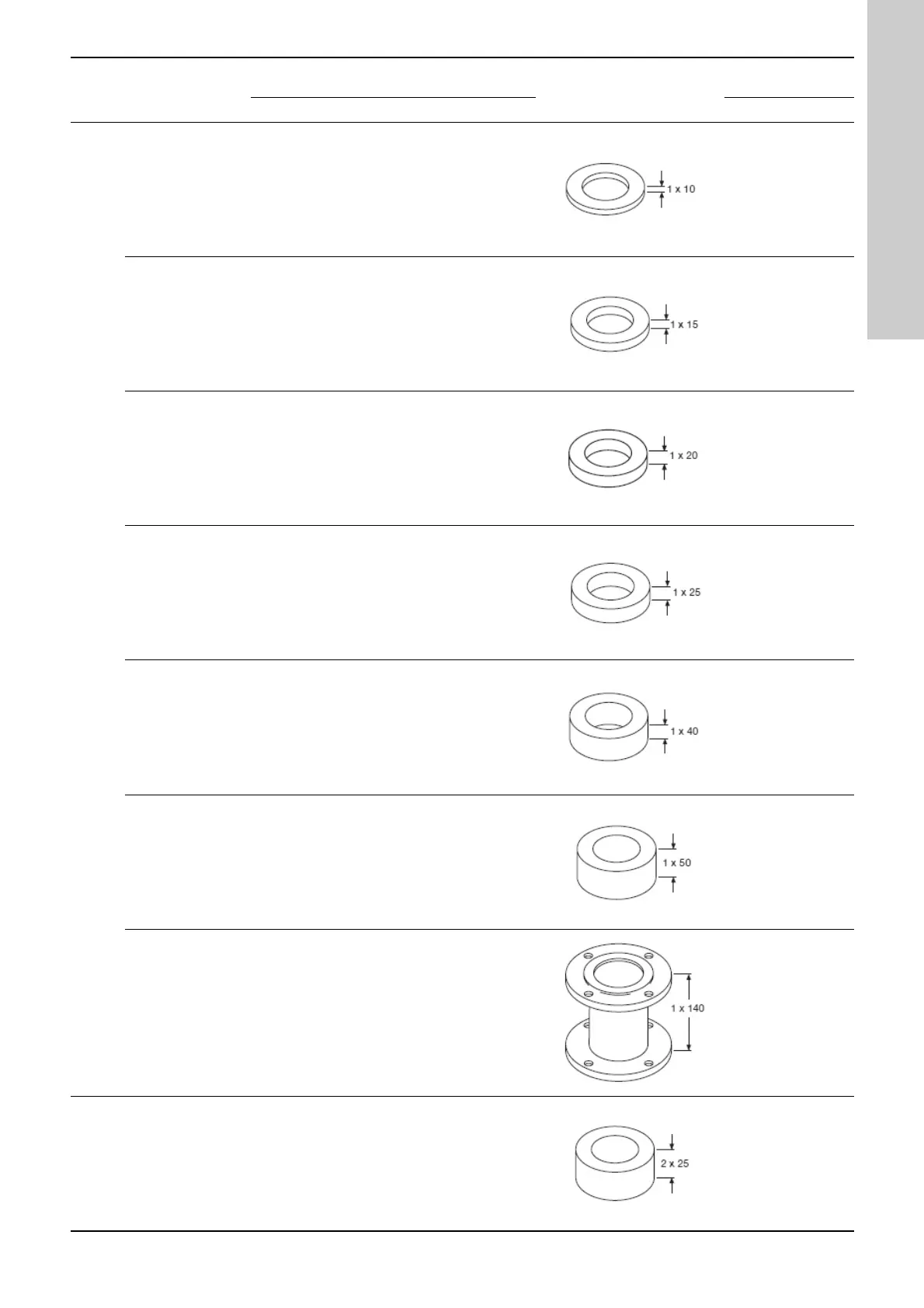

A80-10 1 x 10 127 138 150 160
TM05 4382 2212
569921 569821
A80-15 1 x 15 127 138 - -
TM05 4383 2212
569922 569822
A80-20 1 x 20 127 138 - -
TM05 4384 2212
569923 569823
A80-25 1 x 25 127 138 - -
TM05 4385 2212
569924 569824
A80-40 1 x 40 127 138 - -
TM05 4386 2212
569925 569825
A80-50 1 x 50 127 138 - -
TM05 4387 2212
569926 569826
A80-140 1 x 140 - - 150 160
TM05 4388 2212
569927 569827
100 A100-50 2 x 25 - - - -
TM05 4389 2212
96545610 96545610
DN Type
Height
[mm]
Diameter
[mm]
Pitch circle diameter
[mm]
Adapter
Product number
PN 6 PN 10 PN 6 PN 10 PN 6 PN 10
