14. Dimensions

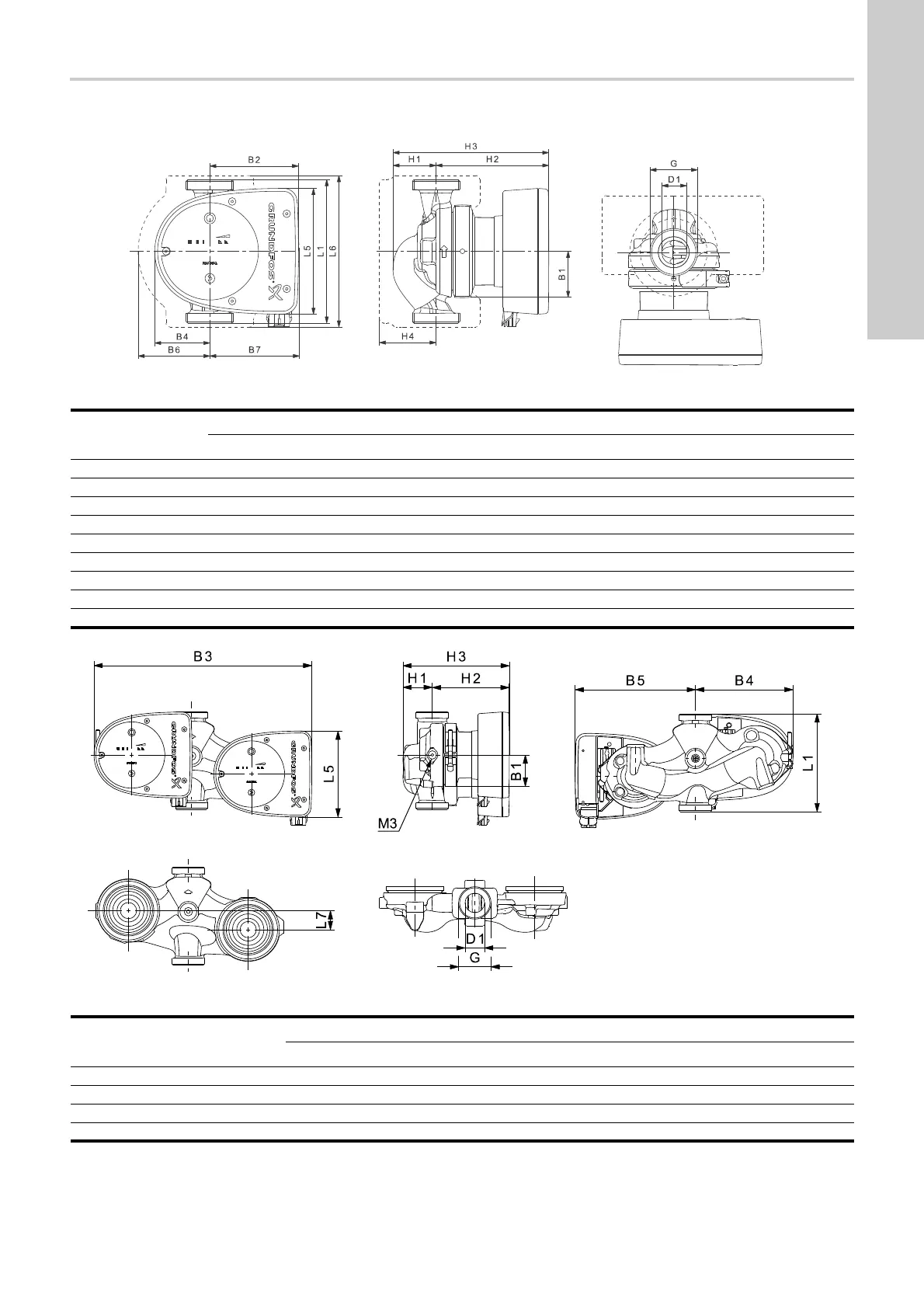

Fig. 25 Single-head pump dimensions (threaded version)

Fig. 26 Twin-head pump dimensions (threaded version)

TM05 5142 3512

Pump type

Dimensions [mm] (inch)

L1 L5 L6 B1 B2 B4 B6 B7 H1 H2 H3 H4 D1 G

MAGNA1 25-40 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2

MAGNA1 25-60 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2

MAGNA1 25-80 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2

MAGNA1 25-100 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2

MAGNA1 25-120 180 158 190 58 111 69 90 113 54 142 196 71 25 1 1/2

MAGNA1 32-40 180 158 190 58 111 69 90 113 54 142 196 71 32 2

MAGNA1 32-60 180 158 190 58 111 69 90 113 54 142 196 71 32 2

MAGNA1 32-80 180 158 190 58 111 69 90 113 54 142 196 71 32 2

MAGNA1 32-100 180 158 190 58 111 69 90 113 54 142 196 71 32 2

TM05 5201 3512

Pump type

Dimensions [mm] [inch]

L1 L5 L7 B1 B3 B4 B5 H1 H2 H3 D1 G M3

MAGNA1 D 32-40 180 158 35 58 400 179 221 54 142 196 32 2 1/4

MAGNA1 D 32-60 180 158 35 58 400 179 221 54 142 196 32 2 1/4

MAGNA1 D 32-80 180 158 35 58 400 179 221 54 142 196 32 2 1/4

MAGNA1 D 32-100 180 158 35 58 400 179 221 54 142 196 32 2 1/4
