Function Tree
User Access (4321)
Eng Access

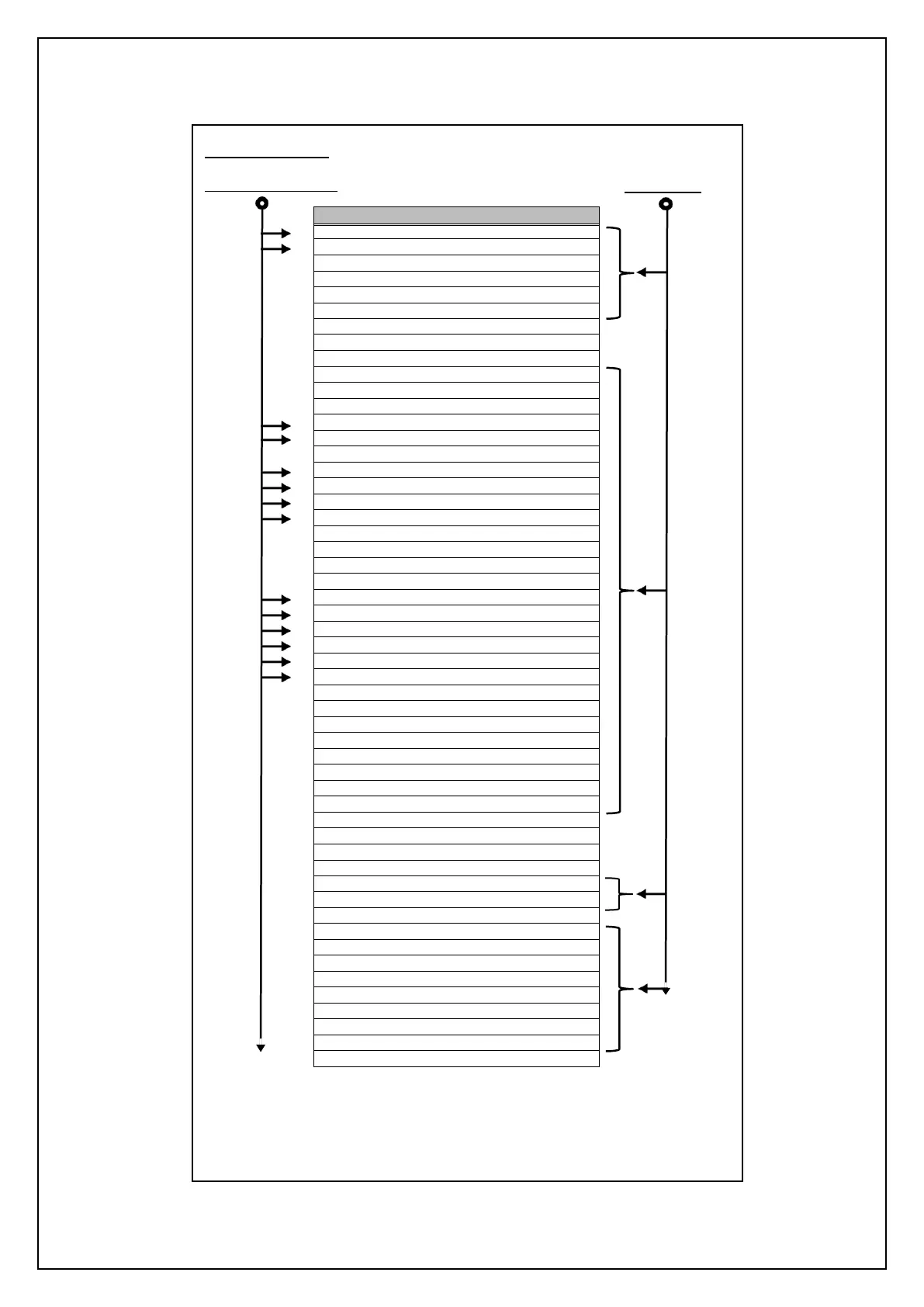

7.6 Function Tree.
Page Parameter
1 Current Time
2 Current Date
3 Service Reminder
4 No. of Pumps
5 Pump Anti-seize
6 Pump Anti-seize Period
7 Pump FLC
8 Pump Over Current Threshold
9 Pump Under Current Threshold
10 Pump Trip delay
11 Pressure Alarm delay
12 Low Water Reset Time
13 System 1 Set Pressure
14 System 1 Differential Pressure
15 Common Differential
16 System 1 Low Pressure Alarm ON
17 System 1 Low Pressure Alarm OFF
18 System 1 High Pressure Alarm ON
19 System 1 High Pressure Alarm OFF
20 System 1 Pump Hold OFF Time
21 System 1 Pump Run ON Time
22 System 1 Flood Protection
23 System 1 Excessive Consumption
24 System 2 Set Pressure
25 System 2 Differential Pressure
26 System 2 Low Pressure Alarm ON
27 System 2 Low Pressure Alarm OFF
28 System 2 High Pressure Alarm ON
29 System 2 High Pressure Alarm OFF
30 System 2 Pump Hold OFF Time
31 System 2 Pump Run ON Time
32 System 2 Flood Protection
33 System 2 Excessive Consumption
34 Pump 1 Total Run Time (Resetable)
35 Pump 2 Total Run Time (Resetable)
36 Pump 1 Starts (Resetable)
37 Pump 2 Starts (Resetable)
38 Pump 1 Last Run Date
39 Pump 2 Last Run Date
40 System 1 Pump Runtime Past Hour
41 System 2 Pump Runtime Past Hour
42 System 1 Pump Starts Past Month (Resetable)
43 System 2 Pump Starts Past Month (Resetable)
44 Software Version
45 Fault Log (View and Clear History)
46 Last Service date (Resetable)
47 Programmable Output 1
48 Programmable Output 2
49 Programmable Output 3
50 Pump 1 Test (Press and Hold)
51 Pump 2 Test (Press and Hold)
52 Valve Test (Open/Close)
