Grundfos SMART Digital XL DDA 60-10 User Manual

English (GB)
12
4.2 Technical data for CIP (Clean-In-Place) applications
Short-term temperature limits for max. 40 minutes at max. 2 bar operating pressure:
4.2.1 Dimensions

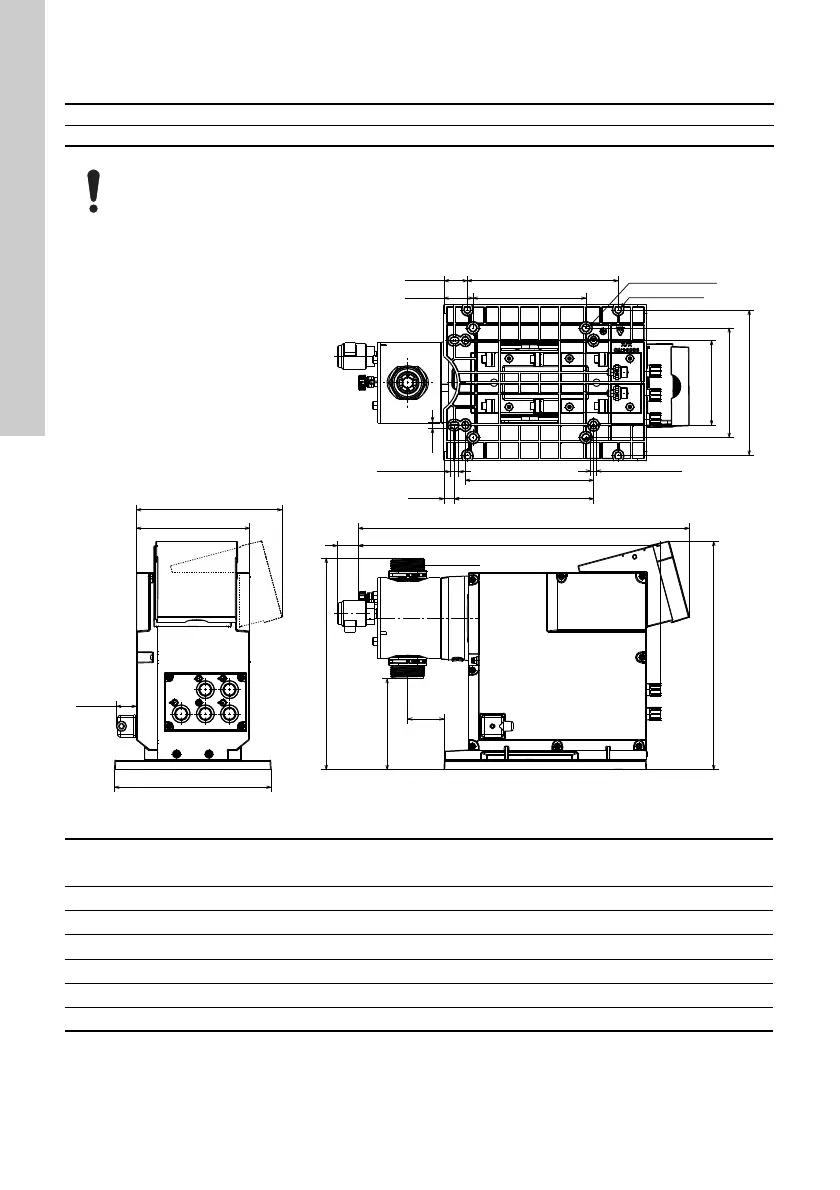

Fig. 5 Dimensional sketch
Max. liquid temperature for dosing head material PVDF [°C] 85
Max. liquid temperature for dosing head material stainless steel [°C] 120
The dosing head material Polyvinyl chloride (PVC) must not be used in CIP applications.
TM06 7049 3818
C
B
283.5
G 5/4
A1A2
D
A
140.5
25
194
183.5
4 x Ø 7
4 x Ø 9
187
159
140
29
36
172.513
105 136 180
7
10
Ø 7
Pump type
Dosing head
material
A
[mm]
A1
[mm]
A2
[mm]
B
[mm]
C
[mm]
D
[mm]
DDA 60-10 PVC/PV 410 374 26 263 112 45
DDA 60-10 SS 405 364 - 263 112 45
DDA 120-7 PVC/PV 410 374 26 276.5 97 45
DDA 120-7 SS 405 364 - 276.5 97 45
DDA 200-4 PVC/PV 410 374 26 287.5 88 45
DDA 200-4 SS 405 364 - 287.5 88 45

Grundfos SMART Digital XL DDA 60-10 Specifications

General

Max Flow Rate	60 l/h
Max Pressure	10 bar
Control Type	Digital
Protection Class	IP65
Power Supply	50/60 Hz
Turn-down ratio	1:3000
Approvals	CE
Operating Temperature	0°C to +45°C
