Grundfos SMART Digital XL DDA 60-10 User Manual

English (GB)
9

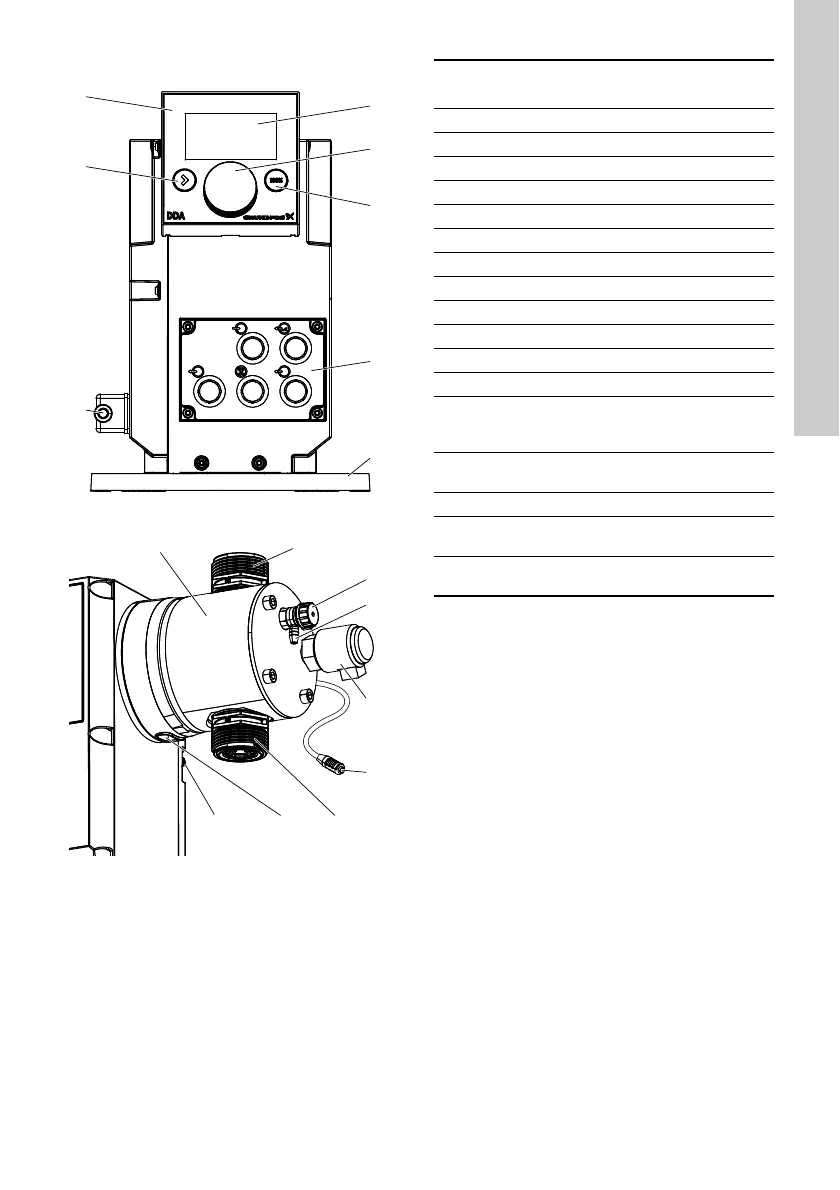

3.6 Product overview
Fig. 3 Front view of the pump
Fig. 4 Dosing head
TM06 7047 2916TM06 7048 2916
1
8
7
2
3
4
5
6
10
11
9
12
13
14
151617
Pos. Description
See
section
1 Control cube
2 Graphic LC display 7.2.2
3 Click wheel 7.1
4 [100%] key 7.1
5 Signal inputs/outputs 5.3
6 Mounting plate
7 Mains connection
8 [Start/stop] key 7.1
9 Dosing head
10 Valve, outlet side
11 Deaeration valve
12 Connection, deaeration hose
13
Pressure switch of diaphragm
leakage detection (optional for
DDA-AR)
14
FlowControl sensor plug (only
DDA-FCM)
15 Valve, inlet side
16
Drain opening in case of
diaphragm leakage
17
Signal connection (FlowControl
or diaphragm leakage detection)

Grundfos SMART Digital XL DDA 60-10 Specifications

General

Max Flow Rate	60 l/h
Max Pressure	10 bar
Control Type	Digital
Protection Class	IP65
Power Supply	50/60 Hz
Turn-down ratio	1:3000
Approvals	CE
Operating Temperature	0°C to +45°C
