English (GB)
25

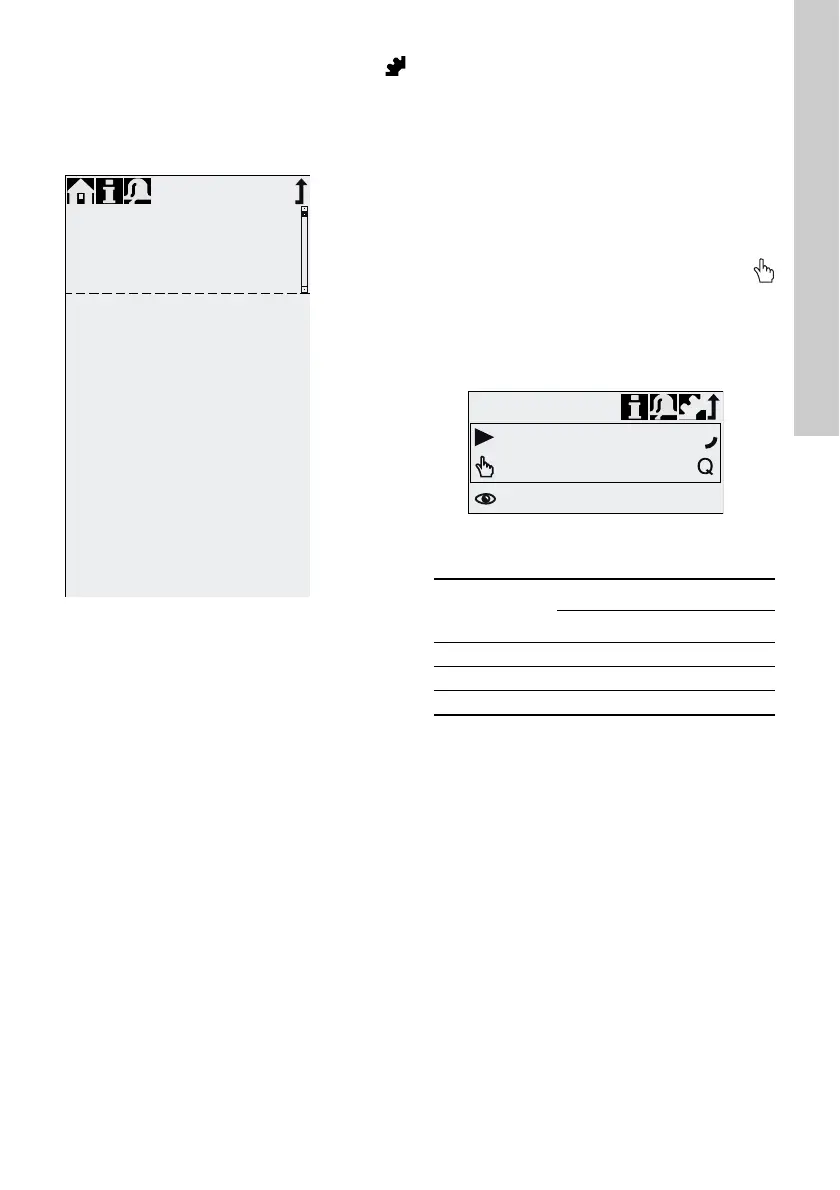

7.3.4 Setup
The "Setup" main menu contains menus for
pump configuration. These menus are
described in the following sections.
Check all pump settings after any change in the
"Setup" menu.
* These submenus are only displayed for specific
default settings and control variants. The
contents of the "Setup" menu also vary
depending on the operation mode.
7.4 Operation modes
Six different operation modes can be set in the
"Setup > Operation mode" menu.
• Manual, see section 7.4.1
• Pulse, see section 7.4.2
• Analog 0-20mA, see section 7.4.3
Analog 4-20mA, see section 7.4.3
• Batch (pulse-based), see section 7.4.4
• Dosing timer cycle, see section 7.4.5
• Dosing timer week, see section 7.4.6
7.4.1 Manual
In this operation mode, the pump constantly
doses the dosing flow set with the click wheel.
The dosing flow is set in l/h or ml/h in the "Operation"
menu. The pump automatically switches between the
units. Alternatively, the display can be reset to US
units (gph). See section 7.15 Display setup.
Fig. 18 Manual mode
The setting range depends on the pump type:
* When the "SlowMode" function is active, the
maximum dosing flow is reduced, see section
4.1 Technical data.
TM06 7075 3418
Setup
English >
Pulse >
❑
>
35.0 l
46:30
>
>
Actual flow >
Off >
❑
❑
>
>
❑
❑
>
❑
Off >
>
>
>
>
>
Language
Operation mode
Pulse memory*
Analog scaling
Batch volume*
Dosing time[mm:ss]*
Dosing timer cycle*
Dosing timer week*
Analog output
SlowMode
Stop after power failure
FlowControl active*
FlowControl*
Pressure monitoring*
AutoFlowAdapt*
Auto deaeration
Calibration
Diaphragm leak. detect.*
Key lock
Display
Time+date
Bus
Inputs/Outputs
Basic settings
Section
6.3
7.4
7.4.2
7.4.3
7.4.4
7.4.4
7.4.5
7.4.6
7.5
7.6
7.7
7.8
7.8
7.9
7.11
7.12
6.5
7.13
7.14
7.15
7.16
7.17
7.18
7.19
TM06 7077 2916
Type
Setting range*
[l/h] [gph]
DDA 60-10 0.075 - 60 0.0197 - 15.8
DDA 120-7 0.15 - 120 0.04 - 32
DDA 200-4 0.25 - 200 0.066 - 52.8
Operation
38.4
l/h
Manual 38.4l/h
