Grundfos SMART Digital XL DDA 60-10 User Manual

English (GB)
7

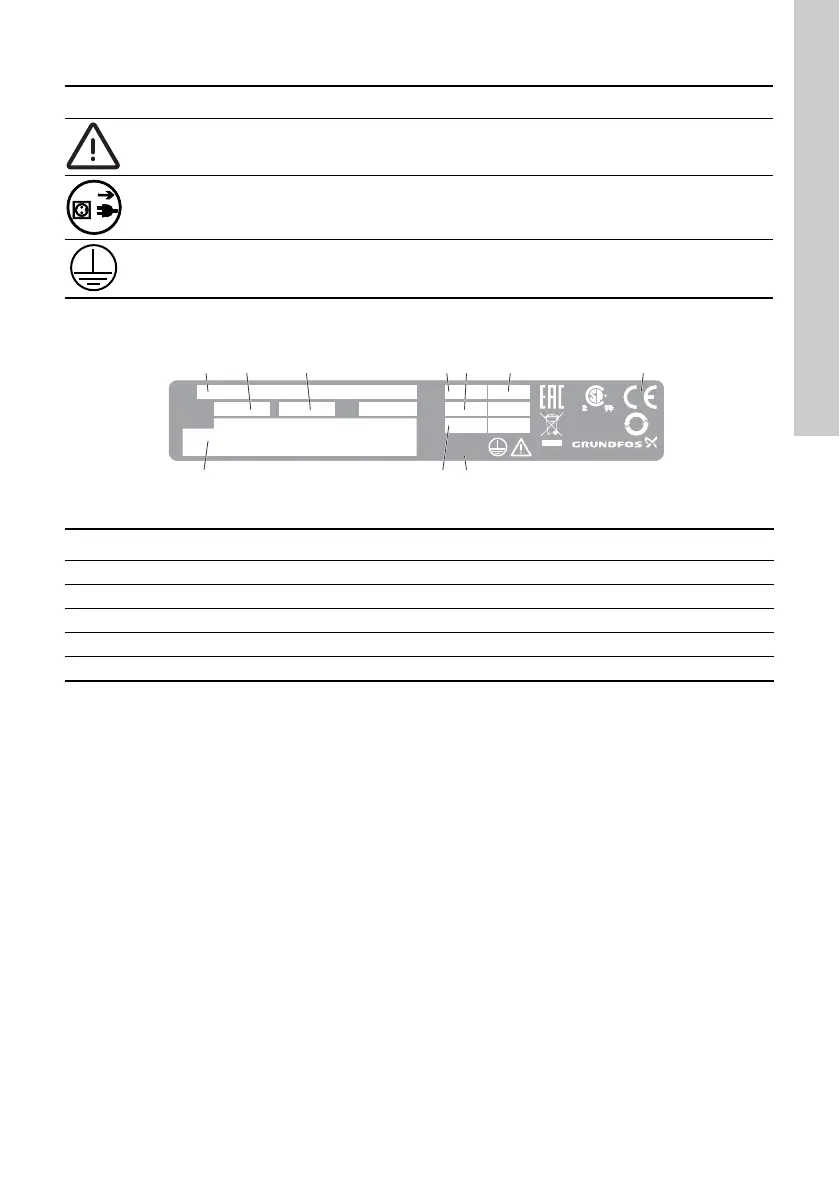

3.3 Symbols on the pump
3.4 Nameplate
Fig. 2 Nameplate
Symbol Description
Indication of universally dangerous spot.
In case of emergency and prior to all maintenance work and repairs, take the mains plug out
of the power supply!
The device complies with electrical safety class I.
TM06 7046 3418
Pos. Description Pos. Description
1 Type designation 6 Enclosure class
2 Voltage 7 Marks of approval
3 Frequency 8 Country of origin
4 Power consumption 9 Max. operating pressure
5 Max. dosing flow 10 Model
P
QU
Type
Model
f
P
max
Imax
99140620
Made in France
psi
gphA l/h
Bar
W IP 65
'tdϳϲϯϮϳWĮŶnjƚĂů'ĞƌŵĂŶLJ
NEMA 4X
psi
gphA l/h
Bar
W IP 65
12 3 45 6 7
8910
10

Grundfos SMART Digital XL DDA 60-10 Specifications

General

Max Flow Rate	60 l/h
Max Pressure	10 bar
Control Type	Digital
Protection Class	IP65
Power Supply	50/60 Hz
Turn-down ratio	1:3000
Approvals	CE
Operating Temperature	0°C to +45°C
