English (GB)
13
5. Assembly and installation
5.1 Pump assembly
5.1.1 Requirements
• The installation location must be protected from
rain, humidity, condensation, direct sunlight and
dust.
• The installation location must have sufficient
lighting to ensure safe operation.
• Observe the permissible ambient conditions. See
section 4.1 Technical data.
• The mounting surface must be stable.
• The mounting plate must be mounted horizontally
e.g. on a tank.
• Dosing must flow upwards vertically.
5.1.2 Aligning and installing the mounting plate
The mounting plate can be used as a drill template,
please see fig. 5 for drill hole distances.
1. Indicate drill holes.
2. Drill holes.
3. Secure mounting plate using four screws on a
bracket or a tank.
5.1.3 Installing the pump on the mounting plate
1. Remove the locking screws from their transport
position on the mounting plate.
2. Place the pump on the mounting plate support
clamps and slide it in as far as possible.
– The mounting plate moves into the final
position when you tighten the locking screws.
3. Carefully screw in and tighten the 2 horizontal
locking screws using a torque wrench.
– Wrench size: TORX PLUS 15 IP
– Torque [Nm]: 1.7 (+/- 0.2)

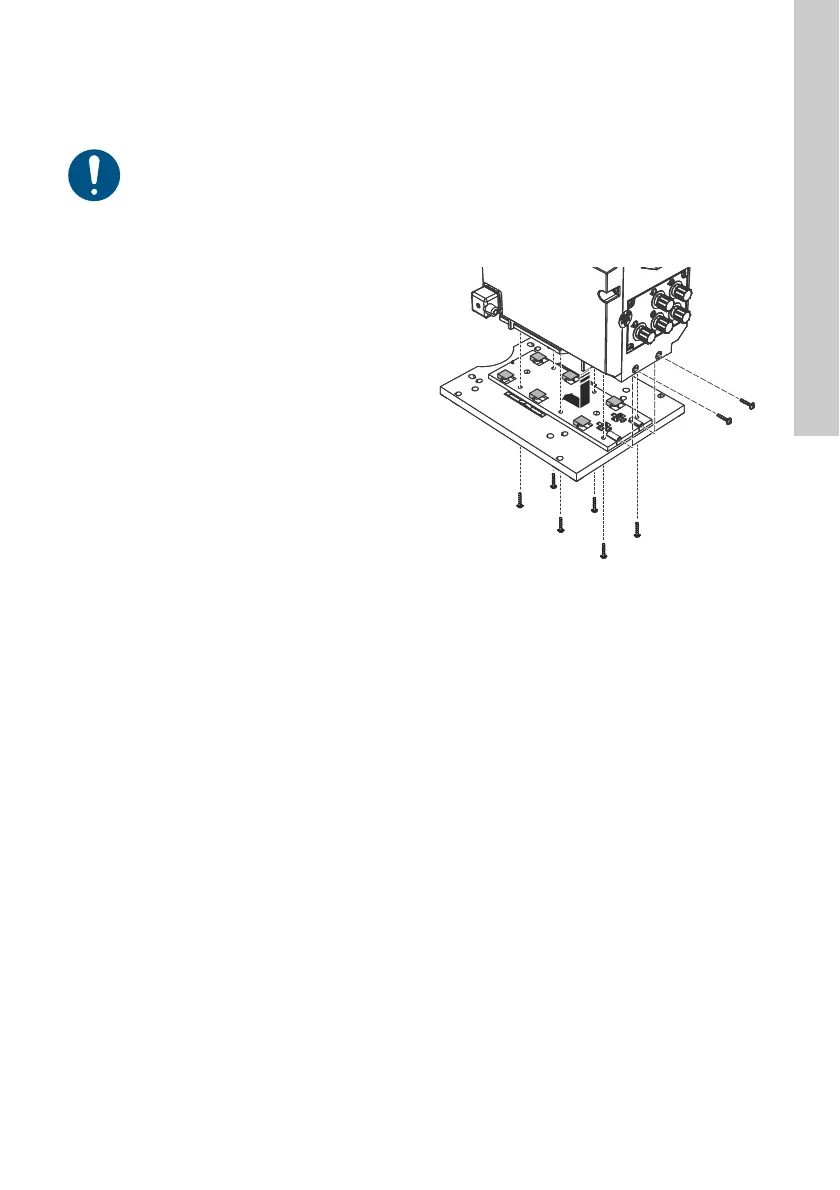

Fig. 6 Installing the pump on the mounting
plate
4. For applications where the mounting surface
vibrates, or if the pump is installed in a system
during transport, secure the pump on the
mounting plate with the 6 vertical safety screws
using a torque wrench.
– Wrench size: TORX PLUS 15 IP
– Torque [Nm]: 1.7 (+/- 0.2)
Install the pump in such a way that the
plug can easily be reached by the operator
during operation. This will enable the
operator to separate the pump from the
power supply quickly in case of
emergency.
TM06 7050 3418
