Grundfos SMART Digital XL DDA 60-10 User Manual

English (GB)
42

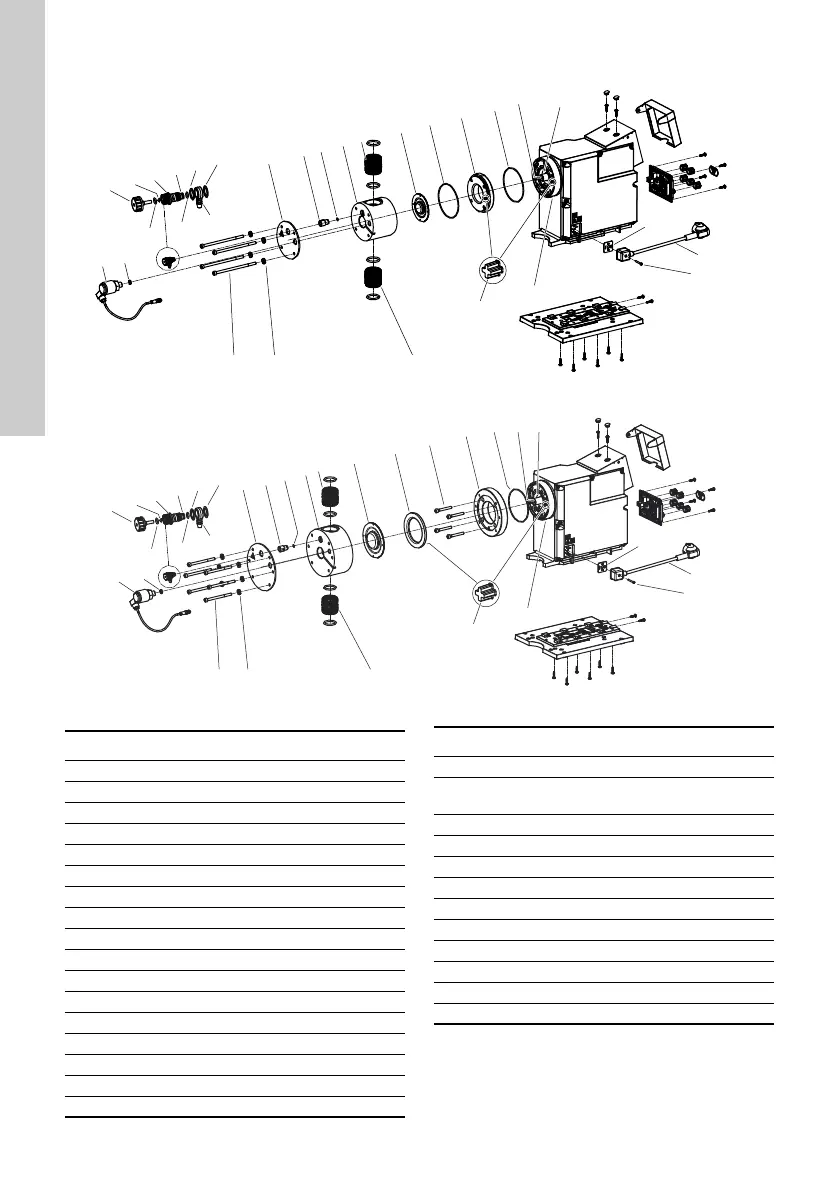

8.4.1 Service overview
Fig. 44 DDA 60-10
Fig. 45 DDA 120-7 / DDA 200-4
TM06 7119 4718TM06 7678 4718
8
11
2a
2
2d
3
4
7
5
5a
5b
6a
6
9
9a
6b
10
13a
13b
13
12
1
1a
1e
1g
1b
1c
1d
1f
1h
8
11
2a
2
2b
2c
3
4
7
5
5a
5b
6a
6
9
9a
6b
10
13a
13b
13
12
1
1a
1e
1g
1b
1c
1d
1f
1h
Pos. Components
1 Deaeration screw
1a, 1e O-ring
1b Valve ball
1c Valve housing
1d Groove for O-ring
1f, 1h Flat gasket
1g Hose nipple
2 Flange
2a, 2d O-ring
2b Screws
2c Intermediate ring
3 Diaphragm
4 Valve on outlet side
5 Dosing head
5a Double nipple
5b O-ring
6Screws
6a Cover plate (plastic dosing heads only)
6b
Washers (stainless steel dosing heads
only)
7 Valve on inlet side
8 Drain opening
9 DLD sensor
9a Gasket
10 Safety diaphragm
11 Extension piece
12 Alignment pin
13 Mains cable
13a Safety screw
13b Gasket
Pos. Components

Grundfos SMART Digital XL DDA 60-10 Specifications

General

Max Flow Rate	60 l/h
Max Pressure	10 bar
Control Type	Digital
Protection Class	IP65
Power Supply	50/60 Hz
Turn-down ratio	1:3000
Approvals	CE
Operating Temperature	0°C to +45°C
