7.3 Main menus
The main menus are displayed as symbols at the top
of the display. The currently active main menu is
displayed as text.
7.3.1 Operation
Status information such as the dosing flow,
selected operation mode and operating state
is displayed in the "Operation" main menu.
7.3.2 Info
You can find the date, time and information
about the active dosing process, various
counters, product data and the service system status
in the "Info" main menu. The information can be
accessed during operation.
The service system can also be reset from here.
Counters
The "Info > Counters" menu contains the following
counters:
7.3.3 Alarm
You can view alarms and warnings in the
"Alarm" main menu.
Some alarms are automatically acknowledged by
opening the "Alarm" main menu, which can cause
the pump to start.
Up to 10 warnings and alarms, together with their
date, time and cause, are listed in chronological
order. If the list is full, the oldest entry will be
overwritten, see section 9. Faults.

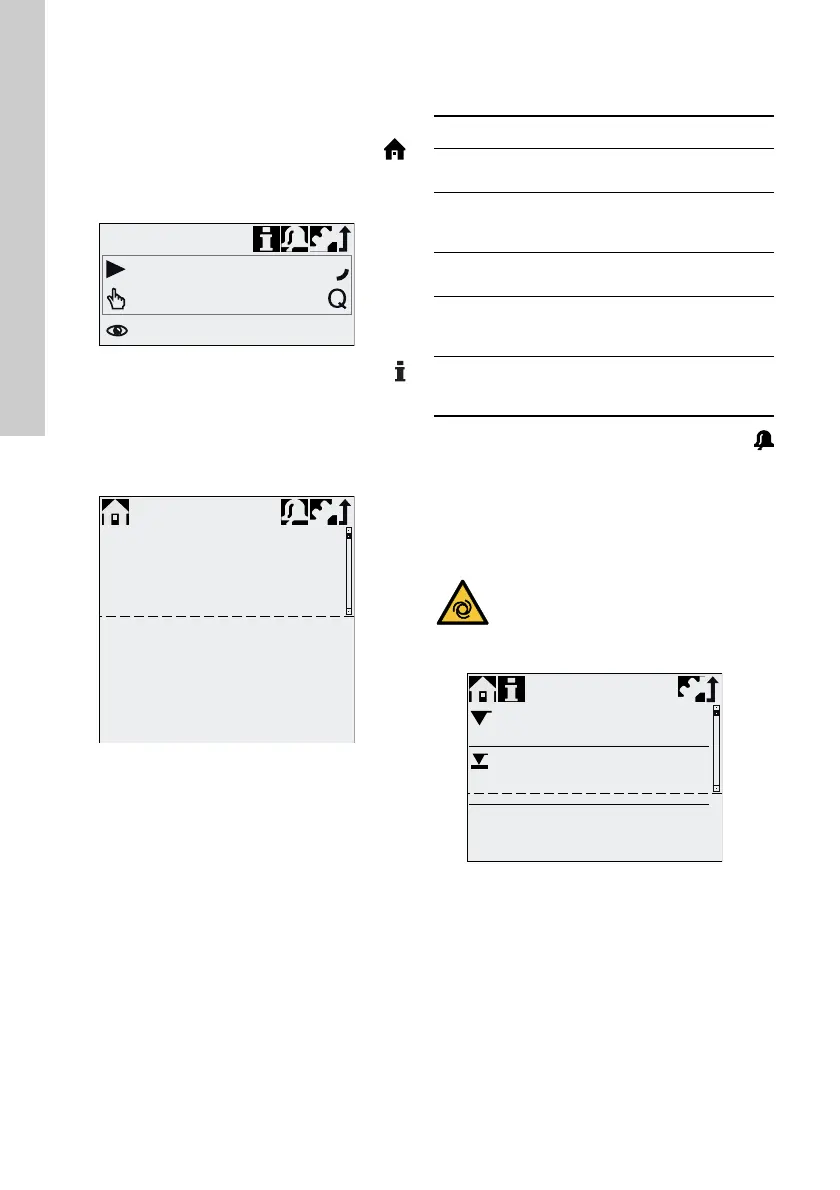

TM06 7069 2916TM06 7071 2916
Operation
59.6
l/h
Manual
59.6l/h
Th
Backpressure
Counters
Service
ServiceKit
Reset service system
Software rev.
Motor Control
Hardware rev.
Serial no.:
Product no.:
Type Key:
Info
16.02.2017 12:34
10.0bar
>
-
Vx.xx
Vx.xx
Vx.xx
Counters Resettable
Volume
Total dosed volume [l] or US gallons
Yes
Operating hours
Accumulated operating hours (pump
switched on) [h]
No
Motor runtime
Accumulated motor runtime [h]
No
Strokes
Accumulated number of dosing
strokes
No
Power on/off
Accumulated frequency of switching
mains voltage on
No
CAUTION
Automatic startup
Minor or moderate personal injury
- Before entering the "Alarm" main menu,
make sure the pump is in operating
state "Stop".
TM06 7072 2916
Alarm
12.02.2017
12.02.2017
1
Empty
2
Low level
12:34
12:34
Delete alarm
messages
❑
To Next Page
