3. Machine Components
U-Trough Unloader

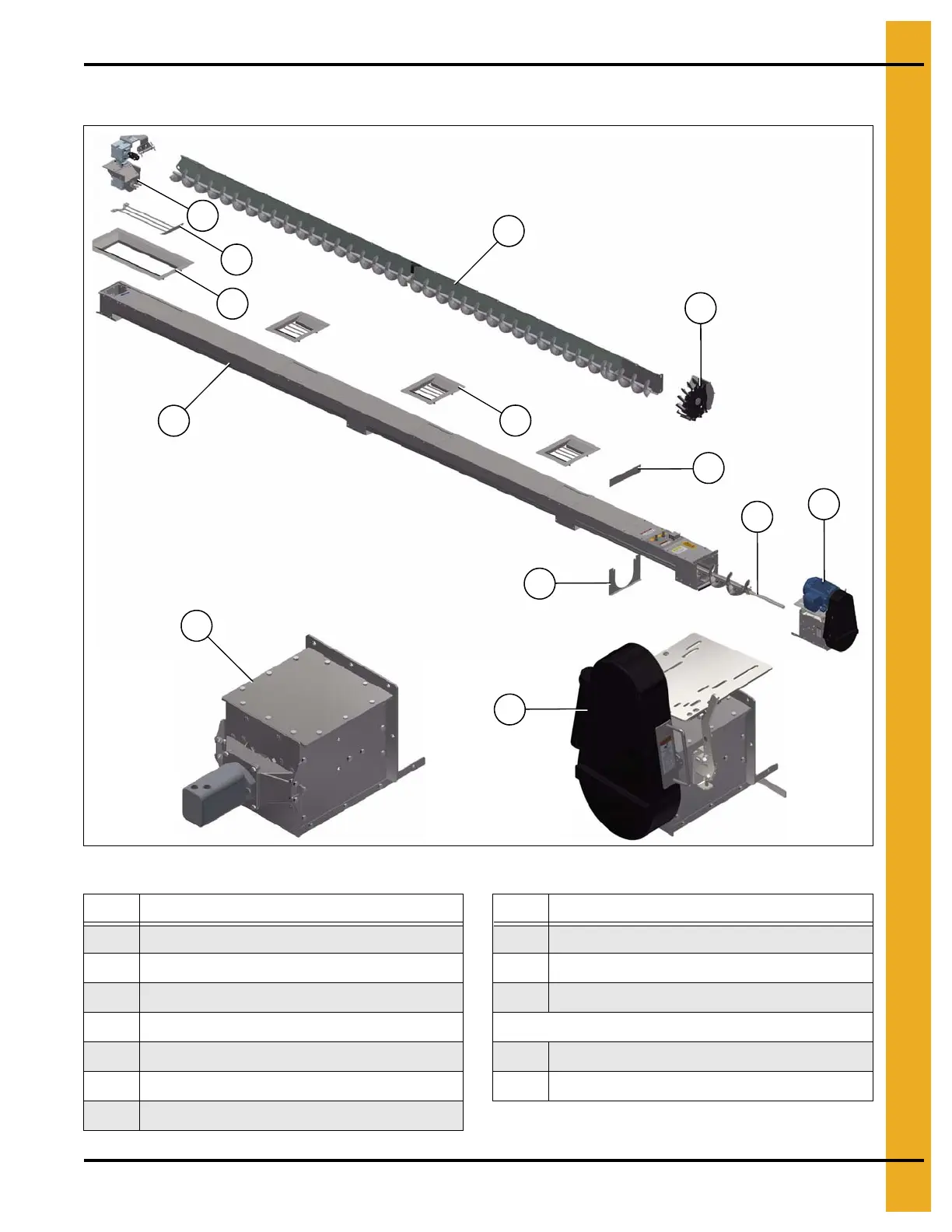

Figure 3A
Ref # Description Ref # Description
11 Center Gearbox Assembly 18 Bin Plate
12 Center Grate
19 Unloader Flight
13 Sweep (See detailed view on Page 16.) 20 Powerhead
14 Elevator Drive Wheel Assembly
Horizontal Powerhead Options
15 Center Floor Flange 35 Hydraulic (Motor Included)
16 U-Trough Unloader
36 Electric 18" Driven Pulley
17 Intermediate Floor Flange Assembly
13
12
15
11
14
16
17
18
18
19
20
35
36
NOTE: 48' bin diameter model shown.
