4. Installation
PNEG-2343 U-Trough Free Flow Unloading System 35
Horizontal Powerhead
Discharge Gate, Motor Plate Preparation
1. Slide the discharge gate assembly (84) onto the powerhead in the orientation as shown in
Figure 4AU
.
2. Remove the three bolts and nuts (83) shown along one edge of the powerhead (41) in the preparation
for installation of the motor plate assembly.

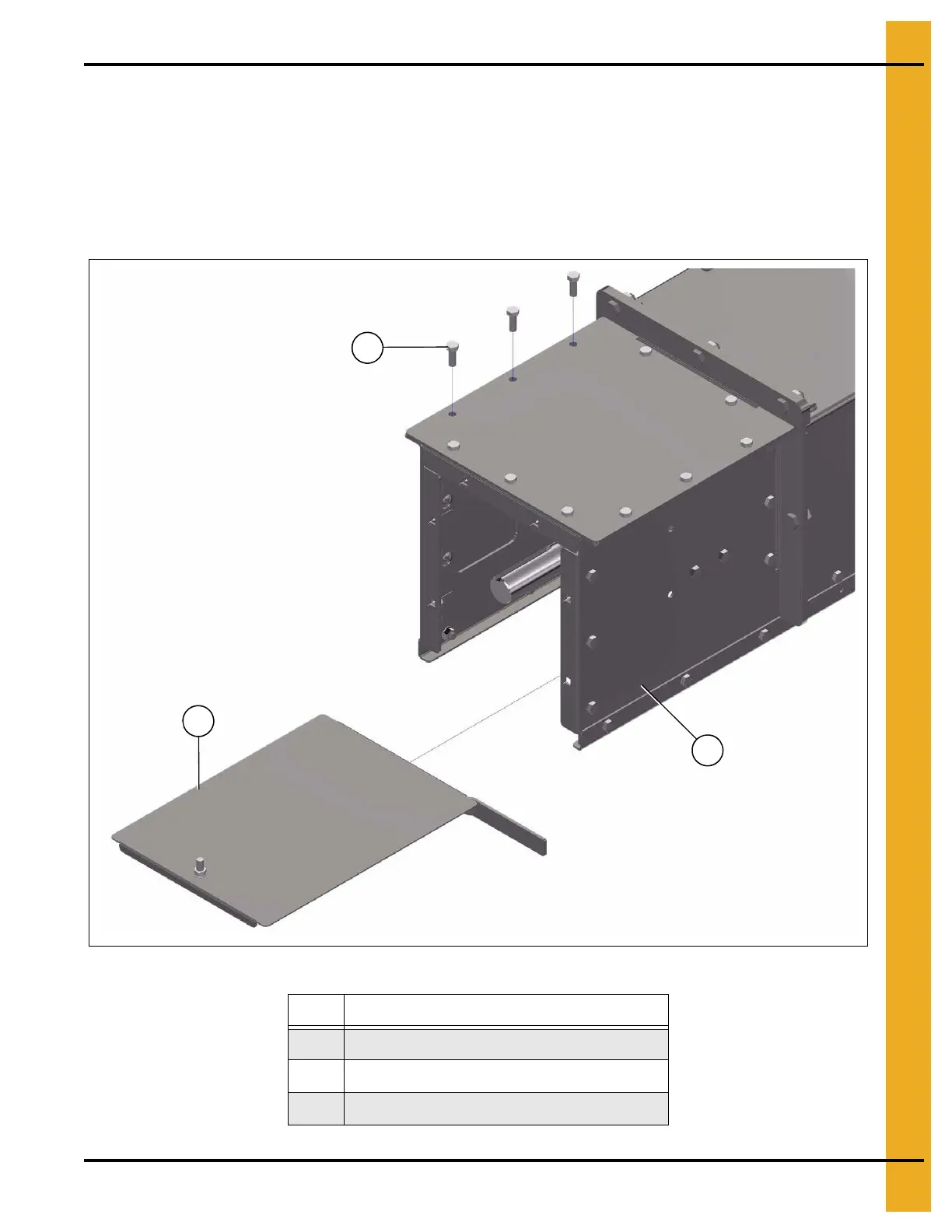

Figure 4AU
Ref # Description
41 Powerhead
83 Remove Hardware
84 Discharge Gate Assembly
