48 PNEG-2343 U-Trough Free Flow Unloading System

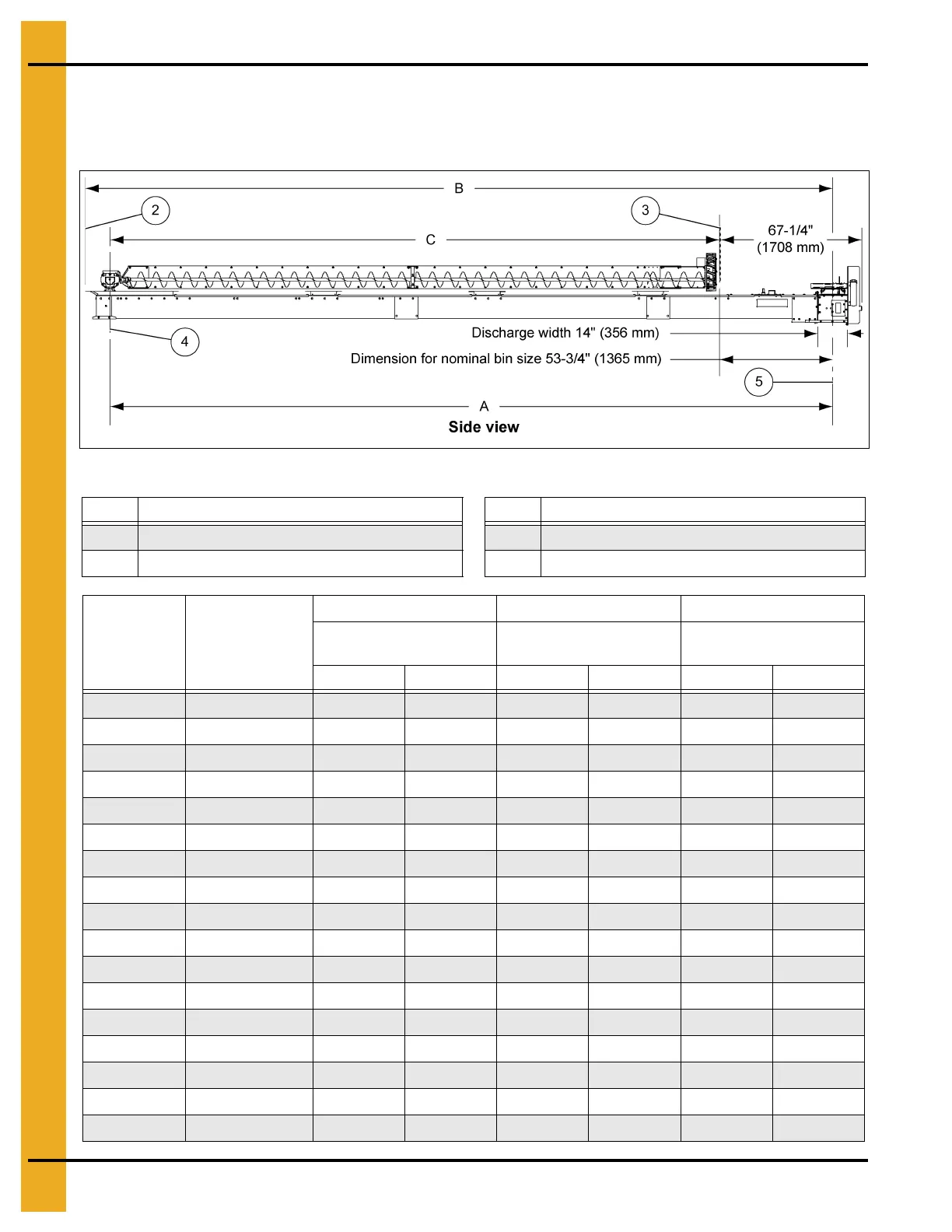

8. Dimensions
U-Trough Unloader for Nominal Bin Diameters
U-Trough System with Horizontal Powerhead
Figure 8A
Ref # Description Ref # Description
2 Extent of Floor Flange 4 Center of Bin
3 Bin Wall
5 Center of Discharge
Nominal Bin
Diameter
# of Intermediate
Gates
ABC
Center of Bin to
Center of Discharge
Unloader
Overall Length
Nominal Bin
Radius
Inches mm Inches mm Inches mm
18' 1 1.125 29 12.875 327 108 2743
19' 1 167.625 4258 179.375 4556 114 2896
21' 1 179.625 4562 191.375 4861 126 3200
24' 1 197.625 5020 209.375 5318 144 3658
27' 2 215.625 5477 227.375 5775 162 4115
30' 2 233.625 5934 245.375 6233 180 4572
33' 2 251.625 6391 263.375 6690 198 5029
36' 2 269.625 6848 281.375 7147 216 5486
39' 2 287.625 7306 299.375 7604 234 5944
42' 3 305.625 7763 317.375 8061 252 6401
44' 3 317.625 8068 329.375 8366 264 6706
48' 3 341.625 8677 353.375 8976 288 7315
50' 3 353.625 8982 365.375 9281 300 7620
54' 3 377.625 9592 389.375 9890 324 8230
57' 4 395.625 10049 407.375 10347 342 8687
60' 4 413.625 10506 425.375 10805 360 9144
66' 4 449.625 11420 461.375 11719 396 10058
